11-30 VersaMax® Modules, Power Supplies, and Carriers User's Manual – March 2003 GFK-1504K
11
IC200ALG326
Analog Output Module, 13 Bit Current, 8 Channels

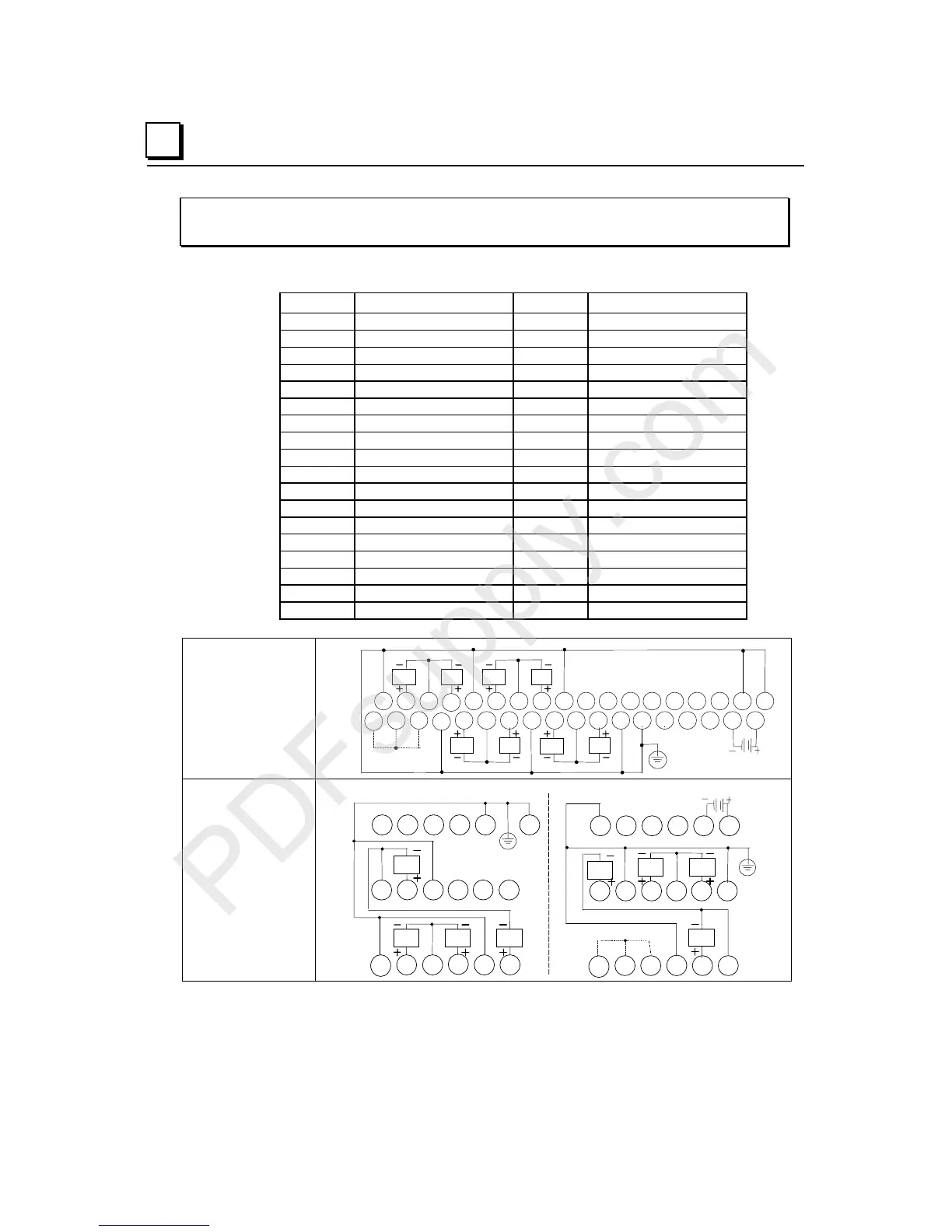

Field Wiring
Terminal Connection Terminal Connection
A1 Shield Termination Point B1 Range Jumper
A2 I OUT 5 B2 Jumper RET
A3 RET B3 Hold Jumper
A4 I OUT 6 B4 Shield Termination Point
A5 Shield Termination Point B5 I OUT 1
A6 I OUT 7 B6 RET
A7 RET B7 I OUT 2
A8 I OUT 8 B8 Shield Termination Point
A9 Shield Termination Point B9 I OUT 3
A10 No connection B10 RET
A11 No connection B11 I OUT 4
A12 No connection B12 Shield Termination Point
A13 No connection B13 Shield Termination Point
A14 No connection B14 No connection
A15 No connection B15 No connection
A16 No connection B16 No connection
A17 Shield Termination Point B17 DC-
A18 Shield Termination Point B18 DC+
Wiring Connections
for Carriers with Two
Rows of Terminals
IC200CHS002, 005
IC200CHS012, 015
AQ7 AQ8
JMP1 JMP2
AQ5
Shield Connections
AQ6
123456789 1112131415161718
1 2 3 4 5 6 7 8 9 11 12 13 14 15 16 17 1810
10
B
A
AQ3 AQ4AQ1 AQ2
Wiring Connections
for Carriers with
Three Rows of
Terminals
IC200CHS001, 022, 025
IC200CHS011
AQ4
AQ3
A
123
13
14 15 16
789 111210
456
Shield Connections
B
123
13
14 15 16 17 18
789 111210
456
AQ6
17 18
AQ5 AQ7
AQ8
JMP1 JMP2
AQ2
AQ1
Shield Connections
