GFK-1504K Chapter 11 Analog Output Modules 11-43
11
IC200ALG328
Analog Output Module, 13 Bit Current, 12 Channels

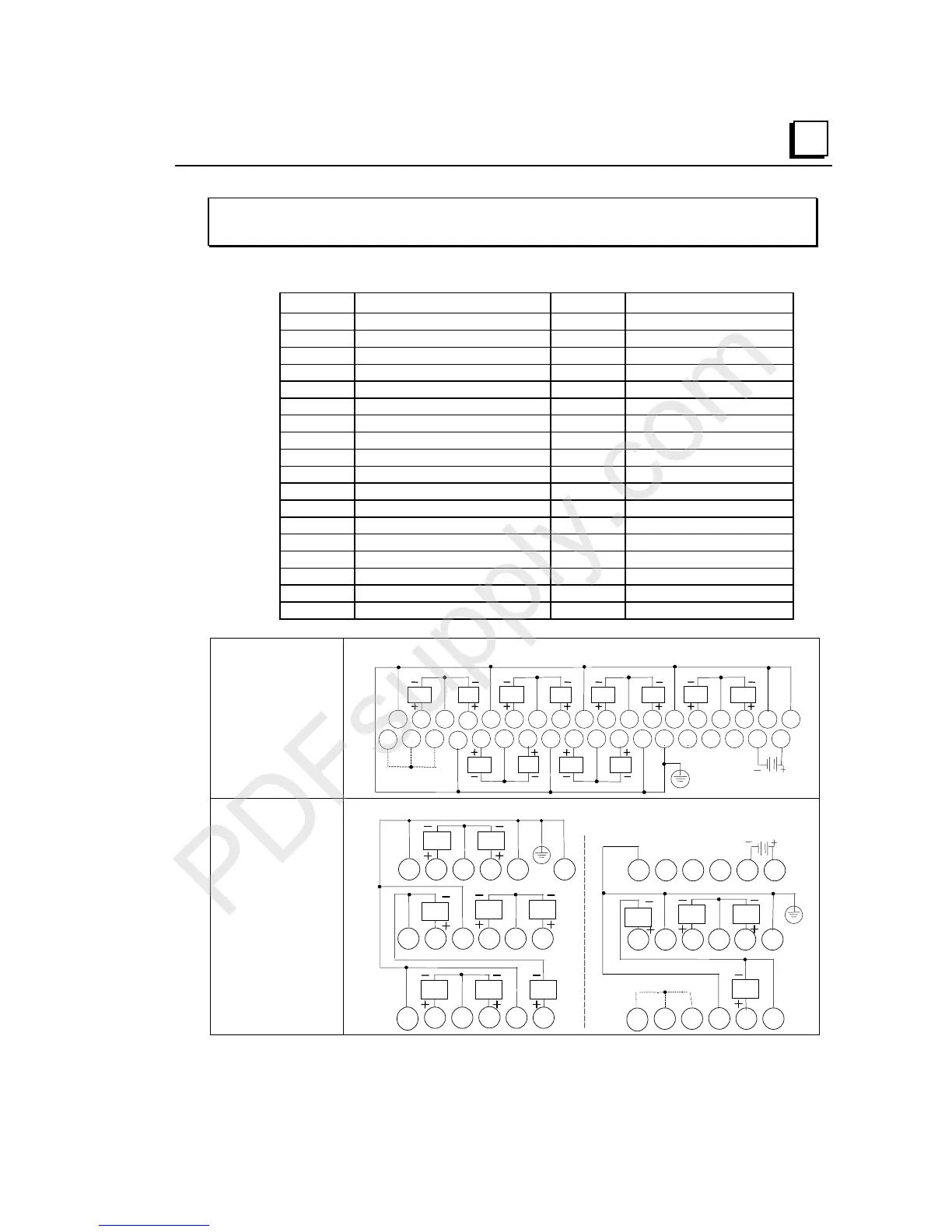

Field Wiring
Terminal Connection Terminal Connection
A1 Shield Termination Point B1 Range Jumper
A2 I OUT 5 B2 Jumper RET
A3 RET B3 Hold Jumper
A4 I OUT 6 B4 Shield Termination Point
A5 Shield Termination Point B5 I OUT 1
A6 I OUT 7 B6 RET
A7 RET B7 I OUT 2
A8 I OUT 8 B8 Shield Termination Point
A9 Shield Termination Point B9 I OUT 3
A10I OUT 9B10RET
A11 RET B11 I OUT 4
A12 I OUT 10 B12 Shield Termination Point
A13 Shield Termination Point B13 Shield Termination Point
A14 I OUT 11 B14 No connection
A15 RET B15 No connection
A16 I OUT 12 B16 No connection
A17 Shield Termination Point B17 DC-
A18 Shield Termination Point B18 DC+
Wiring Connections
for Carriers with Two
Rows of Terminals
IC200CHS002, 005
IC200CHS012, 015
AQ11
AQ12
AQ9
AQ10
AQ7 AQ8
JMP1 JMP2
AQ5
Shield Connections
AQ6
123456789 1112131415161718
123456789 111213141516171810
10
B
A
AQ3 AQ4AQ1 AQ2
Wiring Connections
for Carriers with
Three Rows of
Terminals
IC200CHS001, 022, 025
IC200CHS011
AQ4
AQ3
A
123
13
14 15 16
789 111210
456
Shield Connections
B
123
13
14 15 16 17 18
789 111210
456
AQ6
17 18
AQ5 AQ7
AQ8
JMP1 JMP2
AQ2
AQ1
Shield Connections
AQ10AQ9
AQ12AQ11
