GFK-1504K Chapter 12 Analog Mixed I/O Modules 12-21

IC200ALG432

Analog Mixed Module, 12 Bit +/-10VDC Input 4 Channels and Output 2 Channels

Scaling

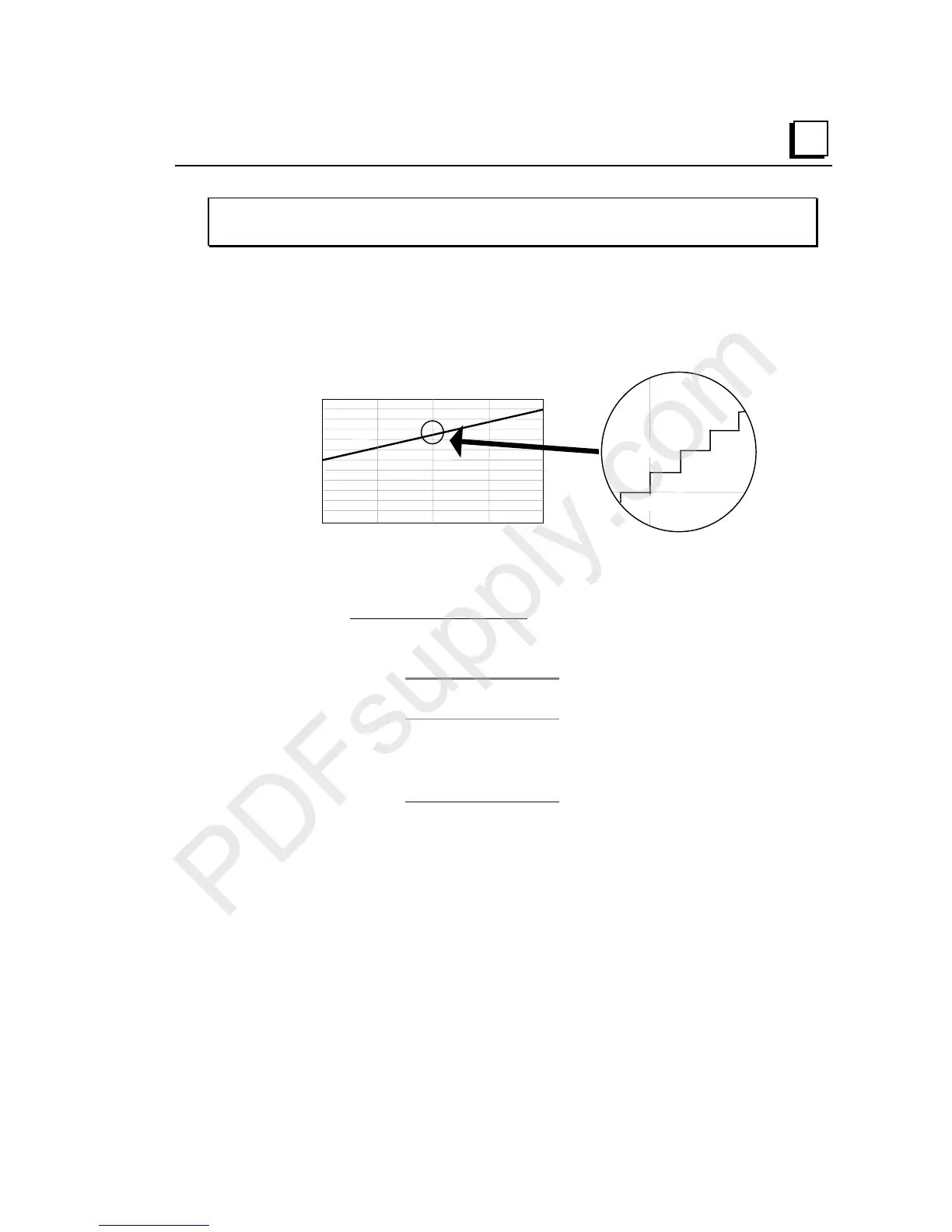

The following graphs show the relationship between the voltage applied at the field

terminals and the data values for the module.

Count vs Input Voltage

Volta

-2

-4

-6

-8

-10

-12

0 8192 16384 24576 32767

Count

5.1225V

5.125V

16408

16400

16392

16384

5.12V

5.1275V

8 counts =

2.5mV

The following equation can be used to calculate counts values:

Counts = (Voltage In) x (3200)

The count value is returned as a multiple of 8. A voltage that would return a count value

(using the above equation) which is not a multiple of 8 will return the next highest multiple

of 8.

Input

Voltage

Count

5.1200 16384

5.1210 16392

5.1220 16392

5.1225 16392
