12-22 VersaMax® Modules, Power Supplies, and Carriers User's Manual – March 2003 GFK-1504K

IC200ALG432

Analog Mixed Module, 12 Bit +/-10VDC Input 4 Channels and Output 2 Channels

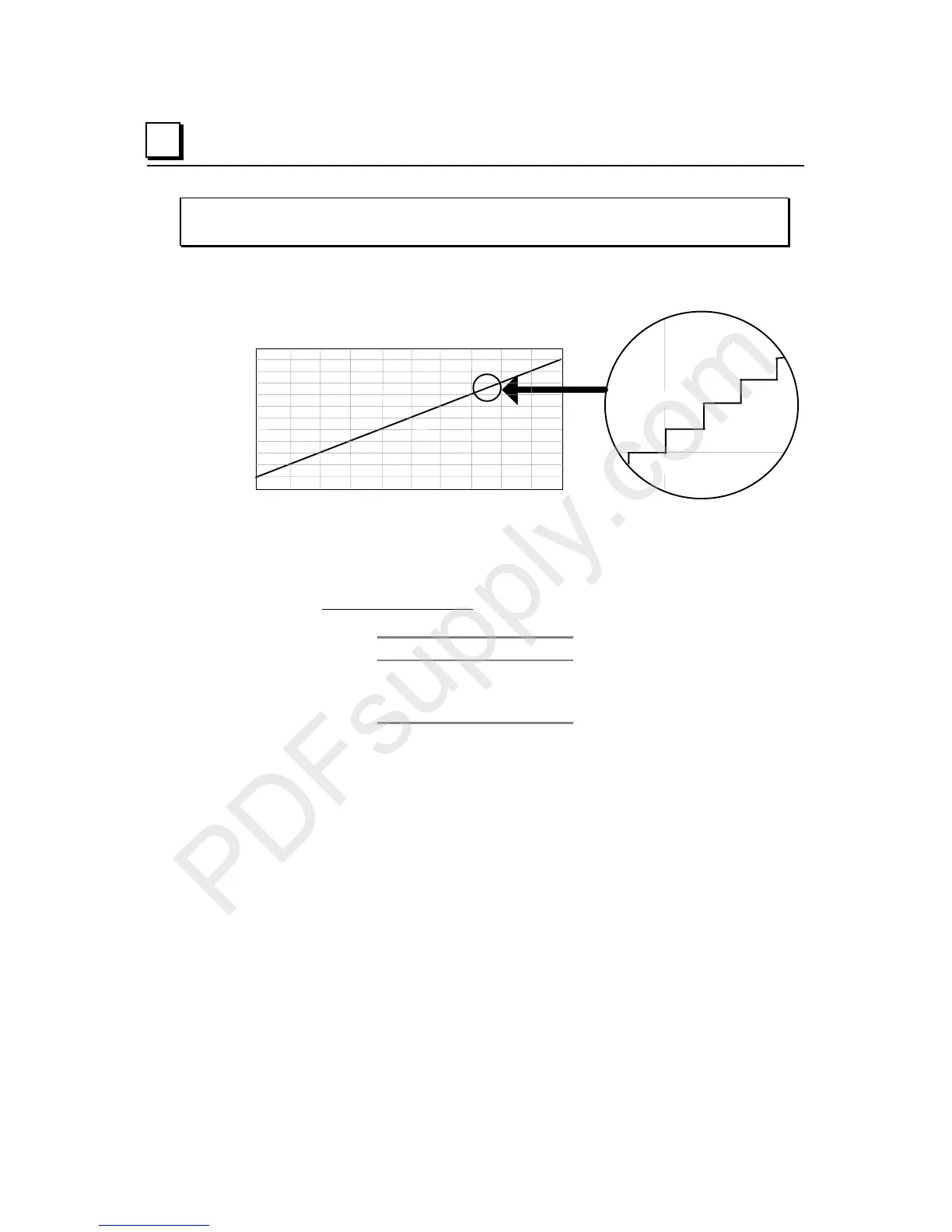

Count vs Output Voltage

-32000 -25600 --19200 12800 -6400 0 6400 12800 19200 25600 32000

-2

-6

-8

-10

-12

Count

Voltage

5.0150V

5.0200V

16064

16048

16032

16016

5.0100V

5.0250V

16 counts

= 5mV

Voltage can be calculated using the following equation:

Vout = ( (analog counts x 20.5) / 65535 )

The count value must be a multiple of 16. If the module receives a count value that is not a

multiple of 16, it rounds the value down to the closest multiple of 16. For example:

Count Voltage

16032 5.0150V

16040 5.0150V

16048 5.0200V
