GE VersaMax - Page 430

GFK-1504K Chapter 13 Mixed Discrete/High-speed Counter Module 13-7
13
IC200MDD841
Mixed Module, 24VDC Positive Logic Input 20 Points / Output 12 Point /
(4) High Speed Counter, PWM, or Pulse Train Configurable Points
Input Connections: Inputs are positive logic. Current flows from the input device/switch
to the input point.
Inputs 9 - 16 are one group of standard inputs with a common return.
Inputs 17 - 20 are one group of standard inputs with a common return.
Inputs 1 - 8 can be one group of fast inputs with a common return, or high speed counter
inputs.
Note: Because of the fast response time of inputs 1-8, shielded cable properly-terminated
at earth ground must be used for connecting to this input group in order to meet IEC 1000-
4-4.
Output Connections: Outputs are positive logic Current flows from the output to the
load. Four of the outputs are high-speed outputs that can be PWM, pulse train, or high
speed counter outputs.

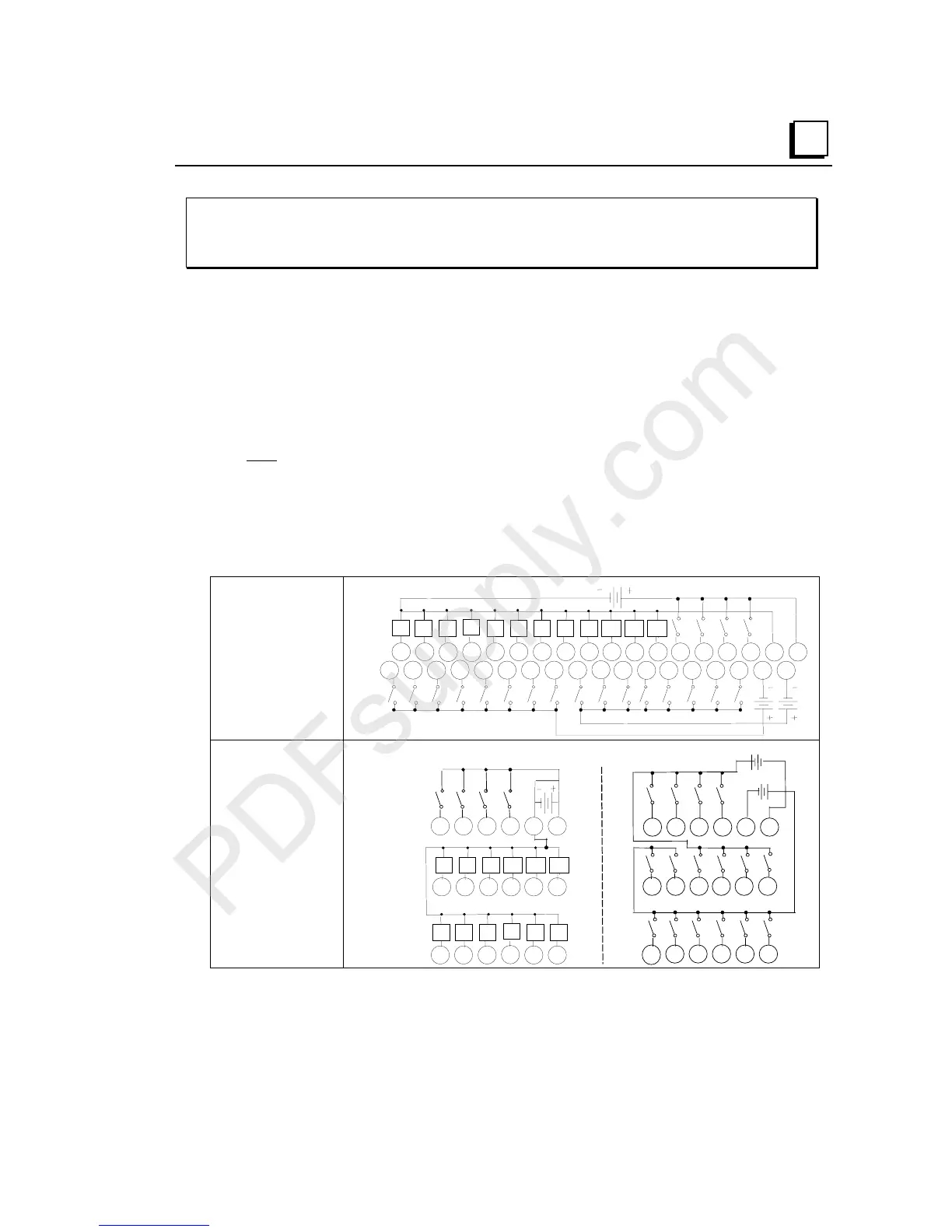

Wiring Connections
for Carriers with Two
Rows of Terminals
IC200CHS002, 005
IC200CHS012, 015
1
A
B
2 3
4
5 6 7 8 9
1 2 3
4
5 6 7 8 9
11 12 13 14 15 16 17 18
11
12 13 14 15 16 17 18
10
10
I1 I2 I3 I4 I5 I6 I7 I8 9 I10 I11 I12 I13 I14 I15 I16
I17 I18 I19 I20
Q1 Q2 Q3
Q4
Q5 Q6 Q7 Q8 Q9
Q10 Q11 Q12
Wiring Connections
for Carriers with
Three Rows of
Terminals
IC200CHS001, 022, 025
IC200CHS011
123456
789 111210
A
13 14 15 16 17 18
Q1
Q2 Q3
Q4
Q5 Q6
Q7 Q8
Q9 Q10 Q11 Q12
123456
13
14 15 16 17 18
789 111210
I1 I2 I3 I4 I5 I6
I7
I8
I9 I10 I11
I12
I16
+
-
B
I13 I14 I15
+
-
I17 I18 I19 I20
