GE VersaMax

GFK-1504K Chapter 14 Temperature-Sensing Modules 14-5
14
IC200ALG620
Analog Input, 16 Bit RTD, 4 Channels

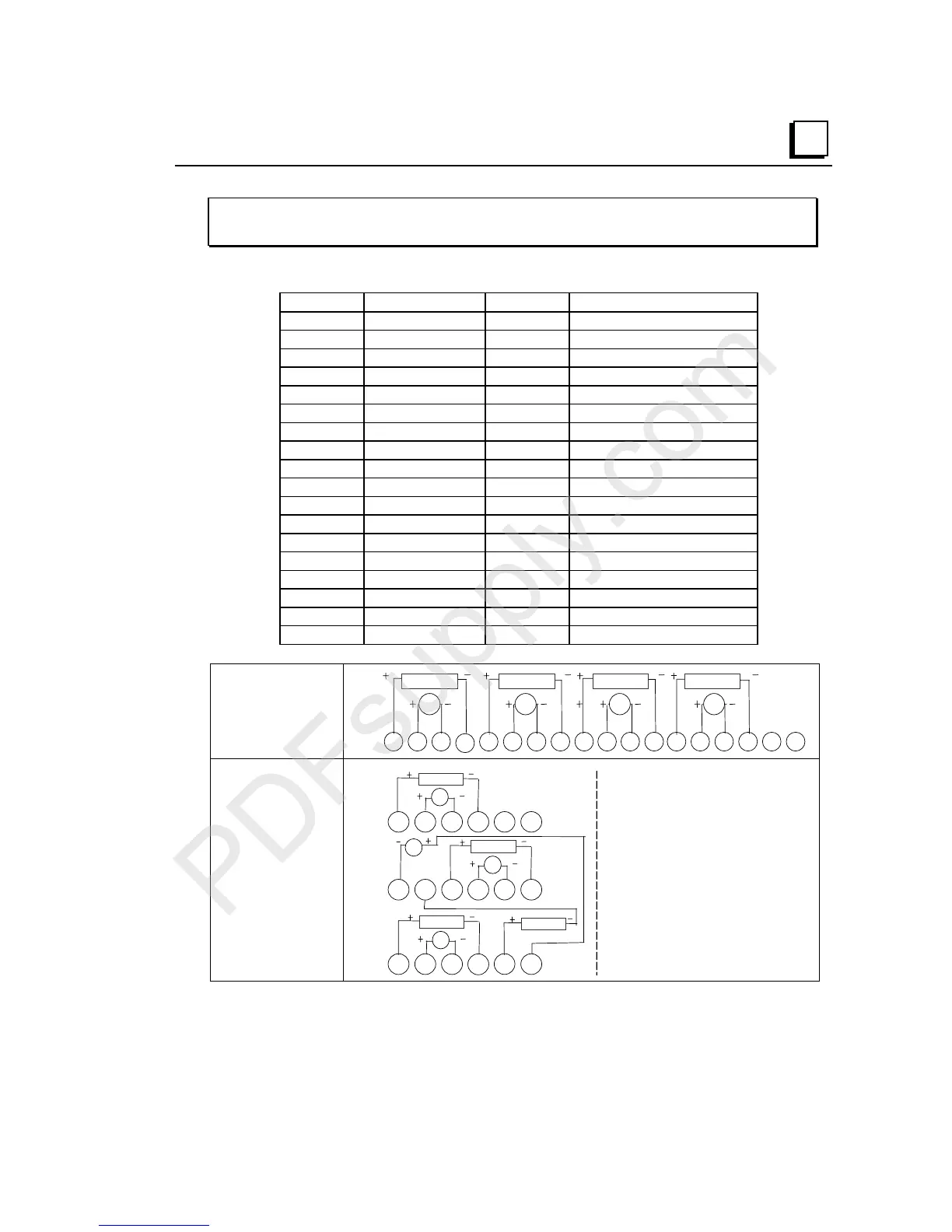

Field Wiring
Terminal Connection Terminal Connection
A1 Source 1 B1 No connection
A2 In (+) 1 B2 Shield Termination Point
A3 In (-) 1 B3 No connection
A4 Return 1 B4 Shield Termination Point
A5 Source 2 B5 No connection
A6 In (+) 2 B6 Shield Termination Point
A7 In (-) 2 B7 No connection
A8 Return 2 B8 Shield Termination Point
A9 Source 3 B9 No connection
A10 In (+) 3 B10 Shield Termination Point
A11 In (-) 3 B11 No connection
A12 Return 3 B12 Shield Termination Point
A13 Source 4 B13 No connection
A14 In (+) 4 B14 Shield Termination Point
A15 In (-) 4 B15 No connection
A16 Return 4 B16 No connection
A17 No connection B17 No connection
A18 No connection B18 No connection
Wiring Connections
for Carriers with Two
Rows of Terminals
IC200CHS002, 005
IC200CHS012, 015
123
4
56789 111213141516171810
AI 1 AI 2 AI 3
Source 1
AI 4
A
Source 2 Source 3 Source 4
Wiring Connections
for Carriers with
Three Rows of
Terminals
IC200CHS001, 022, 025
IC200CHS011
123456
789 111210
A
13 14 15 16 17 18
AI1
Source 1
AI2
Source 2
AI3
Source 3
AI4
Source 4
