GFK-1504K Chapter 14 Temperature-Sensing Modules 14-17
14
IC200ALG630
Analog Input, 16 Bit Thermocouple, 7 Channels

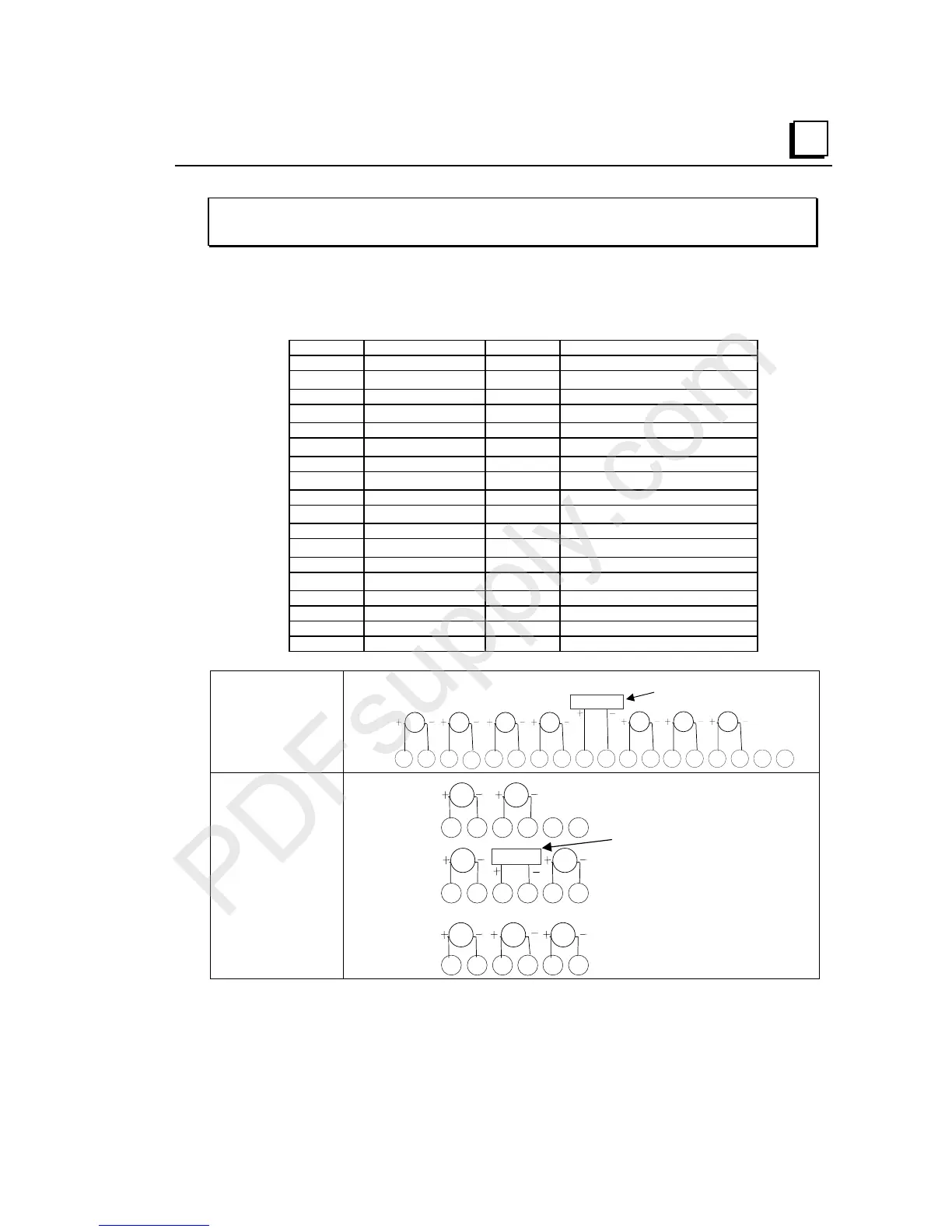

Field Wiring
The terminal assignments for the Thermocouple module shown below are the same for all
carriers.
Terminal Connection Terminal Connection
A1 Channel 1 (+) B1 No Connection
A2 Channel 1 (-) B2
Shield Termination Point
A3 Channel 2 (+) B3 No Connection
A4 Channel 2 (-) B4
Shield Termination Point
A5 Channel 3 (+) B5 No Connection
A6 Channel 3 (-) B6
Shield Termination Point
A7 Channel 4 (+) B7 No Connection
A8 Channel 4 (-) B8
Shield Termination Point
A9 (Thermistor (+)) B9 No Connection
A10 (Thermistor (-)) B10
Shield Termination Point
A11 Channel 5 (+) B11 No Connection
A12 Channel 5 (-) B12
Shield Termination Point
A13 Channel 6 (+) B13 No Connection
A14 Channel 6 (-) B14
Shield Termination Point
A15 Channel 7 (+) B15 No Connection
A16 Channel 7 (-) B16 No Connection
A17 No Connection B17 No Connection
A18 No Connection B18 No Connection
Wiring Connections
for Carriers with Two
Rows of Terminals
IC200CHS002, 005
IC200CHS014
123
4
5 6 7 8 9 11 12 13 14 15 16 17 18
10
AI 1 AI 2 AI 3
AI 5 AI 6 AI 7
Thermistor
AI 4
A
Note: only for thermocouple carrier
Wiring Connections
for Carriers with
Three Rows of
Terminals
IC200CHS001, 022, 025
123456
789 111210
A
13 14 15 16 17 18
AI 1 AI 2 AI 3
AI 5
AI 6 AI 7
Thermistor
AI 4
Note: only for thermocouple carrier
