154
9. Remove rear left, right brake pipe No 1 compo.
Loose the union thread that connects the brake pipe compo to HECU controller (ABS module)
10. Separate HECU controller assembly wire harness
11. Remove HECU controller bracket
Remove the 3 hex bolts connecting the bracket and the body
12. Remove HECU controller assembly from the bracket
Using special wrench, remove 3 inner torx bolts and insulator
13. Installation is in the reverse order of the procedure above
Notice:
(1) The HECU controller bracket to body bolt torque: 20~25N.m

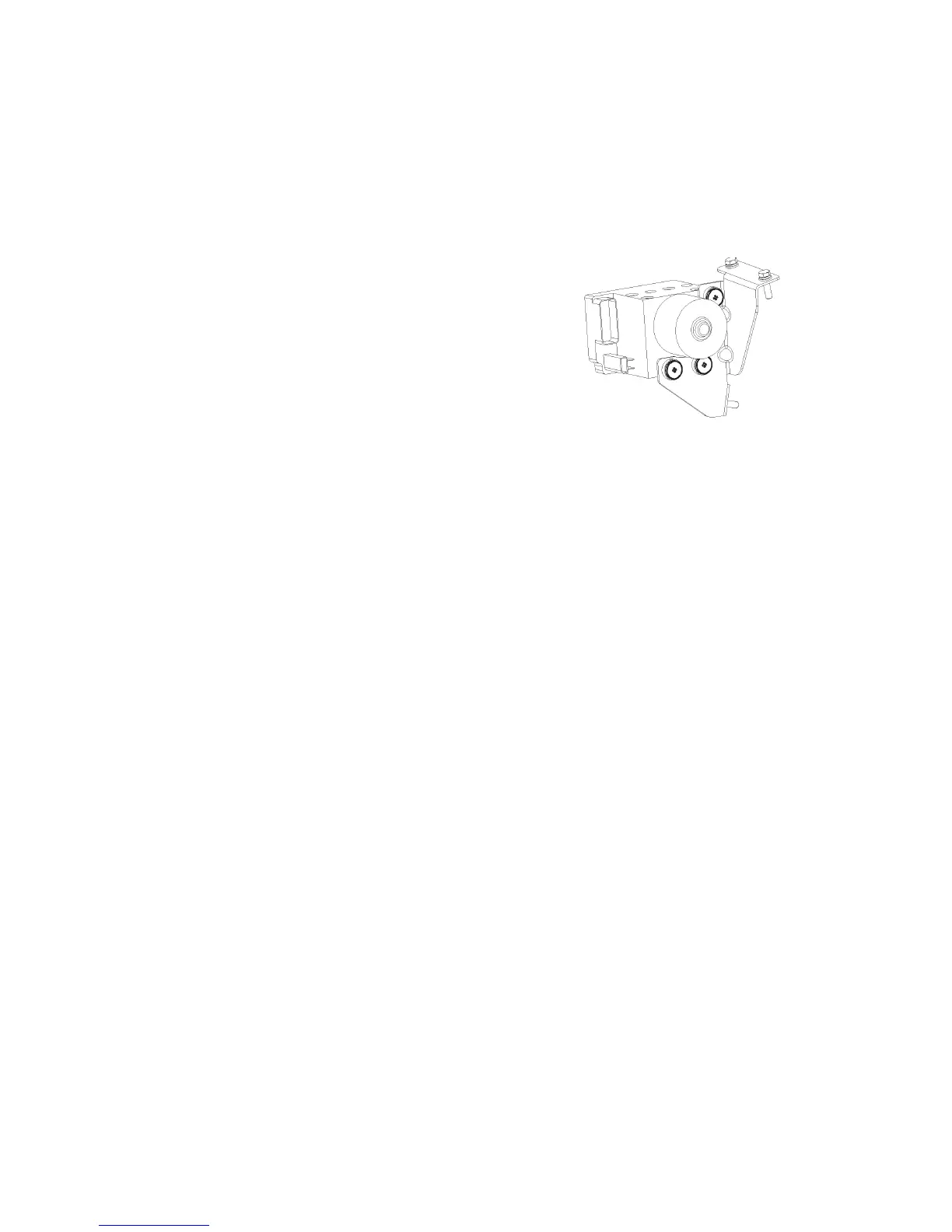

(2) Hose and pipe union thread torque: 12~16N.m
(3) All the hose, pipe should be fixed. The distorted clamp and E-shaped clip should
be replaced. Never interfere the hoses and pipes with other parts.
(4) Bleed the brake system
(5) Check the pipeline and the pipe union for leakage
(6) Inspect HECU control system with ABS diagnosis tester
