(b) Inspect the combination meter assembly speed input signal
1 Inspect voltage
Hold the front wheels up
Push the shift lever to NEUTRAL
Turn the ignition switch to ON
Slowly turn the front wheel, measure the voltage between terminal A9 and A11

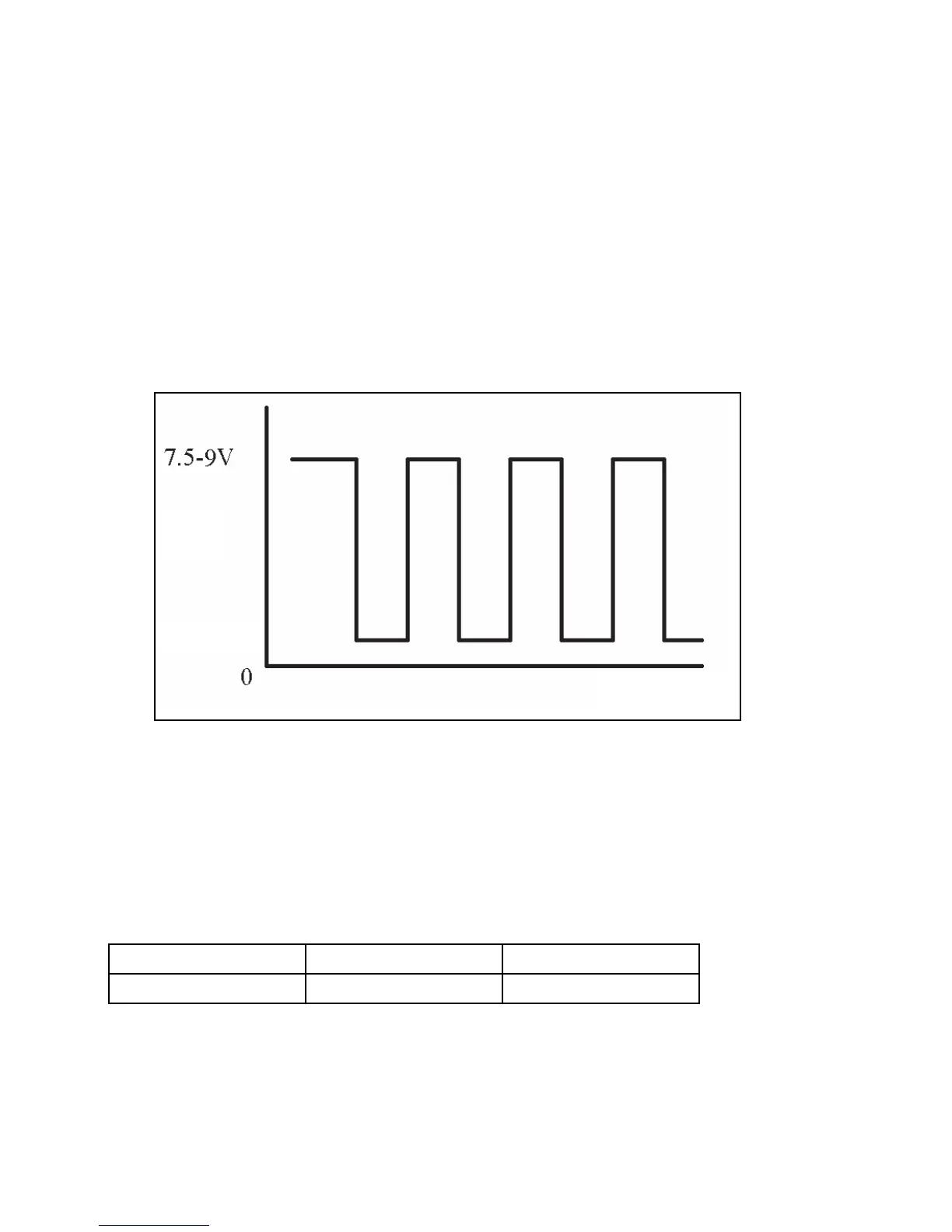

Standard voltage is as follows:
Voltage changes alternately
Result and solution:
Normal Replace the combination meter assembly
If abnormal, inspect the speed sensor
2 Inspect the speed sensor
Inspect continuity
Inspect continuity between terminals
Standard:
Tester connection Condition Standard condition
2 - ground Normal condition Continuity
Turning Wheels
Below 0.5V
