185
5. FUEL GAUGE MALFUNCTION

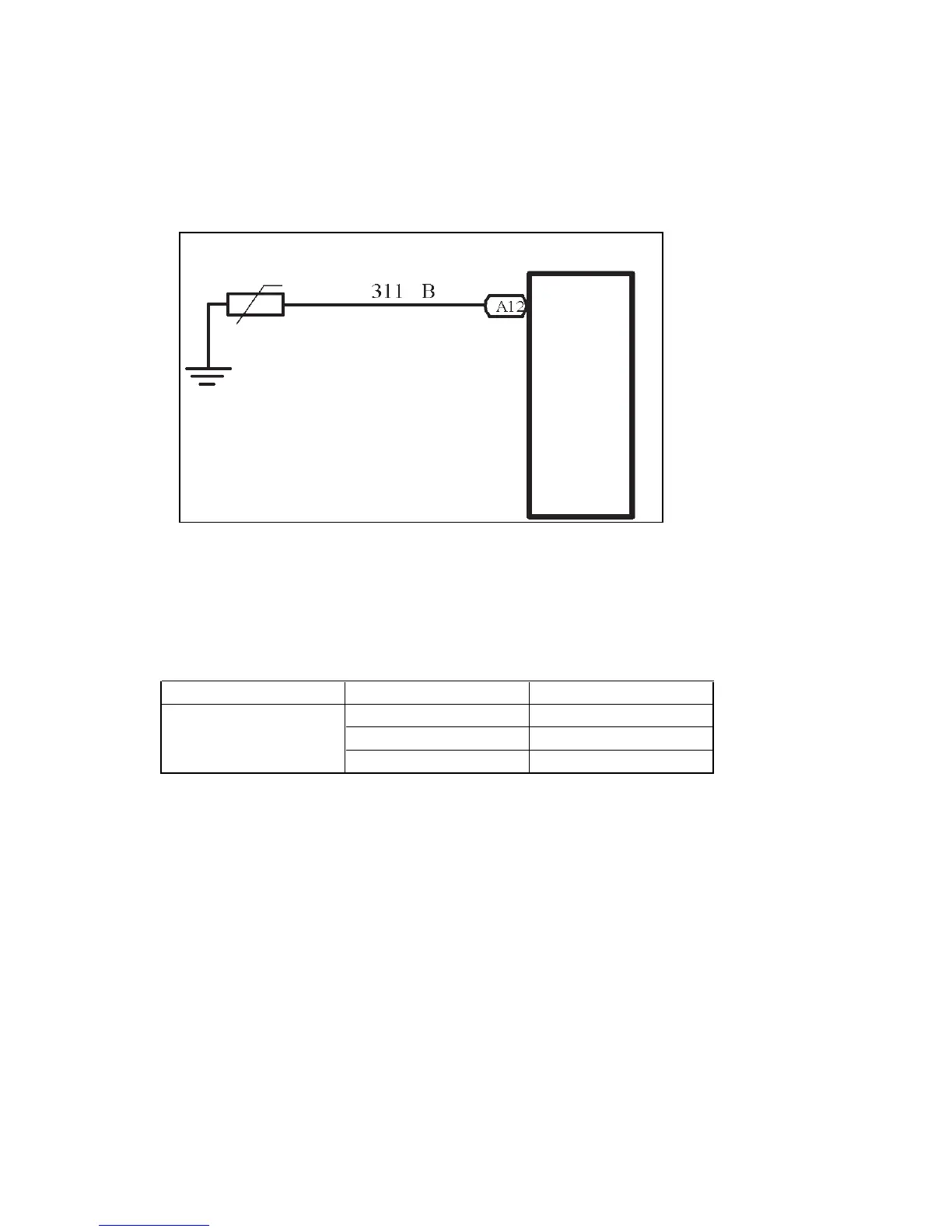

CIRCUIT DIAGRAM
(a) Inspect the combination meter assembly
1 Inspect resistance
 Remove the combination meter assembly and disconnect connectors
 Inspect continuity between terminals
Standard:
Result and solution:
Normal Replace the combination meter assembly
If abnormal inspect the fuel level sensor
2 Inspect the fuel level sensor
 Remove the fuel level sensor
 Adjust the height of the fuel level sensor and measure its resistance.
Tester connectio
n
Conditio
n
Standard conditio
n
E110±6Ω
1/2 32.5±3Ω
F3±2Ω
A12 - ground
Fuel Level Sensor
Combined Meter Assembly
Fuel Signal
