195
Front washer switch
If no continuity, replace the switch.
(b) Operation inspection (washer switch)
1 Turn the washer switch on the position OFF.
2 Connect the connector terminal 8 to the battery positive (+)
and the terminal 2 of wiper connector to the negative (-). Turn
the washer switch ON and OFF and then measure the battery
voltage between the terminal 8 and terminal 2 of the wiper
motor connector.

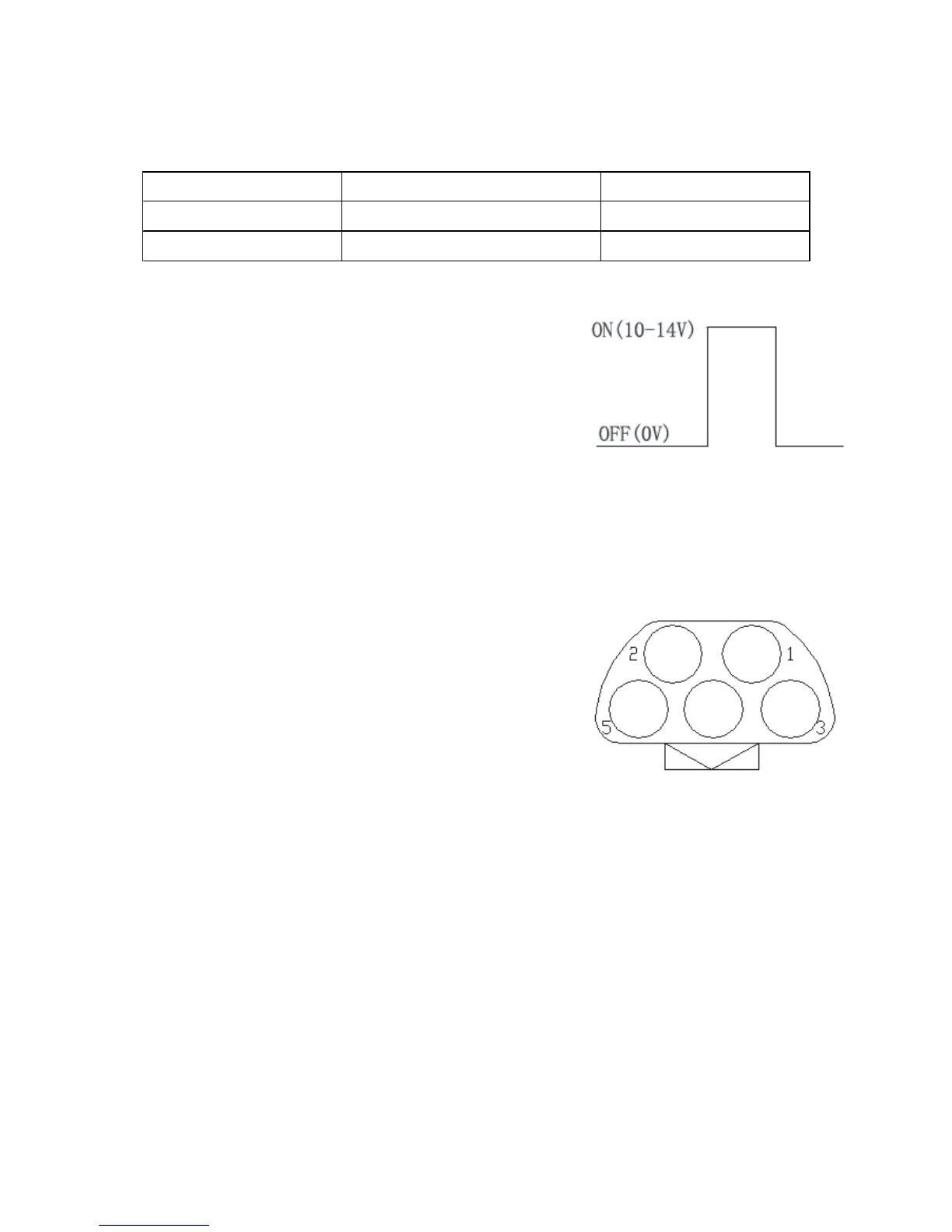

Standard: as shown on the left
If it is not as specified, replace the switch.
3. WIPER MOTOR ASSEMBLY
(a) Inspect the low speed shift
 Connect the connector terminal 3 to the battery positive
(+) and the connector terminal 2 (E) to the negative
(-), check that the motor operates at low speed.
If it is not as specified, replace the motor.
(b) Inspect the high speed shift
 Connect the connector terminal 3 to the battery positive
(+) and the connector terminal 2 (E) to the negative
(-), check that the motor operates at high speed.
If it is not as specified, replace the motor.
(c) Inspect automatic return
1 Connect the connector terminal 5 to the battery positive (+) and the connector terminal 2 (E) to the
negative (-). Let the motor operates at low speed, disconnect terminal 5 (+) to make the motor stop at a
random position.
2 Connect the terminal 5 and terminal 3, and connect the terminal 4 to the battery positive (+), make the
motor restart at low speed.
3 Check that the automatic return operates in a normal way.
If it is not as specified, replace the motor.
Switch position Tested terminal Specified condition
OFF
No continuity
ON 8（+）—7（-）
Continuity
