II.INSTALLATION
1. Install the electrical connector of the headlamp assembly.
2. Install the headlamp assembly and the 3 mounting bolts.
3. Install the front bumper.
4. Adjust the condition of the vehicle.
5. Adjust the headlamp beam.
III.HEADLAMP BULB REPLACEMENT

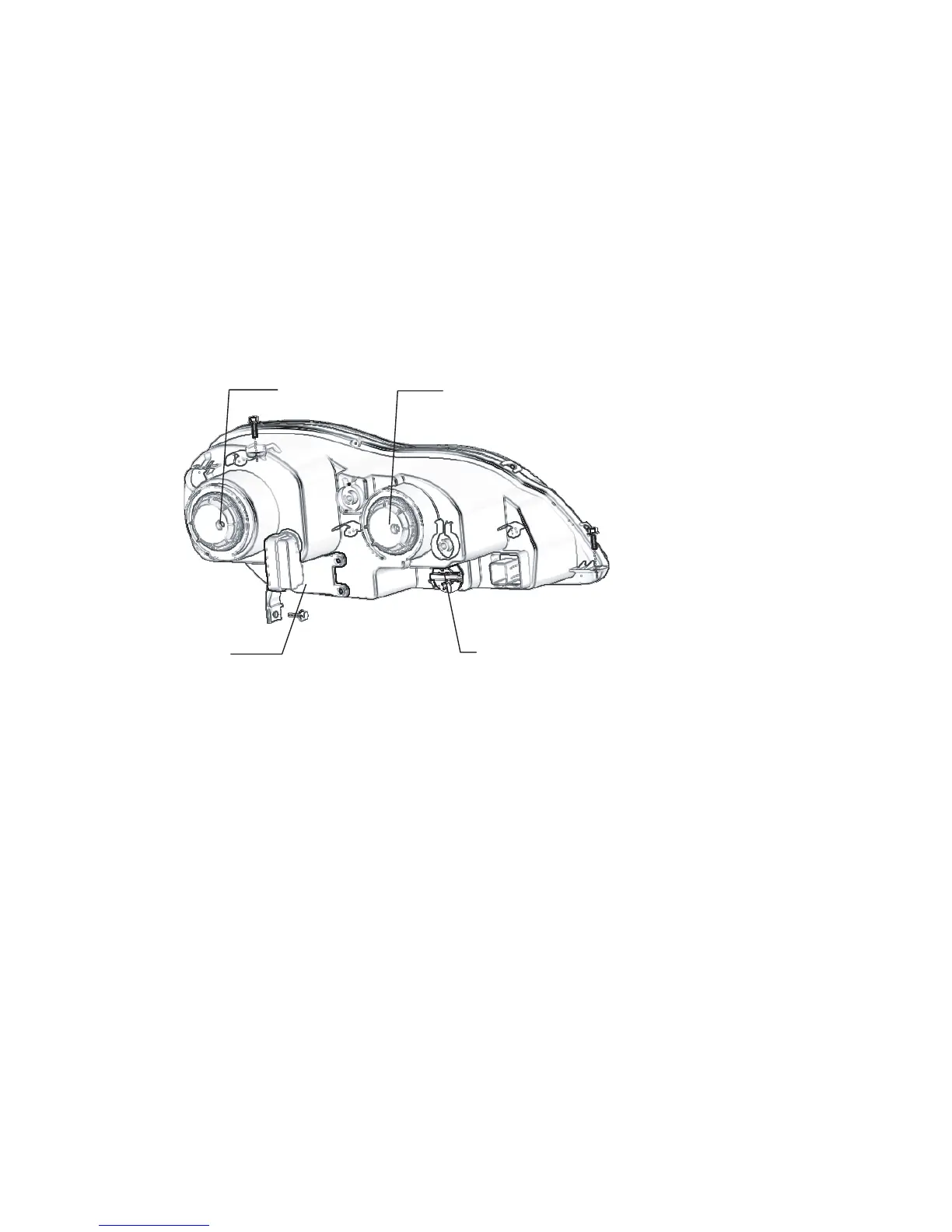

1 - LOW BEAM DUST COVER 2 - HIGH BEAM DUST COVER 3 - TURN SIGNAL LAMP DUST
COVER 4 - HEADLAMP HOLDER
1. Replace the high and low beam bulbs
y Turn and remove the dust cover counter-clockwise
y Pull out the bulb plug
y Press and release the wire clip
y Pull out the lamp-holder, and remove the bulb
y Replace the bulb
2. Replace the turn signal lamp bulbs
y Remove the 3 screws on the dust cover with screwdriver
y Turn the lamp-holder counter-clockwise. Pull out the lamp-holder, and remove the bulb
y Replace the bulb
3. Replace the headlamp bulbs
y Turn the lamp-holder counter-clockwise. Pull out the lamp-holder, remove the bulb, and replace the
bulb.
1
2
3
4
