213
IV. HEADLAMP BEAM ADJUSTMENT
LOW BEAM
1. Adjust the condition of the vehicle.
y Make sure the body around the headlamp is not deformed
y Tire inflation pressure is the specified value
y Park the no-load vehicle on a level spot
y Sit on the driver's seat and be ready for driving (with a full fuel tank)

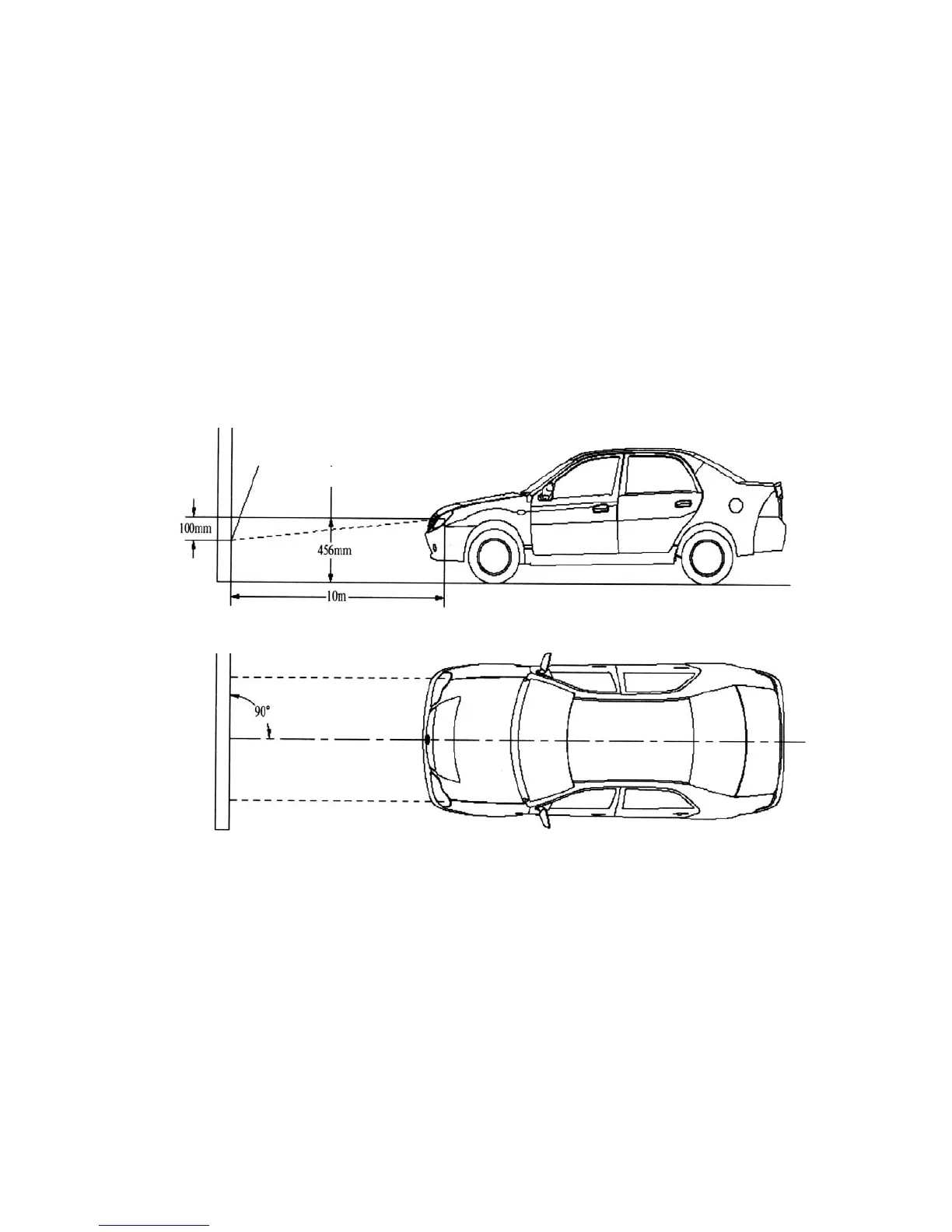

y Put the vehicle in front of a wall, and let it be perpendicular to the wall
y Ensure the distance from the headlamps to the wall is 10 m
2. Inspect the headlamp beam
y Set up a screen as shown in the illustration, to adjust the headlamp aim
y Cover the other lamps while a certain headlamp is adjusted.
y Start the engine
y Turn the headlamp low beam ON
y Then turn the adjusting screws controlling the beams. Make the main beam (the brightest point) at
the specified height, that is, the corner point of the "cut-off" line is located in the center of the
shaded part, as shown in the illustration.
Low Beam Lay
Dim and Bright
Cut Line Angle
Distance from the central point of
the headlamp beam to the ground
Low
Beam
Position of the Vehicle
To Next Page
