NOTICE:
The screw must be tightened when adjusting the headlamps. If it needs loosening for adjusting, you should
completely loosen it and then begin to tighten it.

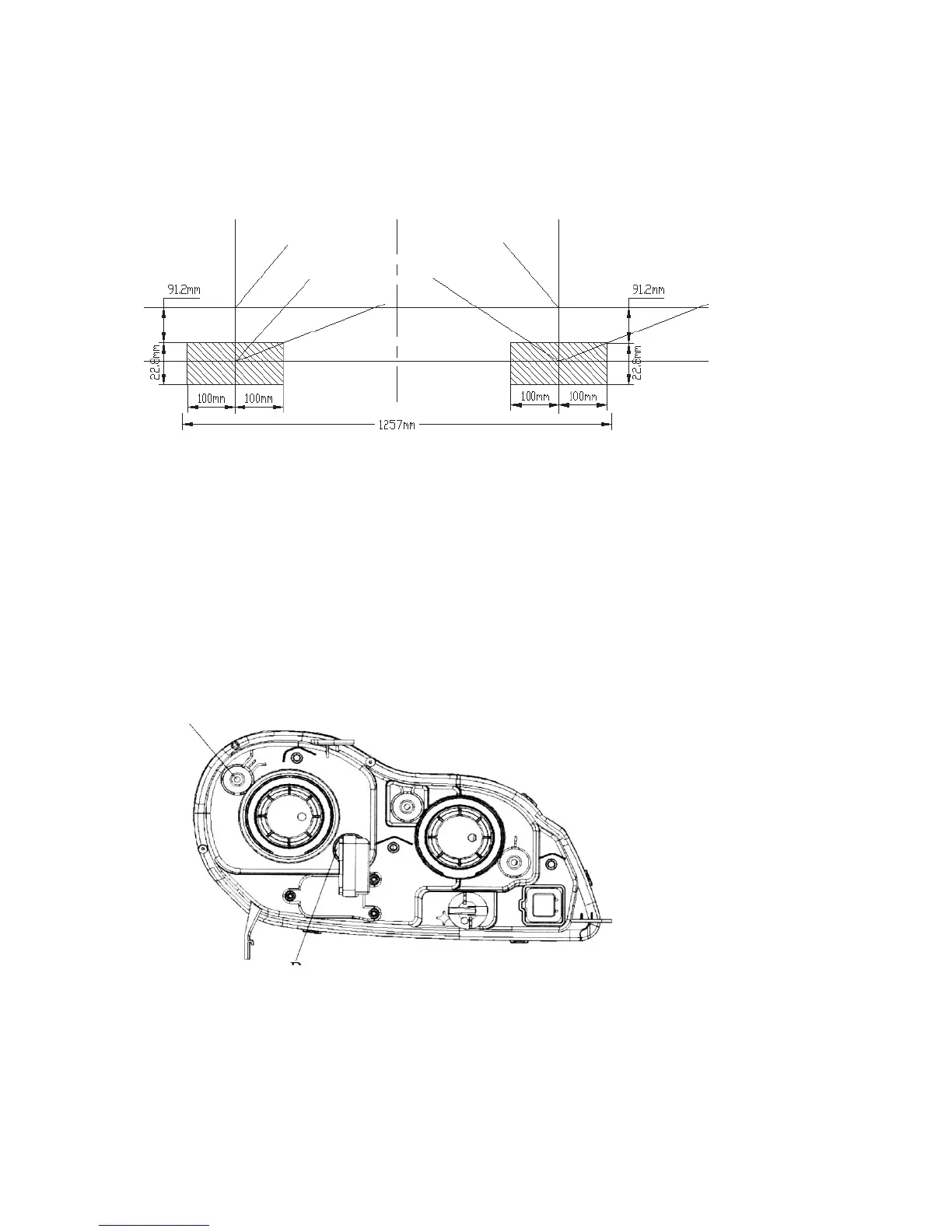

(1) Adjust the positions of the screw bolts, as shown in the illustration below.
y Turn A for adjustment in horizontal direction within an allowed scope.
y Turn B for adjustment in vertical direction within an allowed scope.
V LH
V RH
V-line
Central of the Headlamp
Central of the Headlamp
Corner Point of
the "Cut-off" Line
Dim and Bright
Cut Line Angle
A
B
To Next Page
