c. Remove the snap ring from the rear seat back. Open the seat back cover. Remove the inside snap
ring. Remove the seat cover.
2 Re-assembly
a. Install the snap ring at the inside of the seat back;
b. Install the snap ring at the rear seat back;
c. Install the seat back lock handle seat to the rear seat back;
d. Install the rear trunk carpet to the rear seat back with 10 clips;
e. Install the rear seat back assembly to the vehicle with 4 bolts. Tighten bolt torque: 3.92~6.86N.m.
2.Rear seat cushion assembly
1 Removal
a. First remove therear seat back;
b. Lift the front of the seat cushion. Disconnet the seat cushion from the clamp on the floor, push
backwards, separate it from the hook. Remove seat cushionassembly from the vehicle;
c. Remove the snap ring on the seat cushion;
d. Remove the snap ring in the cover. Remove cover.
e. Remove the clamp under the seat cushion;
2 Re-assembly
The installation is in the reverse order of the removal.

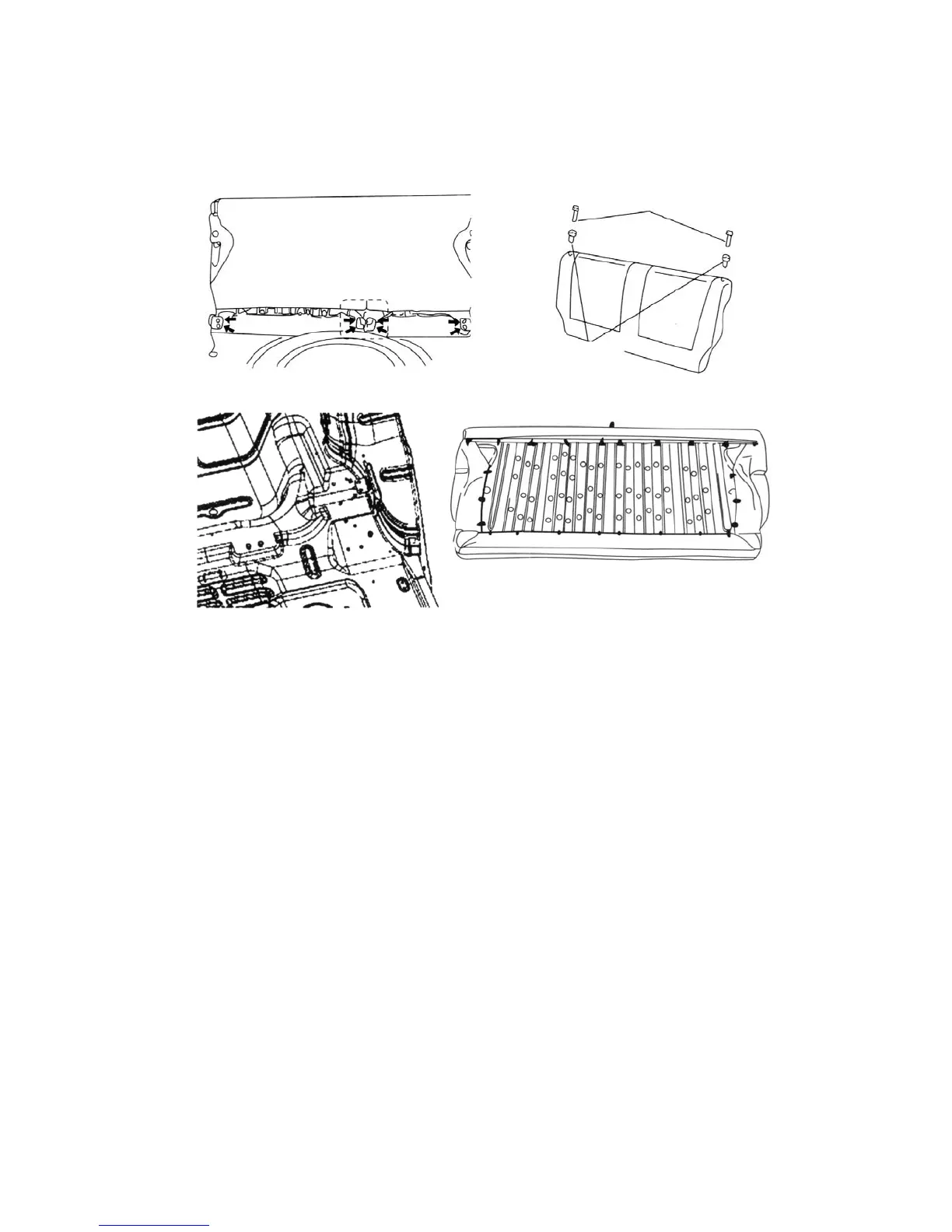

Remove Rear Seatback Assembly
Seatback Lock handle
Handle Seat
Remove Seatback Set Bolt
Remove Seatback Cover
Remove Seatback Handle and Seat
To Next Page
