6. Cowl Upper Assembly
Cowl upper assembly is mainly composed of cowl upper outer plate, cowl upper LH/RH end plate assembly,
instrument panel mounting plate, steering column mounting bracket upper/lower plate, cowl lower inner plate,
ventilator cover, etc., by welding them together.

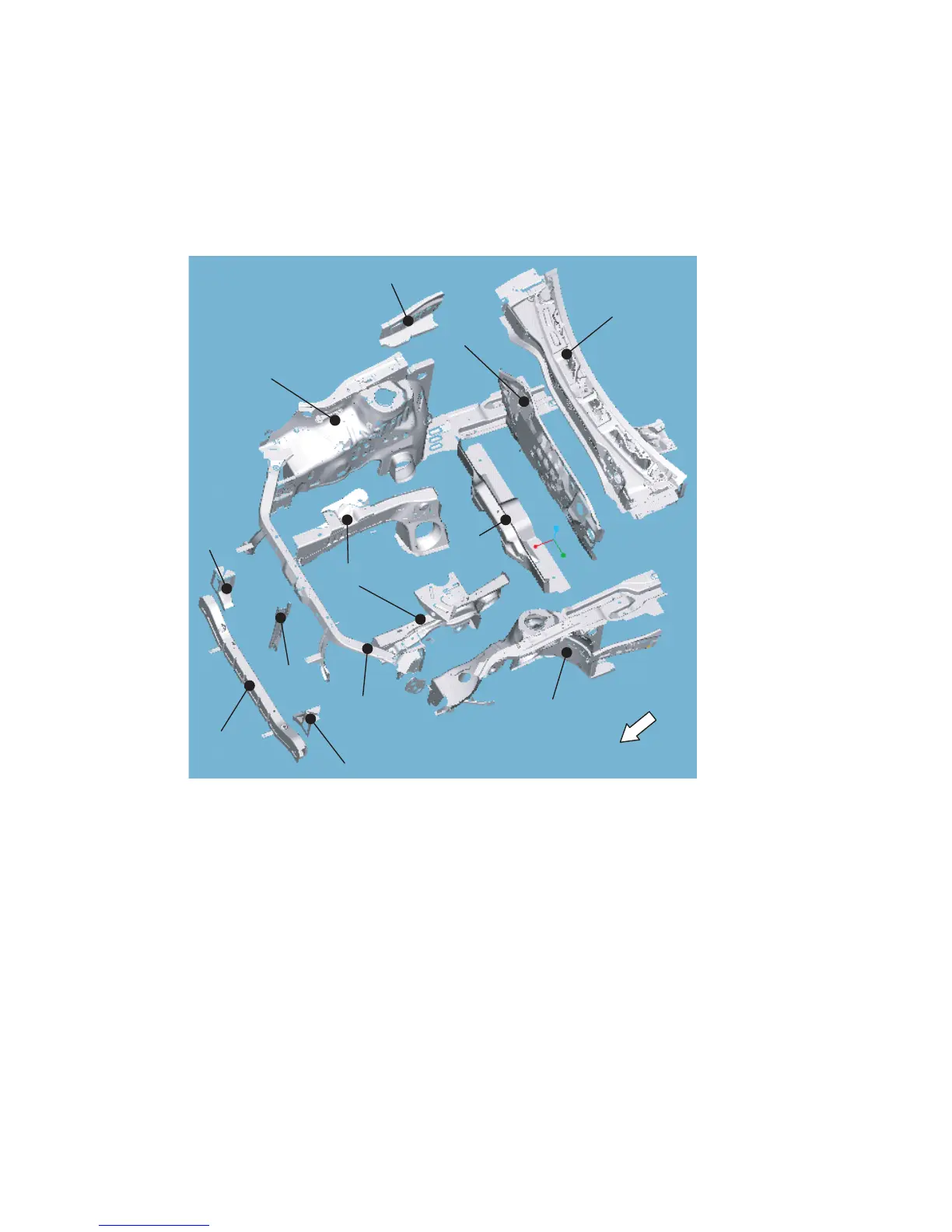

Figure 5-2 Dismantle diagram of front sheet metal and cowl parts
1 Front Cross Member 2 Hood Lock Bracket Assy. 3 LH/RH Side Member End Plate
4 Engine Hood Front Support Plate Assy. 5 LH/RH Front Cross Member 6. LH/RH Front Mud Guard
7 Front Cross Member Assy. 8 Cowl Inner And Outer Plate Assy. 9 LH/RH Front Mud Guard
Reinforcement 10 Cowl Upper Baffle
1
2
3
7
5
6
8
3
9
10
6
4
Front
