(II) Floor Assembly
Floor assembly is the base of the main body and an important structure component to link with assemblies
and for load transfer and bearing. The vehicle running performance depends on its intensity and rigidity.
Figure 5-3 is the dismantle diagram of the floor parts.
Floor assembly is composed of front floor assembly and rear floor assembly. A protrusile tunnel runs longitu-
dinally in the center of the front floor. The tunnel and the lower floor rail can strengthen its rigidity in
longitudinal direction. The lower space of the tunnel is used to mount components such as transmission shift
pull rod, park brake drawing cable, exhaust pipes with 3-way catalytic converter. Carpet and sound insulator
mat are mounted in the inner side of the compartment. The first and the second cross member, LH/RH side
member and side rails which are on the front floor form a frame structure. It can provide great load-bearing
capacity to assure strict running requirements for body.

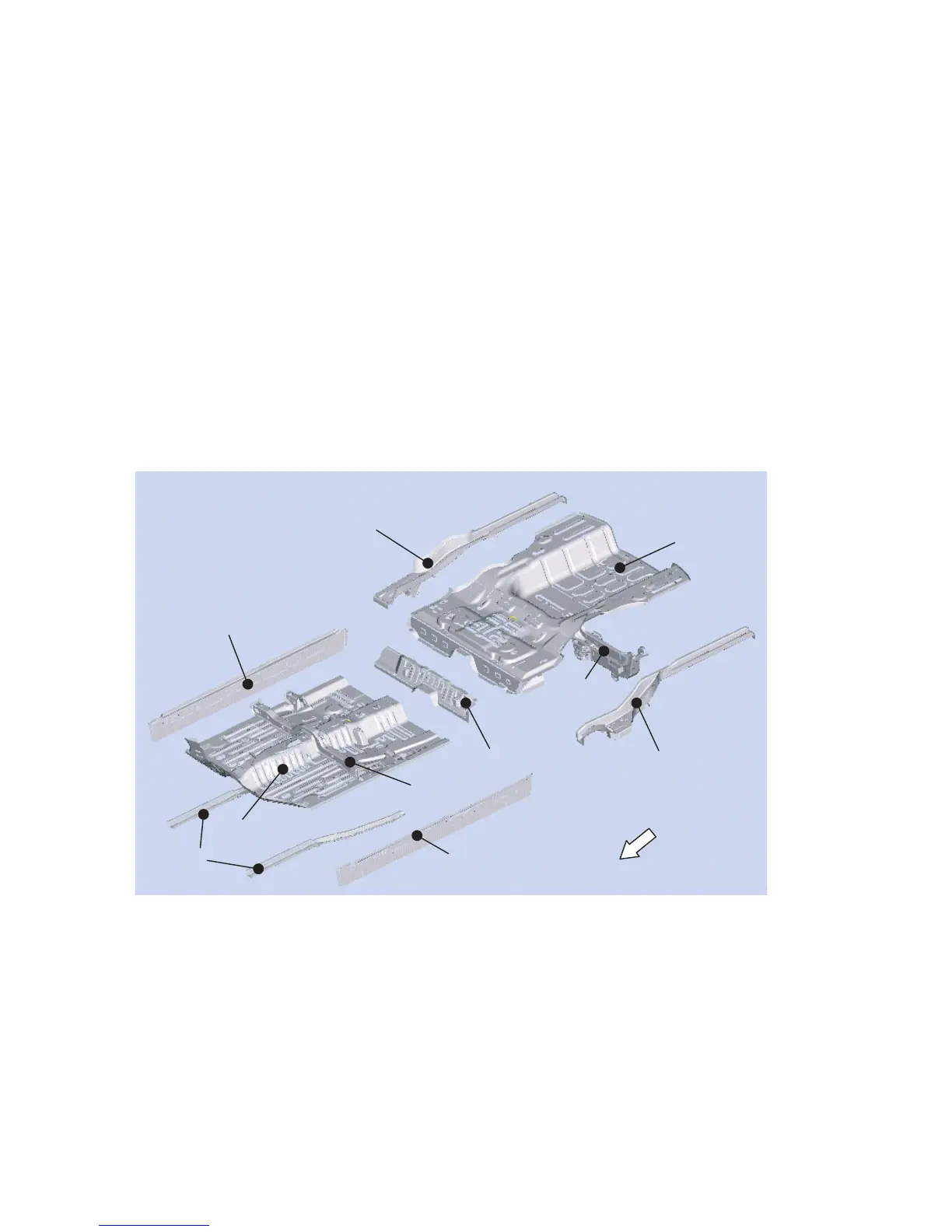

Figure 5-3 Decomposition Diagram of Floor Parts
1 LH/RH Front Floor Side Rail 2 Front Floor 3 Front Floor Cross Member 4 LH/RH Floor Side
Member 5 Rear Floor 1st Cross Member6 LH/RH Rear Floor Side Rail 7 Rear Floor 2nd Cross
Member Assy. 8 Rear Floor
