Geely CK MR479QA 2007 User Manual

363
(III) Side Wall Assembly
LH/RH side wall assembly is frame structure. It is mainly composed of parts such as LH/RH front pillar sub-
assembly, LH/RH central pillar reinforcement, LH/RH upper side rail, LH/RH floor side rail outer panel, LH/
RH side wall inner/outer panel...etc., by welding them together. Figure 5-4 is the dismantle diagram.

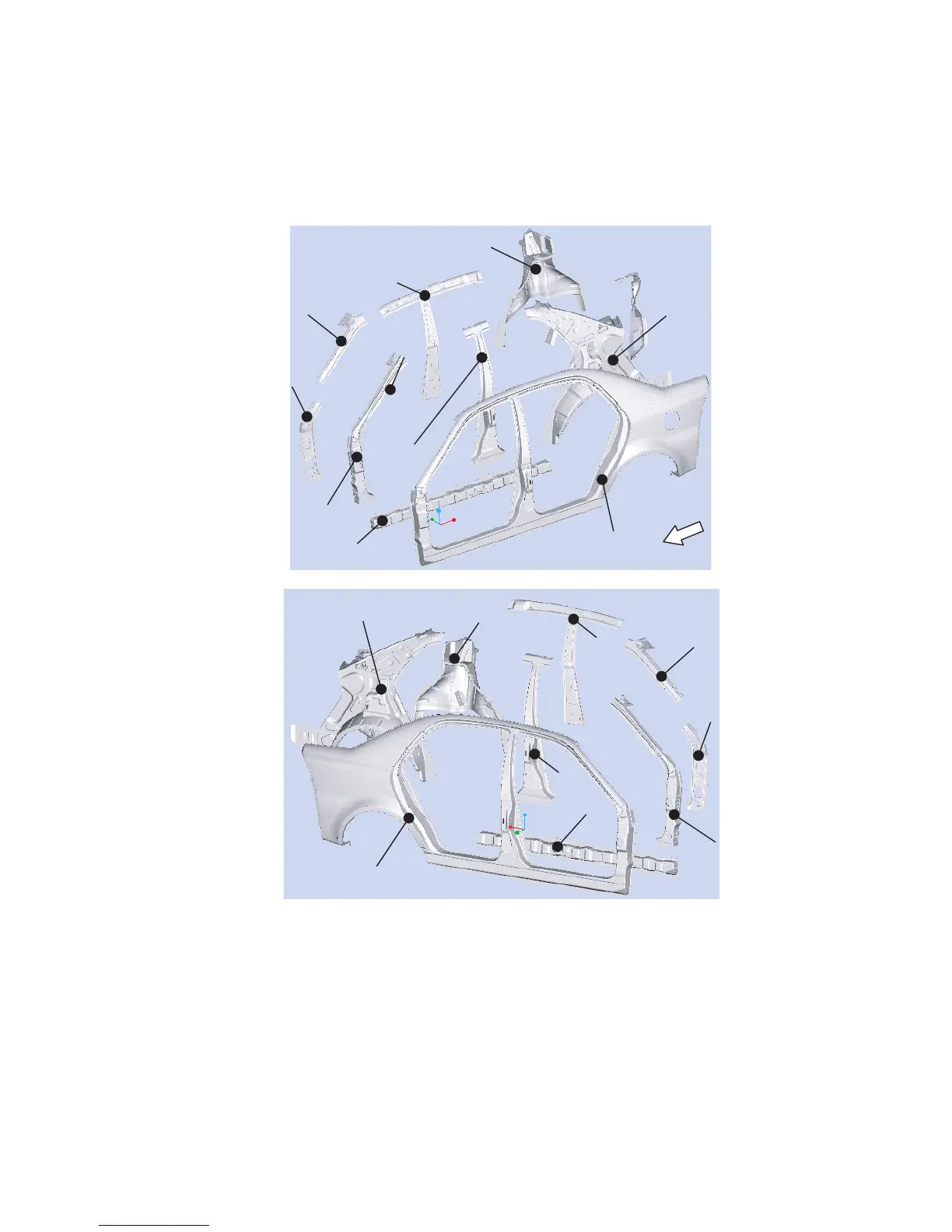

Figure 5-4 Decomposition Diagram of Quarter Parts
1. LH/RH Front Pillar Inner Plate 2 LH/RH Upper Side Member Front Inner Plate 3 LH/RH Front
Pillar Outer Plate Reinf orcement 4 LH/RH Upper Side Member Inner Plate Assy.
5.LH/RH Doorframe Lower Side Member Outer Plate Reinforcement 6 LH/RH Central Pil-
lar Outer Plate Reinforcement 7 LH/RH Rear Wheel House Inner Plate Sub-assy 8 LH/RH Rear
Wheel House Outer Plate Sub-assy 9 LH/RH Side Wall Outer Plate
1
5
7
9
2
6
4
8
5
8
7
4
2
9
3
1
6
3
Front
Left
Right
