PID Control Setting

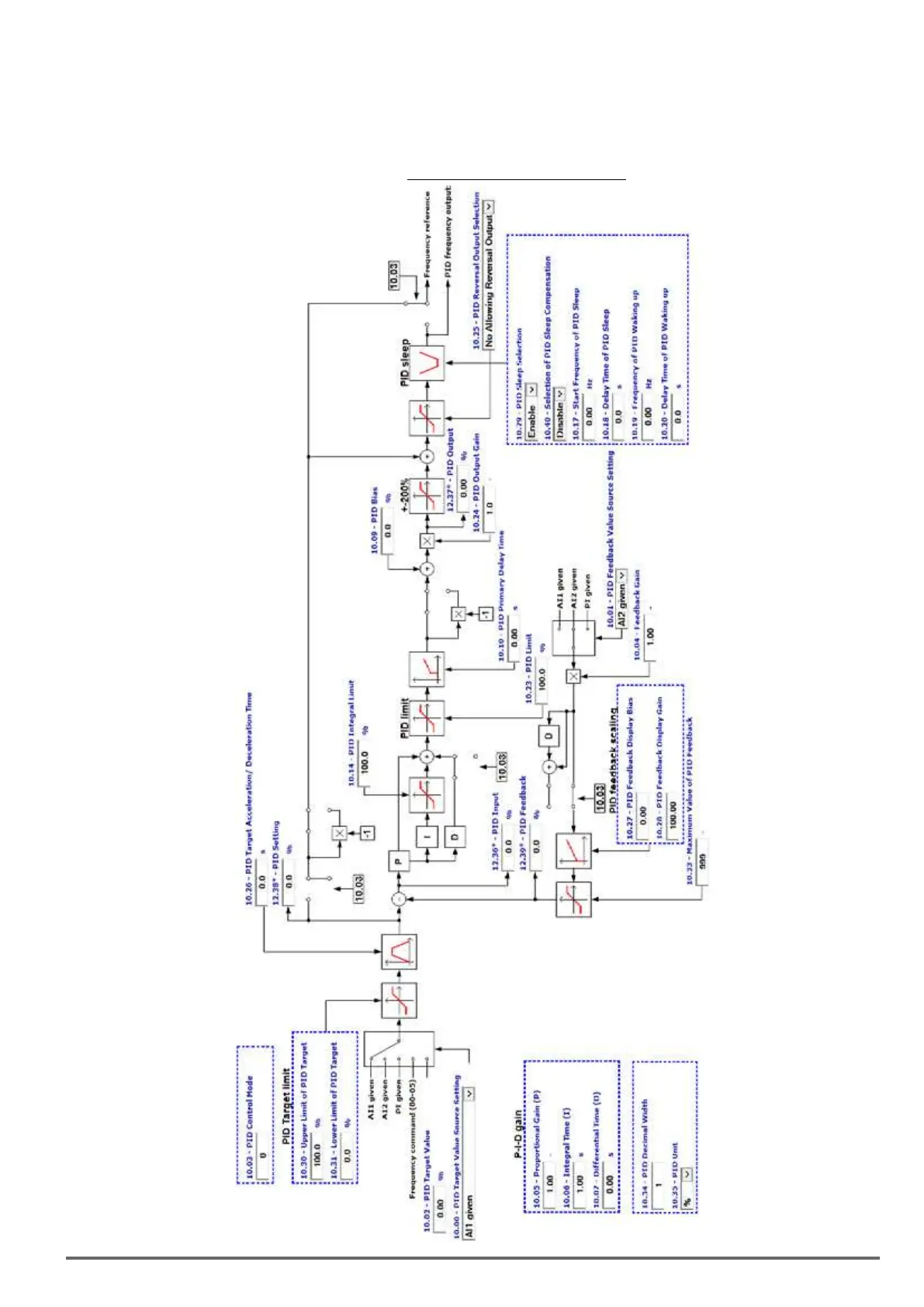

PID control block diagram.
The following gure shows the PID control block diagram.
Figure4.4.81PIDcontrolblockdiagram
VDI100 • Instruction manual 217
