When parameter 16-08=0 and the read operation is executed (16-07=1) a warning message of “RDP Read
Prohibited” will be displayed on the keypad and the read operation is cancelled.
Refer to the following steps for copy function operation.
For the write-in operation requires the following items to match.
(1) Control method
(2) Inverter type
(3) Inverter rated capacity and voltage
Note: If the data wright in from older version to new version in inverters, please reset power after finishing wright in pro-
cess.

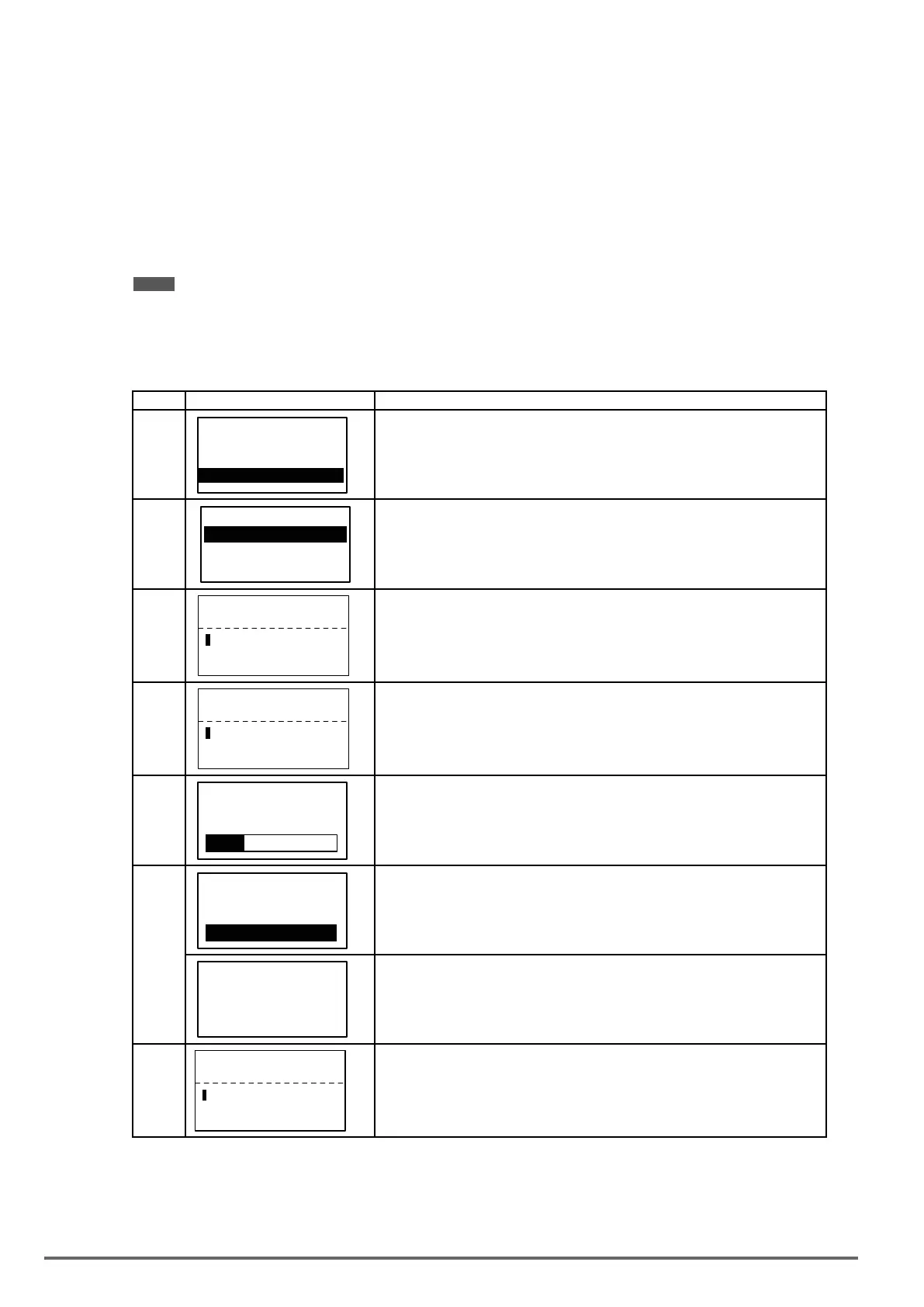

■ READ:Copyinverterparameterstothekeypad
Steps Keypad (English) Description
1
Group
14 PLC Setting
15 PLC Monitor
16 LCD Keypad Func.
Select the copy function group (16) from the group menu.
2
PARA 16
-08：READ Sel
-09：Keypad Loss Sel
-07：Copy Sel
Press the Read / Enter key and select parameter (16-07) copy sel.
3
Edit 16-07
Copy Sel
Normal
(0 – 3)
< 0 >
0
Press the Read / Enter key to display the data setting / read screen (LCD display is
inversed).
4
Edit 16-07
Copy Sel
READ
(0 – 3)
< 0 >
1
Change the set value to 1 (read) by using the up arrow key.
5
-ADV-
READ
INV → OP
• Use Read / Enter key to enable the read operation, the display is shown as the left.
• The bottom of LCD display will show a bar to indicate the read progress.
6
-ADV-
READ
COMPLETE
“READ COMPLETE” will be displayed on the keypad when reading was successful.
RDP
Read Prohibited
• The error message of "RDP Read Prohibited" may occur on the keypad when reading
parameters from the inverter is prohibited.
• If the error is displayed, press any key to remove the error message and go back to
parameter 16-07.
7
Edit 16-07
Copy Sel
READ
(0 – 3)
< 0 >
1
When DSP/FUN key is pressed, the display returns to parameter 16-07.
250 VDI100 • Instruction manual
