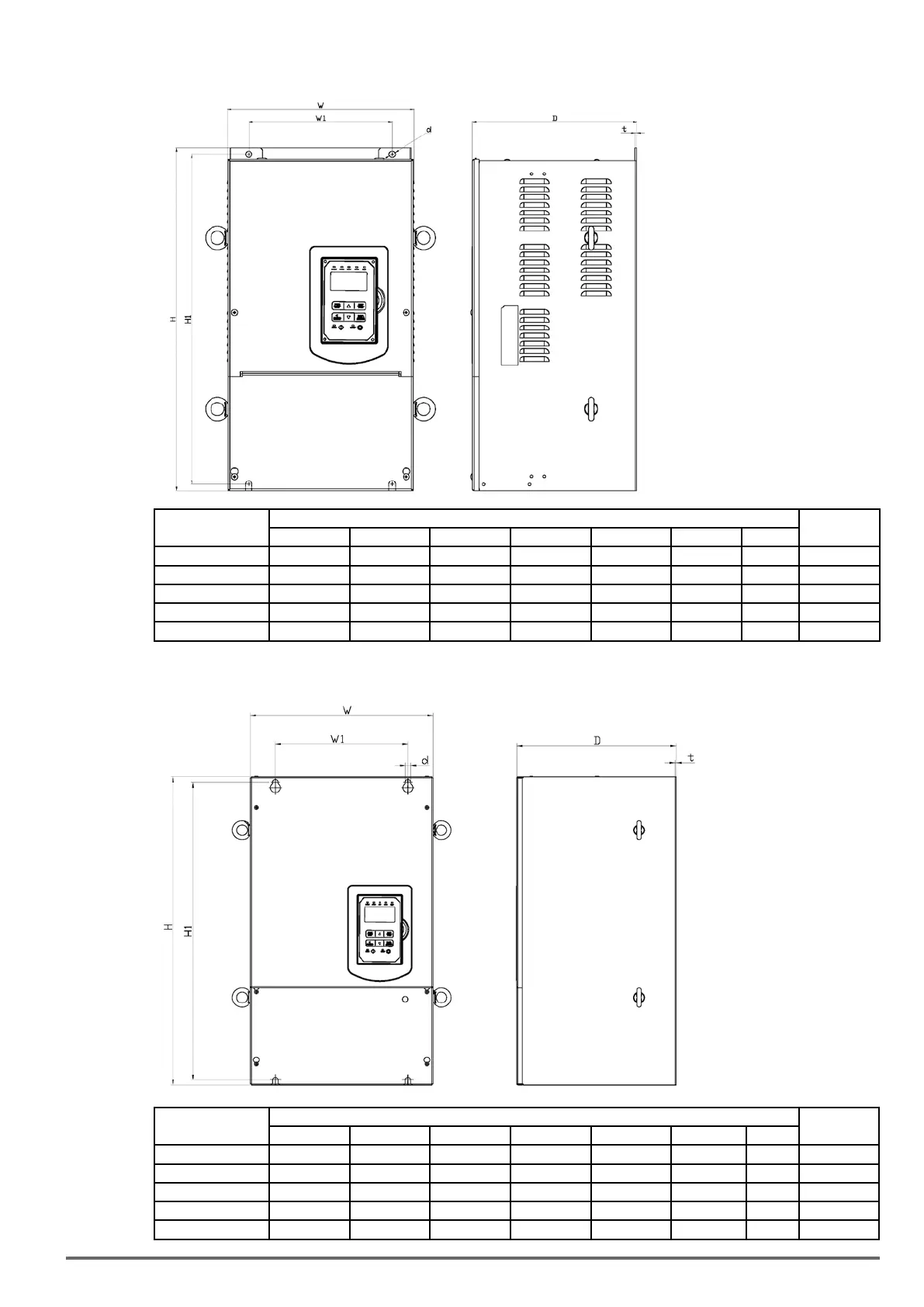

Size5(IP20/NEMA1)
Inverter Model
Dimensions in mm (inch)
Net Weight
kg (lbs)
W H D W1 H1 t d
VDI100-5220-KXX-2T 286.5 (11.29) 525 (20.67) 252 (9.92) 220 (8.66) 505 (19.88) 3.3 (0.13) M8 30 (66.14)
VDI100-5300-KBX-4 286.5 (11.29) 525 (20.67) 252 (9.92) 220 (8.66) 505 (19.88) 3.3 (0.13) M8 30 (66.14)
VDI100-5370-KXX-4 286.5 (11.29) 525 (20.67) 252 (9.92) 220 (8.66) 505 (19.88) 3.3 (0.13) M8 30 (66.14)
VDI100-5450-KXX-4 286.5 (11.29) 525 (20.67) 252 (9.92) 220 (8.66) 505 (19.88) 3.3 (0.13) M8 30 (66.14)
VDI100-5550-KXX-4 286.5 (11.29) 525 (20.67) 252 (9.92) 220 (8.66) 505 (19.88) 3.3 (0.13) M8 35 (77.16)
Sizes6and7(IP00)
Inverter Model
Dimensions in mm (inch)
Net Weight
kg (lbs)
W H D W1 H1 t d
VDI100-6750-KXX-4 344 (13.54) 580 (22.83) 300 (11.81) 250 (9.84) 560 (22.05) 1.6 (0.06) M8 46.7 (102.96)
VDI100-6900-KXX-4 344 (13.54) 580 (22.83) 300 (11.81) 250 (9.84) 560 (22.05) 1.6 (0.06) M8 46.7 (102.96)
VDI100-71100-KXX-4 459 (18.07) 790 (31.10) 324.5 (12.78) 320 (12.60) 760 (29.92) 1.6 (0.06) M10 88 (194.01)
VDI100-71320-KXX-4 459 (18.07) 790 (31.10) 324.5 (12.78) 320 (12.60) 760 (29.92) 1.6 (0.06) M10 88 (194.01)
VDI100-71600-KXX-4 459 (18.07) 790 (31.10) 324.5 (12.78) 320 (12.60) 760 (29.92) 1.6 (0.06) M10 88 (194.01)
