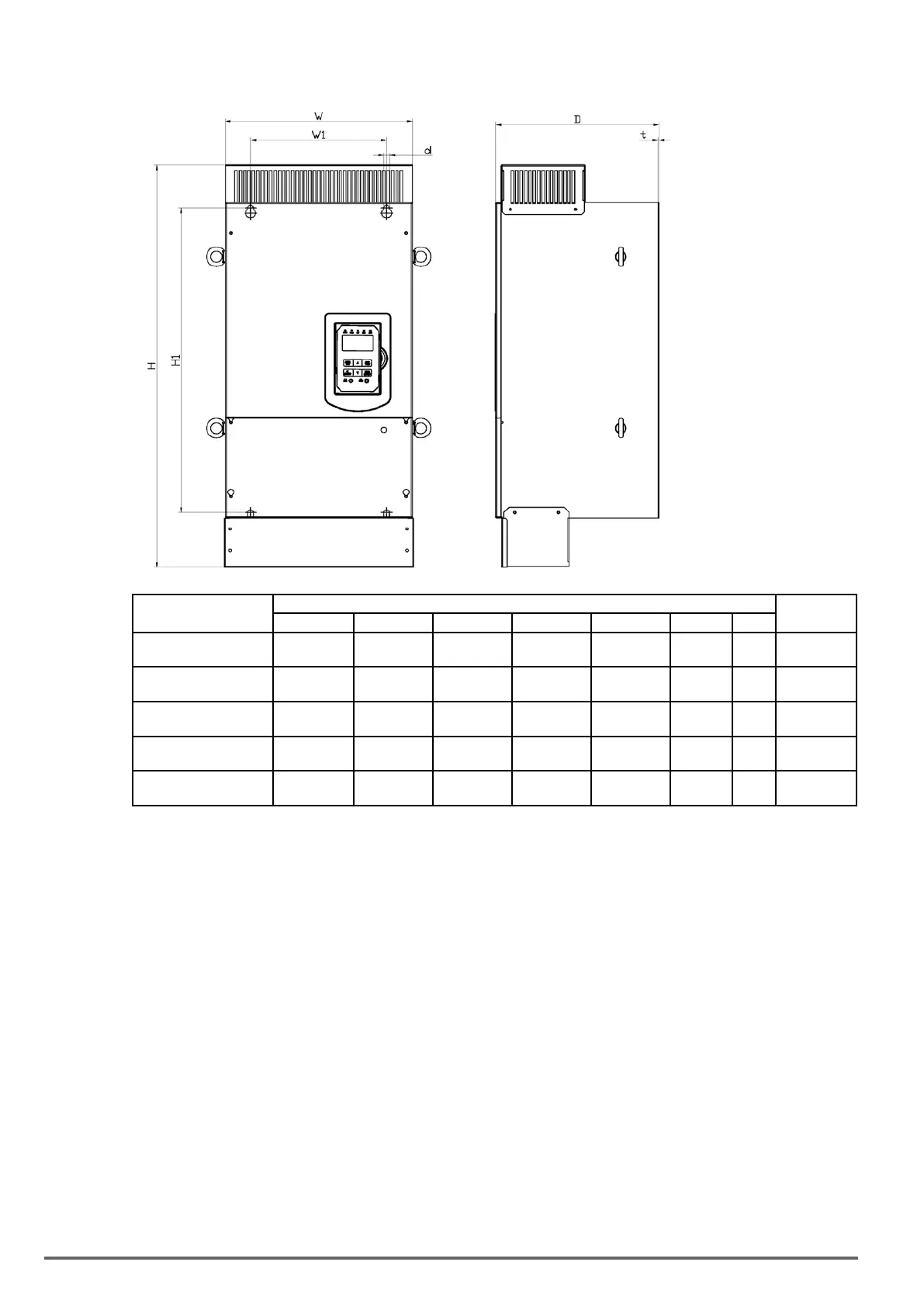

Sizes6and7+NEMA1kit(IP20/NEMA1)
Inverter Model
Dimensions in mm (inch)
Net Weight
kg (lbs)
W H D W1 H1 t d
VDI100-6750-KXX-4
+ NEMA 1 kit for VDI100
348.5 (13.72) 740 (29.13) 300 (11.81) 250 (9.84) 560 (22.05) 1.6 (0.06) M8 49.7 (109.57)
VDI100-6900-KXX-4
+ NEMA 1 kit for VDI100
348.5 (13.72) 740 (29.13) 300 (11.81) 250 (9.84) 560 (22.05) 1.6 (0.06) M8 49.7 (109.57)
VDI100-71100-KXX-4
+ NEMA 1 kit for VDI100
463.5 (18.25) 1105 (43.50) 324.5 (12.78) 320 (12.60) 760 (29.92) 1.6 (0.06) M10 94.4 (208.12)
VDI100-71320-KXX-4
+ NEMA 1 kit for VDI100
463.5 (18.25) 1105 (43.50) 324.5 (12.78) 320 (12.60) 760 (29.92) 1.6 (0.06) M10 94.4 (208.12)
VDI100-71600-KXX-4
+ NEMA 1 kit for VDI100
463.5 (18.25) 1105 (43.50) 324.5 (12.78) 320 (12.60) 760 (29.92) 1.6 (0.06) M10 94.4 (208.12)
