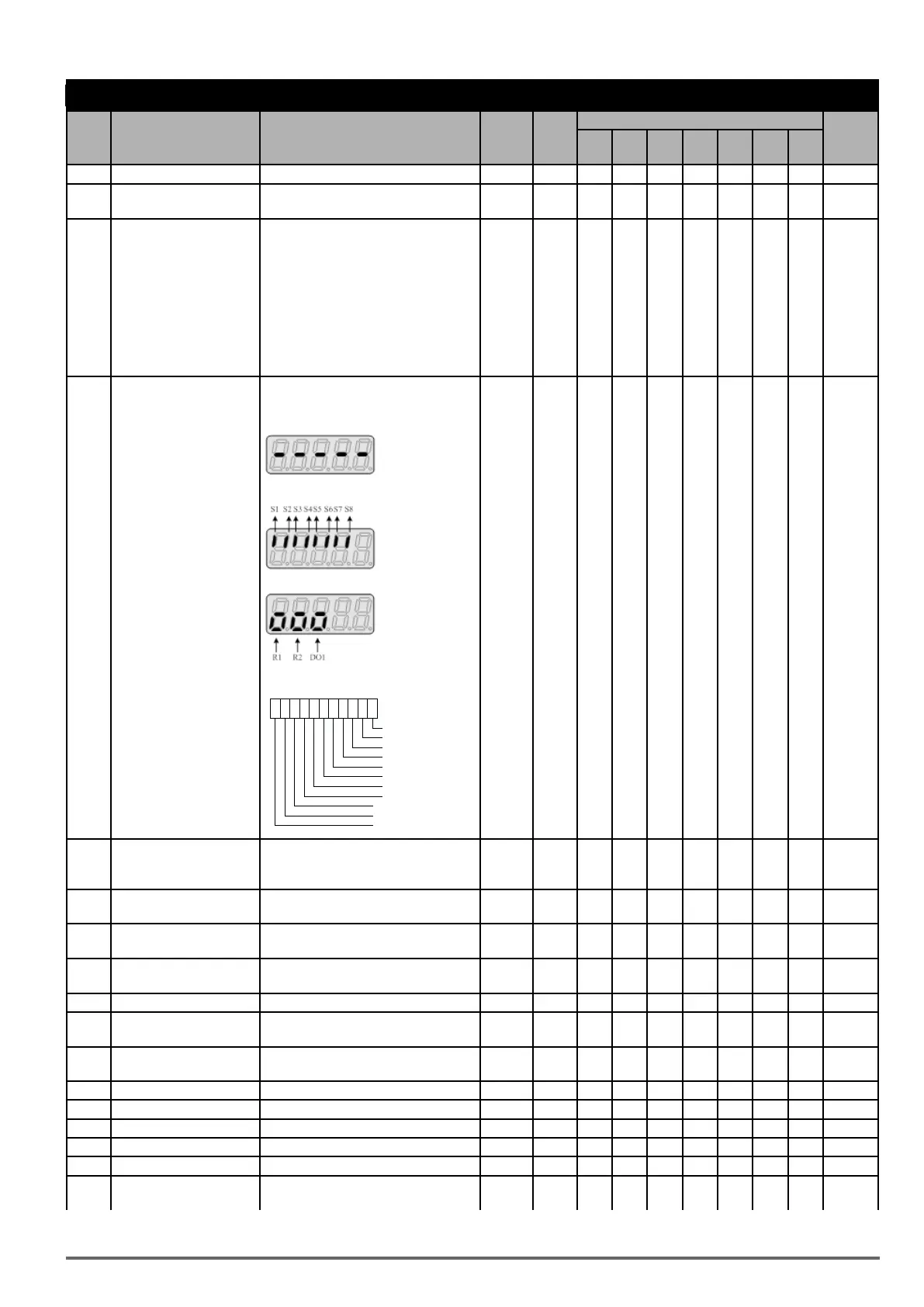

Group 12: Monitoring Parameters
Code Parameter Name Setting Range Default Unit
Control mode
Attribute
V/f
V/f
+PG
SLV SV
PM
SV
PM
SLV
SLV2
2: xxxFL (flow)
12-03 Line Speed Display (LED) 0~65535
1500/
1800
rpm O O O O O O O
*1
*6
12-04
Modes of Line Speed
Display (LED)
0: Display Inverter Output Frequency 0 - O O O O O O O
*1
*6
1: Display Line Speed with integer (xxxxx)
2: Display Line Speed with the First
Decimal Place (xxxx.x)
3: Display Line Speed with the Second
Decimal Place (xxx.xx)
4: Display Line Speed with the Third
Decimal Place (xx.xxx)
12-05
Status Display of Digital
Input Terminal (LED / LCD)
LED display is shown as below: - O O O O O O O
no input
correspondences to input and output
LCD display is shown as below
00 00 00 0 0
Input Terminal(S8)
Input Terminal(S7)
Input Terminal(S6)
Input Terminal(S5)
Input Terminal(S4)
Input Terminal(S3)
Input Terminal(S2)
Input Terminal(S1)
0：OPEN
1：CLOSE
000
Output Terminal(DO1)
Output Terminal(R2)
Output Terminal(R1)
12-06
~
12-10
Reserved
12-11
Output Current of Current
Fault
Display the output current of current fault - A O O O O O O O
12-12
Output Voltage of Current
Fault
Display the output voltage of current fault - V O O O O O O O
12-13
Output Frequency of Current
Fault
Display the output frequency of current
fault
- Hz O O O O O O O
12-14 DC Voltage of Current Fault Display the DC voltage of current fault - V O O O O O O O
12-15
Frequency Command of
Current Fault
Display the frequency command of
current fault
- Hz O O O O O O O
12-16 Frequency Command
If LED enters this parameter, it only allows
monitoring frequency command.
- Hz O O O O O O O
12-17 Output Frequency Display the current output frequency - Hz O O O O O O O
12-18 Output Current Display the current output current - A O O O O O O O
12-19 Output Voltage Display the current output voltage - V O O O O O O O
12-20 DC Voltage (Vdc) Display the current DC voltage - V O O O O O O O
12-21 Output Power (kw) Display the current output power - kW O O O O O O O
12-22
Motor’s Rotation Speed
(rpm)
Display motor’s current rotation speed in
VF/SLV mode
- rpm O O O O O O O
VDI100 • Instruction manual 79
