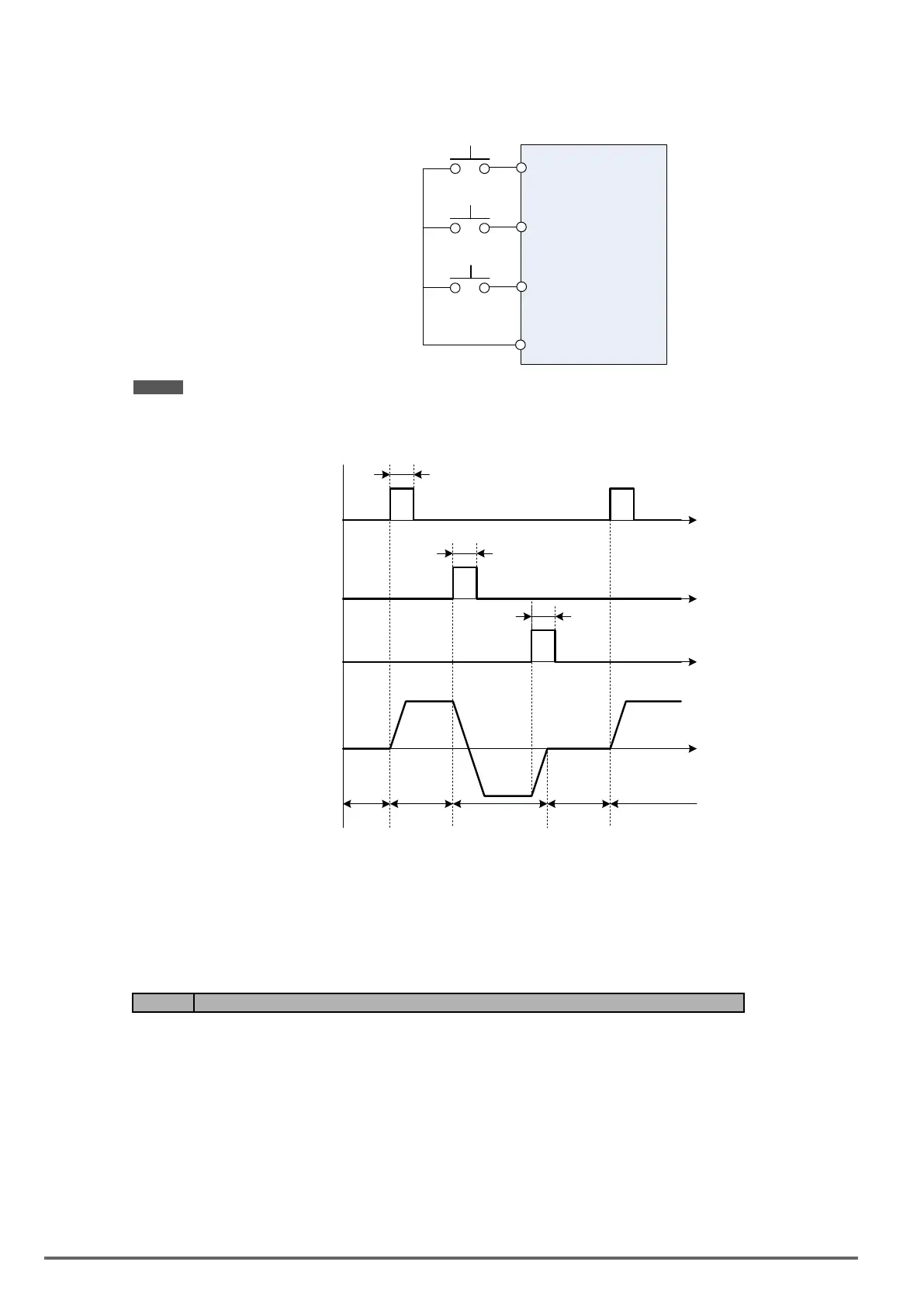

■ 2-wire operation with hold function
To enable 2-wire operation with hold function set any of parameters 03-02 to 03-07 (terminal S3 ~ S8) to 53.
When this mode is enabled set terminal S1 (03-00=0) to forward and S2 (03-01=1) to reverse run command.
S1
S2
S5
Stop
(On: Stop)
24VG
Momentary switches
(Push buttons)
Reverse Run Command
(On: Run Reverse)
Forward Run Command
(On: Run Forward)
Note ! Terminal S1, S2 and S5 must be closed for a minimum of 50ms to activate operation.
The inverter will display SE2 error when input terminals S1-S8 is set to 53 and 26 simultaneously.
Time
Forward
Command
Motor
Speed
>50 ms
OFF
Stop
Forward Reverse
Stop
ON
OFF
ON
OFF
ON
OFF
>50 ms
ON
OFF
(Inverter On)
>50 ms
Reverse
Command
Stop
Command
Time
Time
Time
Forward
00-02=2: Communication control
The inverter is controlled by the RS-485 port. Refer to parameter group 9 for communication setup.
00-02=3: PLC control
The inverter is controlled by the inverter built-in PLC logic. Refer to section 4.5.
Code Parameter Name / Range
00-04 Language
0: English
1: Simplified Chinese
2: Traditional Chinese
3: Turkish
It is required to be with LCD keypad to display the language selection of parameter 00-04.
00-04=0, LCD keypad displays in English.
00-04=1, LCD keypad displays in Simplied Chinese.
00-04=2, LCD keypad displays in Traditional Chinese.
00-04=3, LCD keypad displays in Turkish.
98 VDI100 • Instruction manual
