26 Owner’s Manual

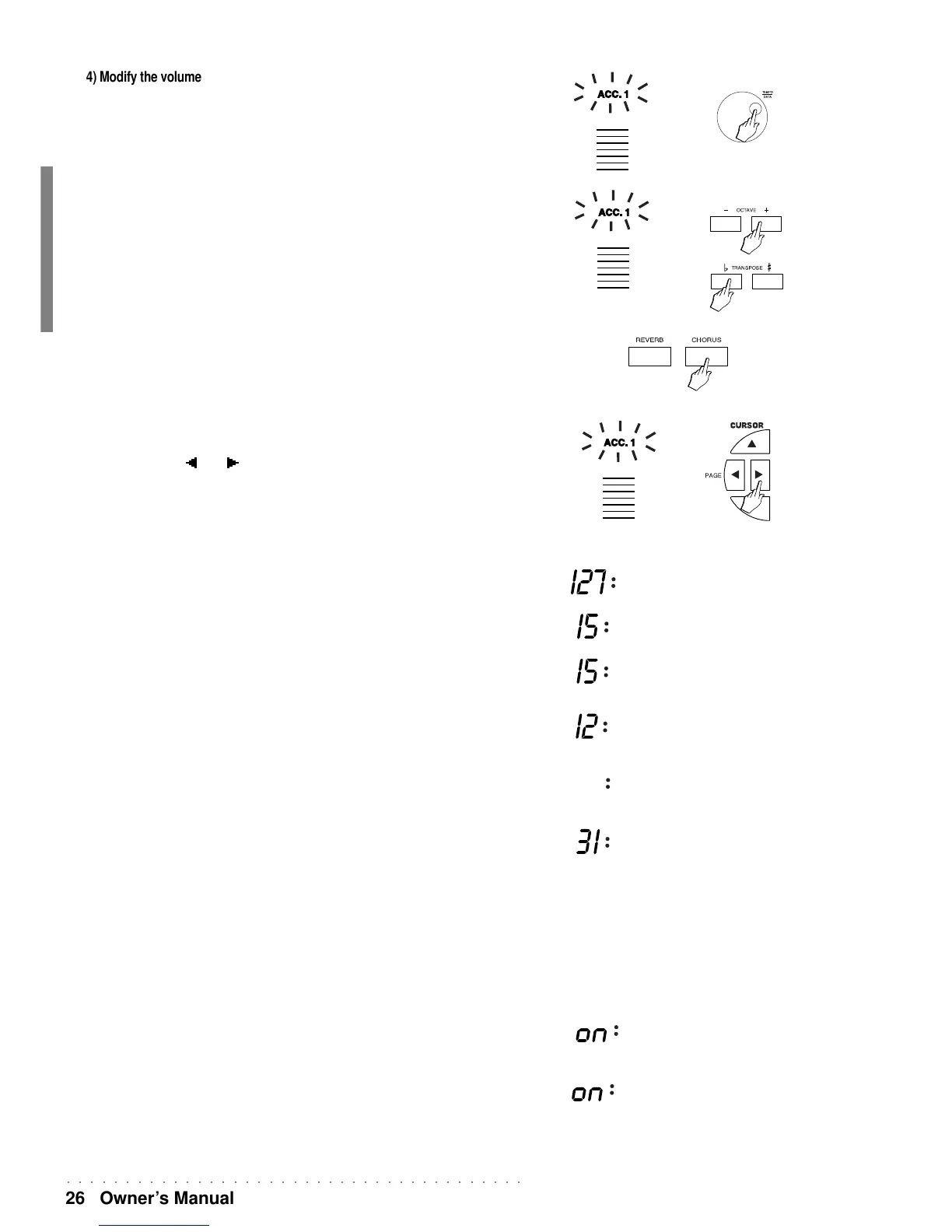

4) Modify the volume of the tracks.
When a track is shown flashing and the assigned Sound appears in the 8 digit display
zone, you can modify the volume level by rotating the DIAL.
5) Transpose the tracks in steps of a semitone or octave.
When a track is enabled for a change (flashing), the OCTAVE +/– buttons allow you to
increase or decrease the Octave setting of the track by one or two octaves. To obtain
semitone changes for a track, rotate the DIAL or use the + and – buttons of the right
selection keypad (with the TRANSP page selected).
6) Modify the effects.
The ON/OFF status of the REVERB and CHORUS functions, the corresponding effect
types and the relative general effect volume settings can be saved to the current Per-
formance.
When the track is enabled (flashing), it is possible to modify all the parameters described
above. Use the PAGE [ ] and [ ] buttons to gain access to the performance parameters;
THE PERFORMANCE PARAMETERS
- VOLUME : (00/127) determines the track volume level.
- REVSEND: (00/15) the value determines the amount of Reverb effect applied to the
track.
- CHOSEND: (00/15) the value determines the amount of Chorus effect (modulation/
delays) applied to the track.
- TRANSP: (-24/+24) determines the transposition (up or down) to apply to the track.
- DETUNE: (-63/+63) determines the fine tuning to apply to the track. Each step is
equivalent to 1/64th of a semitone.
- PAN : 00/31 right, 00 centre, 00/-31 left) determines the position of the sound within
the stereo panorama (left, right or centre).
An anti-clockwise rotation of the Dial sets the PAN to mute; in this situation the sound is
not delivered either left or right; if the effects are active on the track, you will only hear
the processed sound.
In the case of a Drumkit (which contains incorporated pan settings), the display will
show the ‘PAN lock’ setting: in this case, PAN will be deactivated for the Drumkit.
- VOL_PED: (ON/OFF) enables or disables the track for the action of the optional Vol-
ume Pedal (connected to the rear panel jack).
- DAMPER: (ON/OFF) enables or disables the track for the action of the optional Damper
pedal (sustain effect).
05
05
05
Volume >
RevSend>
ChoSend>
Transp.>
Detune >
27
Pan >
Pan Mute
Pan Lock
Vol_Ped>
Damper >
