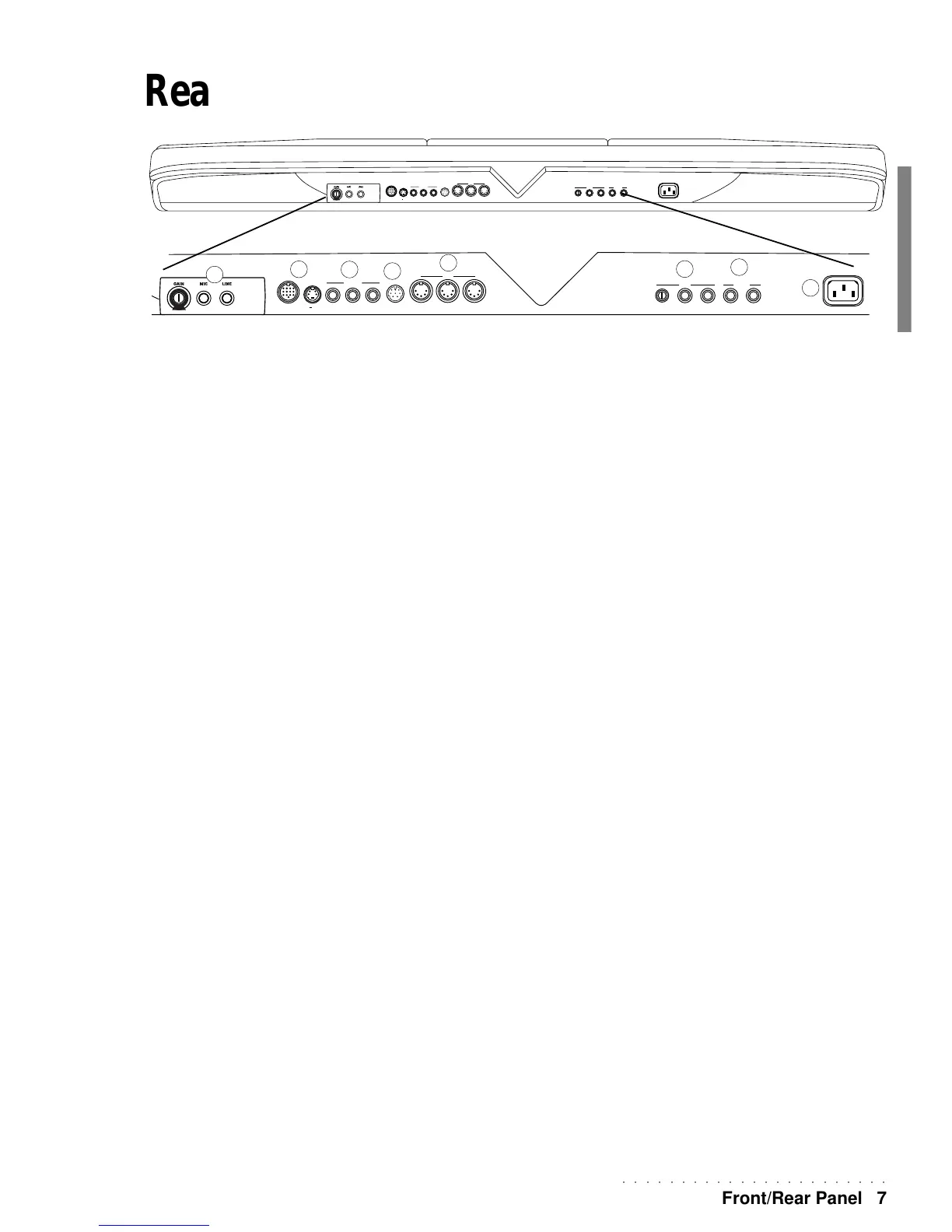

Rear Panel WK2 (Connections)
3
4
2
5
6
1. VOCAL PROCESSOR (optional). A Mic/Line interface installed by
sliding the unit into the corresponding back-panel location. The Vocal
Processor allows you to play through the instrument and add vocal har-
monies to your playing (or to your voice), processes the signals fed into
the Mic/Line jacks with the internal effects and allows you to sample the
signals.
2. VIDEO INTERFACE. An Interface with RGB and S-VHS ports which
allows you to project song lyrics on a domestic television or RGB moni-
tor. A video cable is supplied as a standard accessory.
3. PEDAL (Damper, Pedal, Volume). Jacks for the connection of Switch
action pedals (Damper, Pedal) and a continuous action pedal (Volume).
The DAMPER pedal (optional) allows you to sustain the notes played,
the PEDAL pedal (optional) allows you to control various functions (Switch
UP1/2, Start/Stop, Fill A, Fill IN, Fill B, Intro, Ending), the VOLUME pedal
(optional) allows you to control the overall volume or section volume.
4. COMPUTER. Serial port which permits WK2 to be connected directly
to a computer (Apple Macintosh or IBM PC and compatibles). Data
interchange between WK2 and PC or Mac requires appropriate setting
in the MIDI/General functions .
5. MIDI: A MIDI interface consisting of MIDI IN, MIDI OUT and MIDI
THRU ports to communicate with other external devices fitted with a
MIDI interface (keyboards, computers, etc.). MIDI cables are not sup-
plied with the instrument.
When using WK2 on its own, these ports do not require to be con-
nected.
6. INPUT (RIGHT/MONO - LEFT). Audio input jacks to allow external
instruments to play through the internal amplification of the WK2. The
input level can be controlled with the appropriate potentiometer.
7. OUTPUT (RIGHT/MONO - LEFT). Stereo audio outputs to allows
WK2 to play through an external amplification system (mixer, powered
speakers, etc.).
8. AC POWER CONNECTOR. Connect the supplied power cord to
this connector and the other end to a suitable outlet.
