- 95 -
Inspection
Check whether the parts
wear
.
If badly worn, replace it.
Note:
No damage shoul
d be made to
the gasket and the
box joints in
operation.
Installation
Installation should
be made in acc
ordance with the
reverse order of the rem
oval.
W

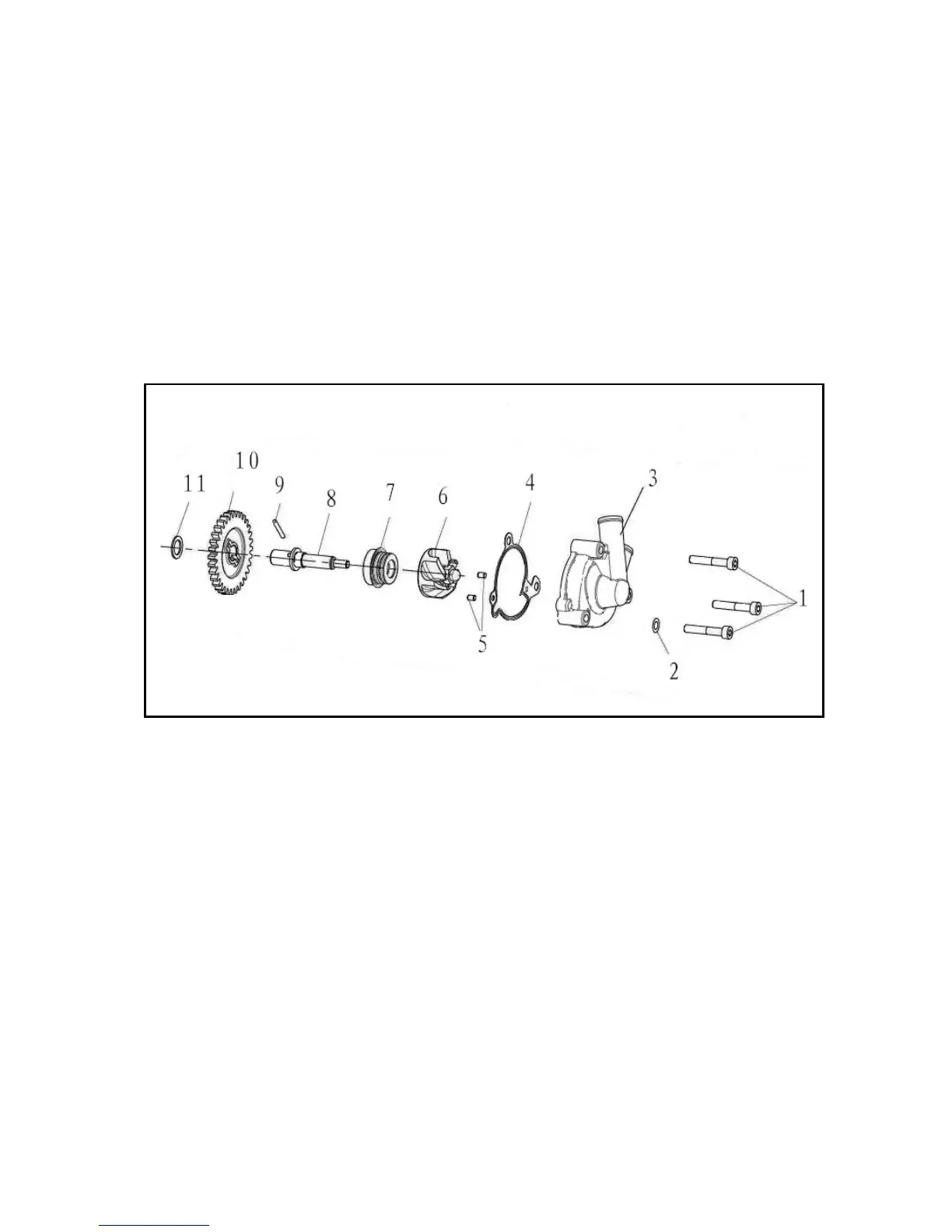

ater pump disassembling
1 Hexagon so
cket cylinder bolt
2 Gasket 6
3 Water pump cover
4 Water cover
seal gasket
5 Pin
6 Impeller
7 Water seal assembly
8 Water pump shaft
9 Pin3*22
1
0 Water pump gear
11 Gasket
99
101
