Generic TR 125 Service Manual

- 49 -
Attention
Without folding and locking odometer
wheel gear units to front axle,
odometer wheel gear units will be out
of shape
After installment of axle, rotate it to
make sure the rotation condition of
autometer drive shaft.
Install front axle and then lock tight.
* Note: the dismounting picture is on page 41 of this manual
Tor sion force
Front axle: 37-44 N·m

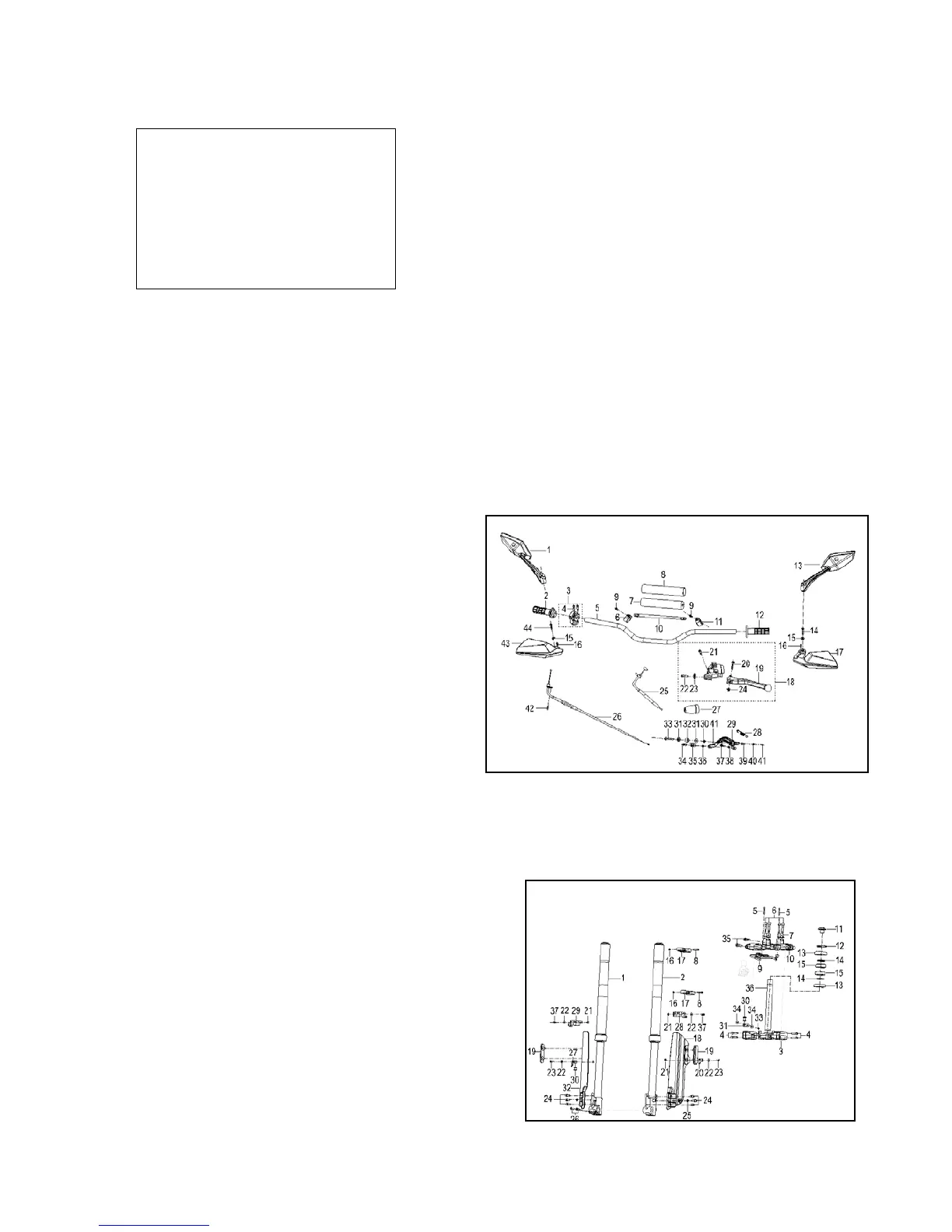

3.4 Direction handle
3.4.1 Disassembly
Disassemble direction handle sheath and rearview
mirror units
Disassemble front brake handle and left handle units
Take down accelerator seats units and right grip
units
Take down accelerator cable units
Take down left direction handle cover
Take down clutch line units and ventilation door line
units
Take down handle fixed bolt and handle.
3.4.2 Installment
Install in the order which is against disassembly
Fixed bolt
Tor sion force：22-29N·m
3.5 Front fork
3.5.1 Disassembly
Disassemble front splash guard
Disassemble front wheel
Disassemble brake hose and autometer wire
Disassemble front shock absorber
Disassemble diversion fixed nut
