9.3 Oil Pump
Disassembly
Remove the right cover, the clutch, and the retaining ring, and then remove the oil pump gears and oil pump
transition gear;
Remove the fixed pin, the screw and the pup cover, and disassemble the oil pump;

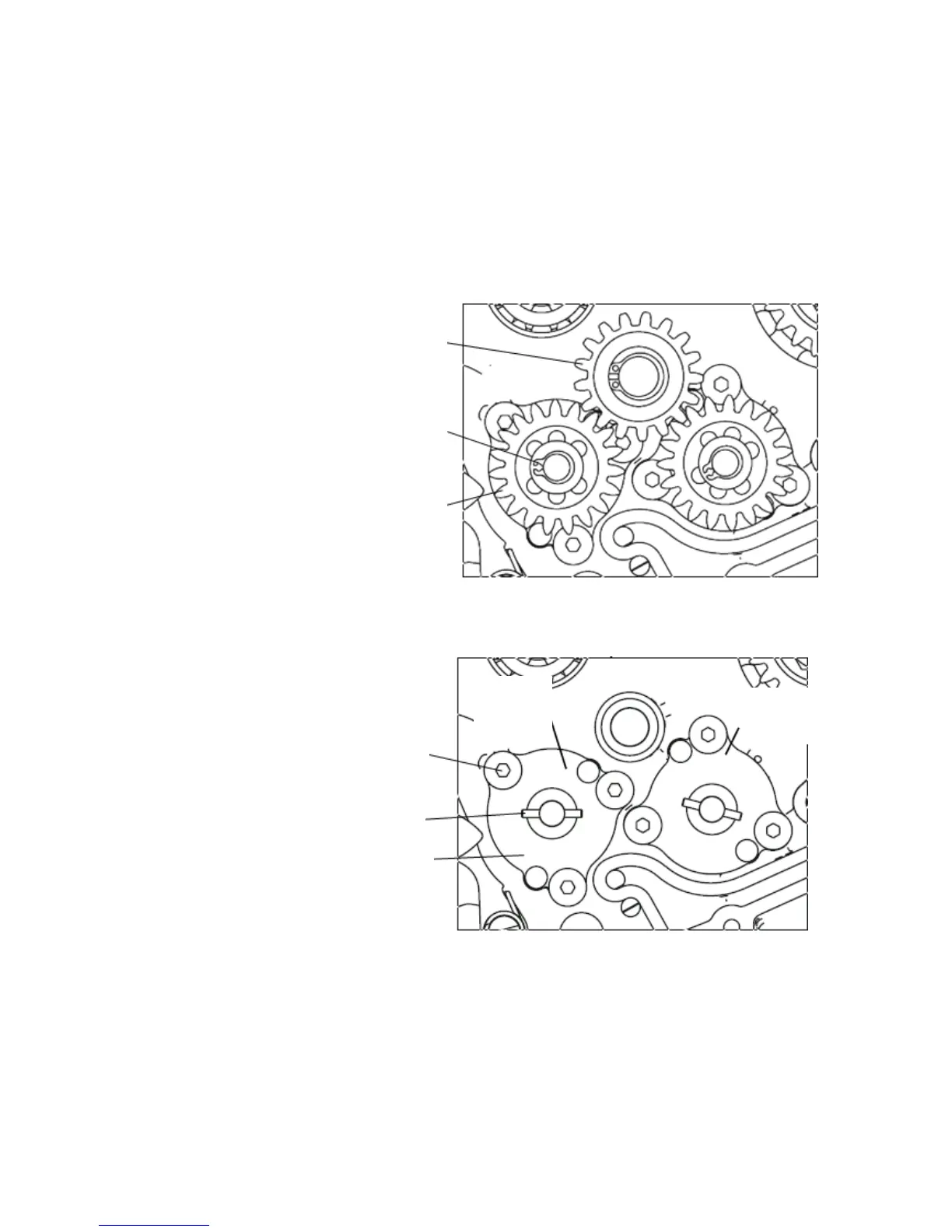

Gas distribution
adjustment gasket
Oil pump
transition
gear
Retaining
ring
Oil pump
drive gear
Bolt
Oil suction
pump
Oil
pressure
pump
Oil pump
cover
Fixed pin
