Generic TR 125 - Rear Swing Arm

- 58 -

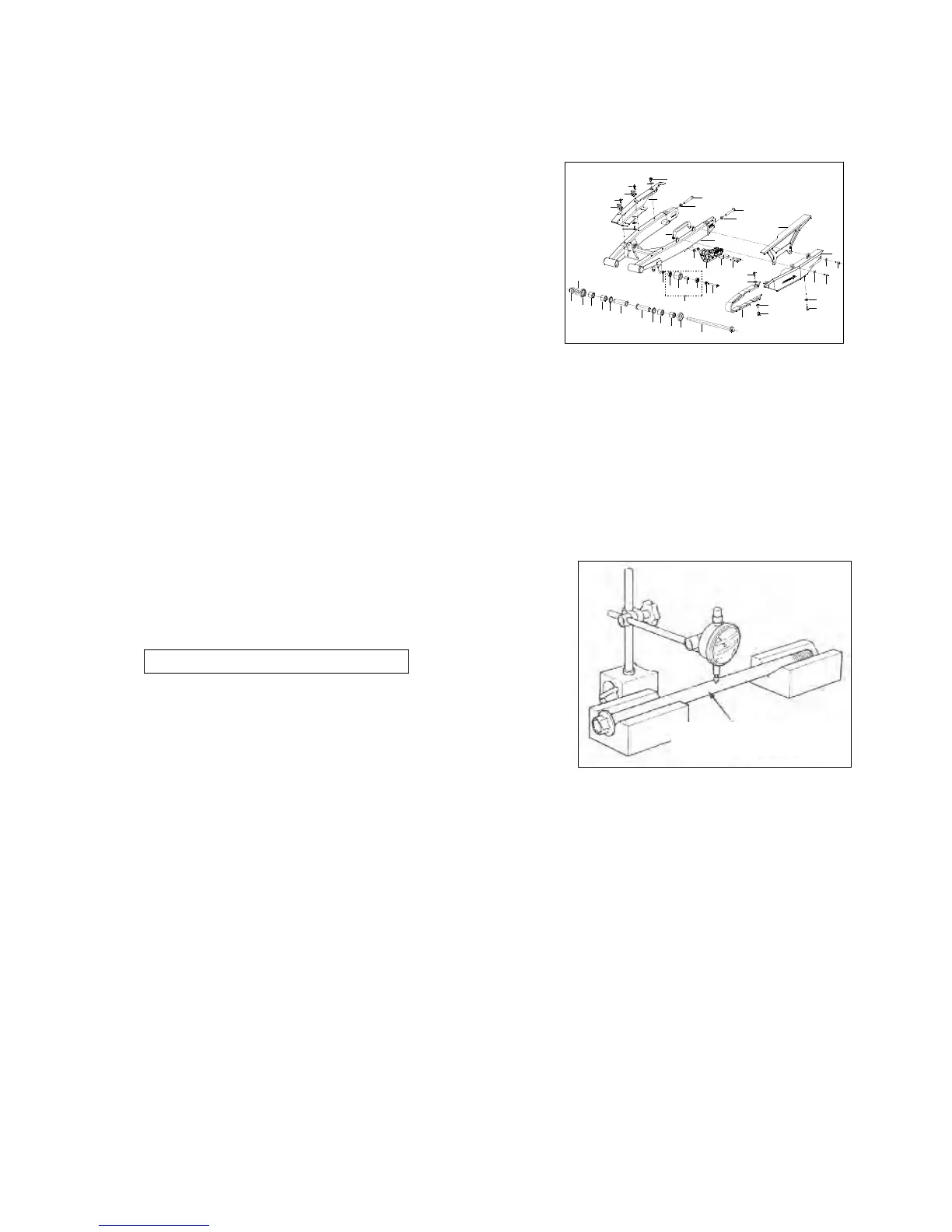

4.5 Rear Swing Arm
4.5.1 Remove Rear Swing Arm
Disassemble chain guard board
Disassemble chain tension wheel and rear axle
Disassemble rear wheel and rear shock absorber
Disassemble rear swing arm installment axle
Take down rear swing arm weld assembly
4.5.2 Rear Swing Arm Inspection
Check rear swing arm installation shaft. Rotate the shaft on a flat
surface or measure it with a dial gauge. If it is bent, replace it.
* Attention
Don’t attempt to straighten bent shaft.
Wash in solvent the components for rear swing arm installation
shaft.
Check sleeve assembly and intermediate sleeve of rear swing arm.
If they are damaged, replace them.
2
8
10
11
12
13
14
15
16
20
22
23
24
25
26
27
2
25
26
25
20
25
1
3
3
5
4
4
5
3
3
6
7
9
7
21
20
22
19
17
18
17
18
15
24
22
20
28
29
30
28
31
Rear rocker arm installment
