Generic TR 125 - Crankcase Connecting Rod Combination

- 122 -

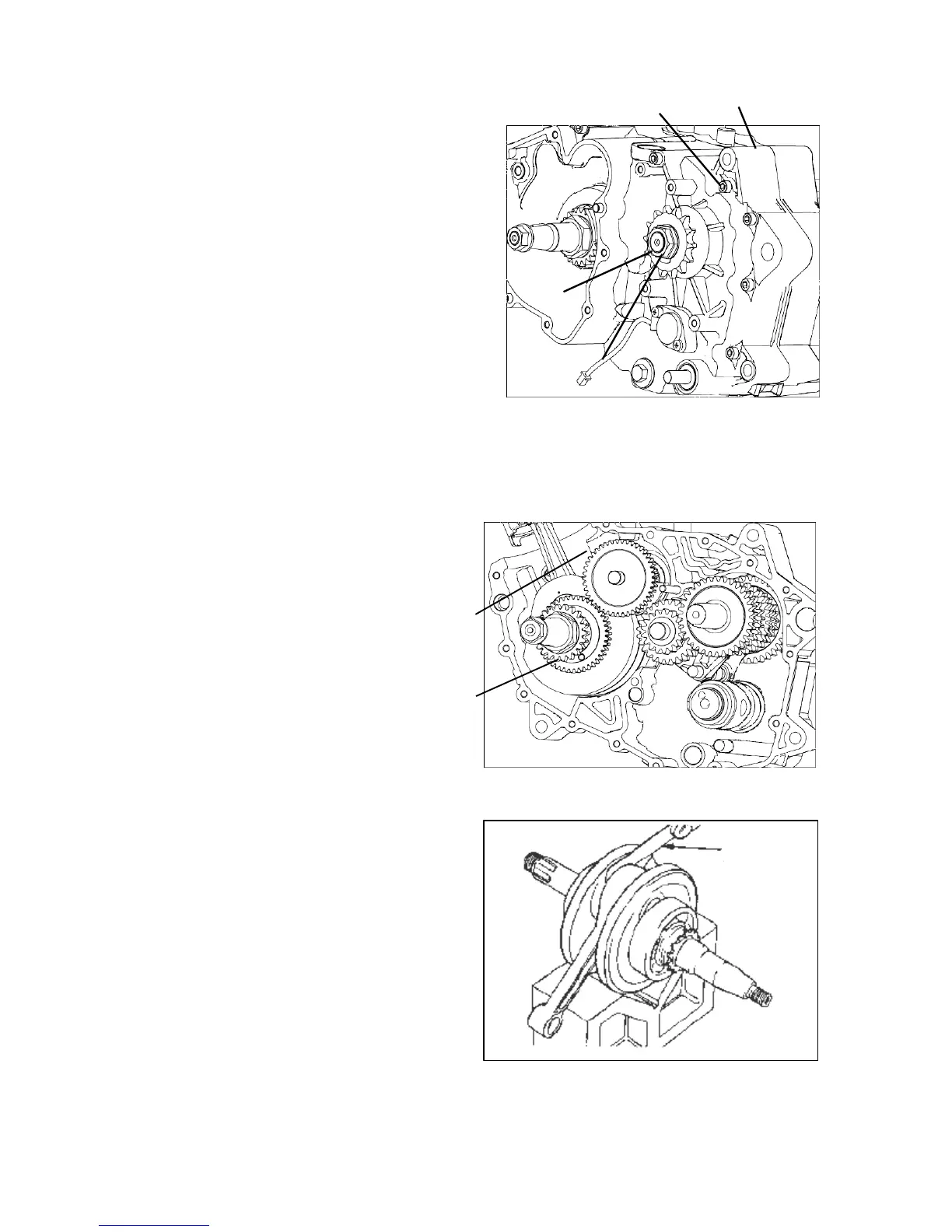

Loosen the mould assembling bolt.
Separate the crankcase.
Attention: There should be no damage on joint case
surface.
Remove the left case.
13.6 Crankcase connecting rod combination
Disassemble
Remove the trunnion shaft combination and
crankcase connecting rod combination from the right
crankcase.
Attention: There should be no damage on joint case
surface.
Inspection
Measure the clearance between the big ends of
connecting rod.
Allowable limit: 0.5 mm.
Nu
t
Chain gea
r
Bol
t
Left case
Trunnion shaft
combination
Crankcase
connecting rod
combination
Plug gauge
