Generic TR 125 - Exhaust System Inspection and Maintenance

- 128 -
Exhaust System Inspection and Maintenance

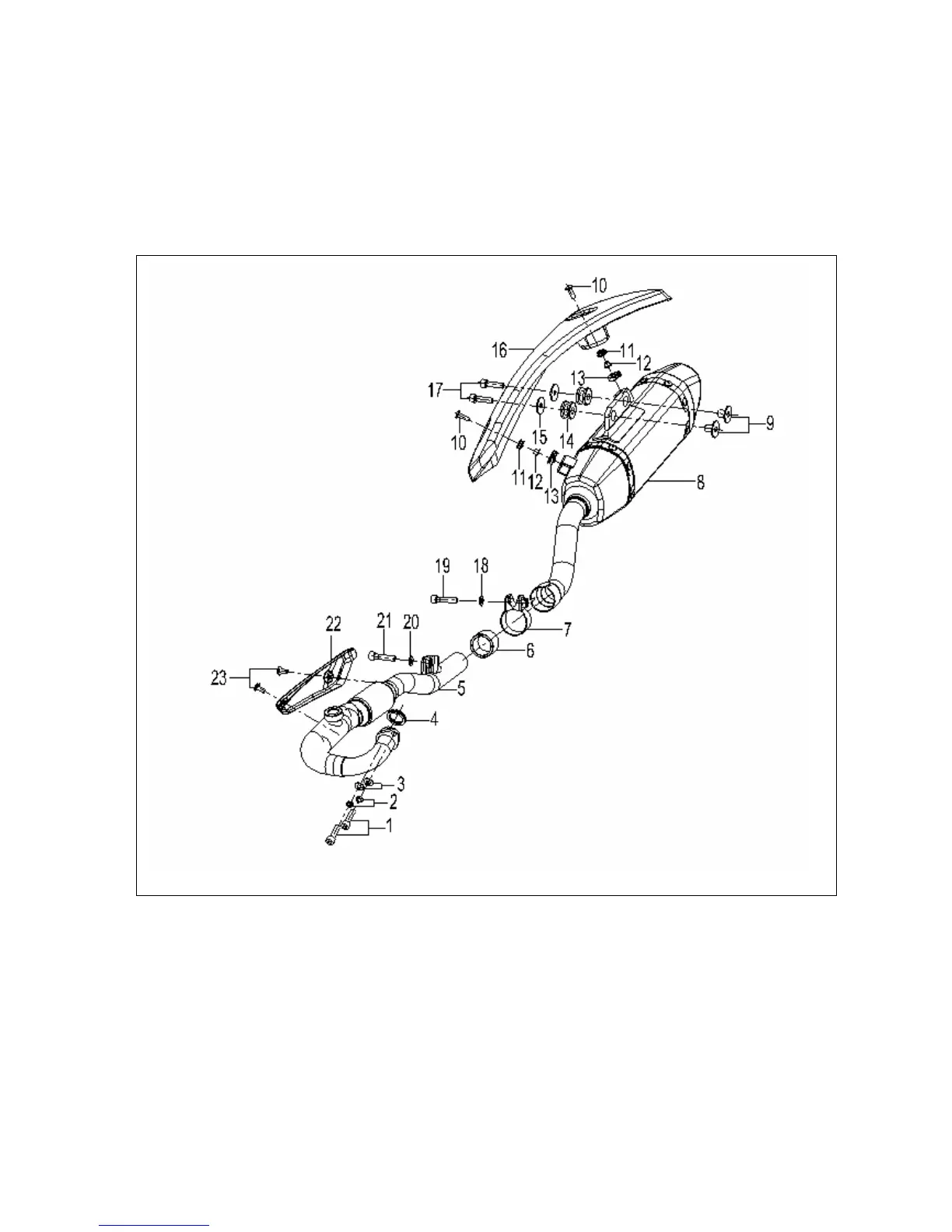

Muffler
1. Socket head cap screw M8*30 2. Spring washer 8 3.Washer 8 4. Exhaust gasket 5. Exhaust pipe
assembly 6. Graphite gasket 7. Clip assembly 8. Muffer cylinder assembly 9. Cylinder liner installation
10. Bolt M6*19 11. Rubber space bush 12. Fasten space bush 13. Card nut M6 14. Heat insulation rubber
gasket 15. Washer φ8*φ27*2 16. Muffer decorative board 17. Socket head cap screw M8*30 18 Washer 8
19. Socket head cap screw M8*40 20 Washer Φ20*Φ8*1.5 21 Socket head cap screw M8*20 22Exhaust
protective shield 23 Combination screw M6*12
