- 38 -
Install front wheel
Install front liquid brake oil pipe and brake cylinder units
Do not get grease on brake shoe
* Attention
If there is grease on brake shoe, brake ability
will reduce and cause brake failure
Fasten bolts to the setting torsion force
Tor sion force:
Former brake disc retaining bolt 5-10N·m
Under the brake fluid before pump installation bolt 22-34N·m
Liquid brake oil pump before installation bolt 5-10N·m
Front wheel spindle 100-113N·m
Front wheel head bolt 5-10N·m

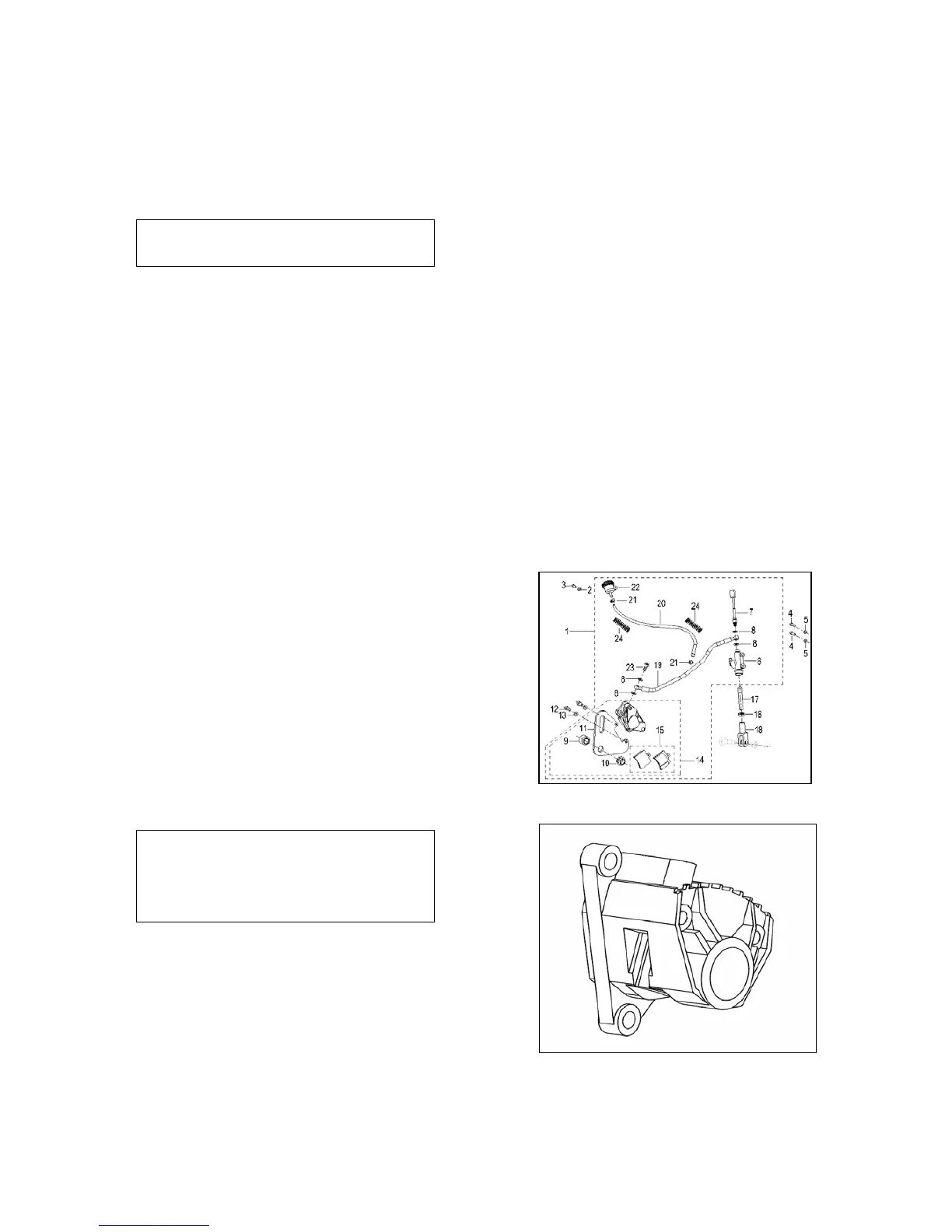

1.4 Back liquid brake
1.4.1 Disassembly
Disassemble back brake oil pump units
Disassemble back brake cylinder units
Disassemble back wheel
Disassemble bake disc from back wheel hub
Note
Generally speaking, brake disc can not be disassembled.
If needs, heat it.
* Attention
• Change of brake shoe
• If using brake shoe again, mark it on its side
before disassembly to make it available back
to the original position
Disassemble the following units from back wheel
Back brake:
1. Back liquid brake units
2. Brake shoe units
3. Lining
4. Connection plate
