- 37 -
* Attention
•Please do not contaminate braking shoe
assembly with oil while assembly or
disassembly
•Please use specified detergent to clean the
braking assembly, or it may reduce braking
performance.
Disassemble front axle
Take down front axle
Disassemble front liquid brake block from front wheel
1.3.2 Check

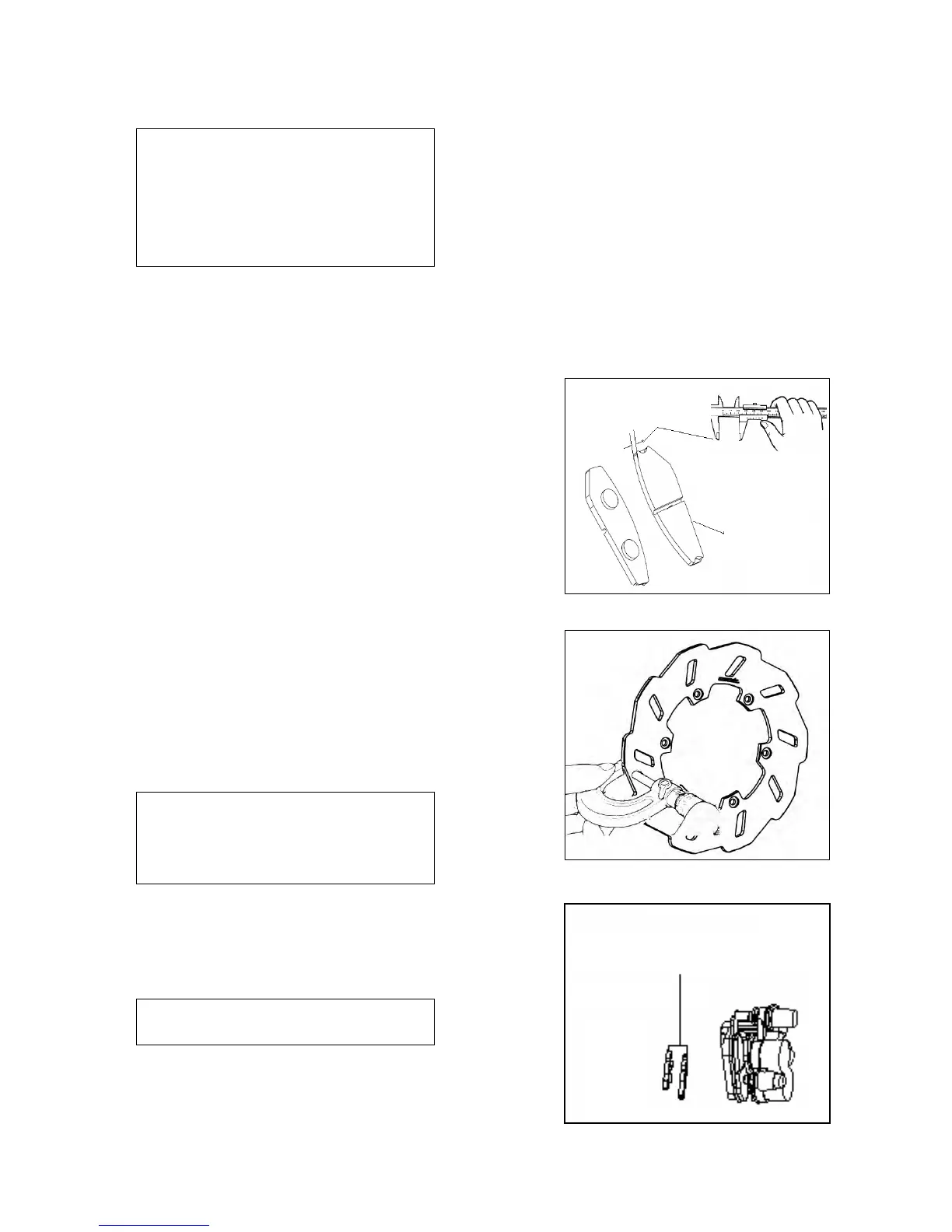

Check the abrasive wear condition of brake shoe. Replace it when
necessary.
Measure brake shoe、brake plate and then write down the
maximum number.
Measure the thickness of brake shoe.
Use limits: brake shoe 4.5mm
Specification
Diameter of front liquid brake plate: φ280mm
*Attention
• Wipe brake plate with #120abrasive paper if
it rusts
• Micrometer is the only choice for
measurement.
If the thickness of brake plate and brake shoe are less than
maintenance value or polluted by grease, please replace them.
* Attention
• Micrometer and vernier caliper are the only
choices for measurement.
1.3.3 Installment
Brake shoe
Brake shoe
Thickness
measurement
