Generic TR 125 Service Manual

- 153 -
16.4 Common troubleshooting
16.4.1 Maintenance tools
a) Disassemble of the electronic control system components - withdrawal tools of automotive
mechanical parts are often used
b)
Electronic control system circuit and system signals - digital multimeter (with buzzer)
c)
Fault diagnosis of electronic control system and detection of engine's working condition


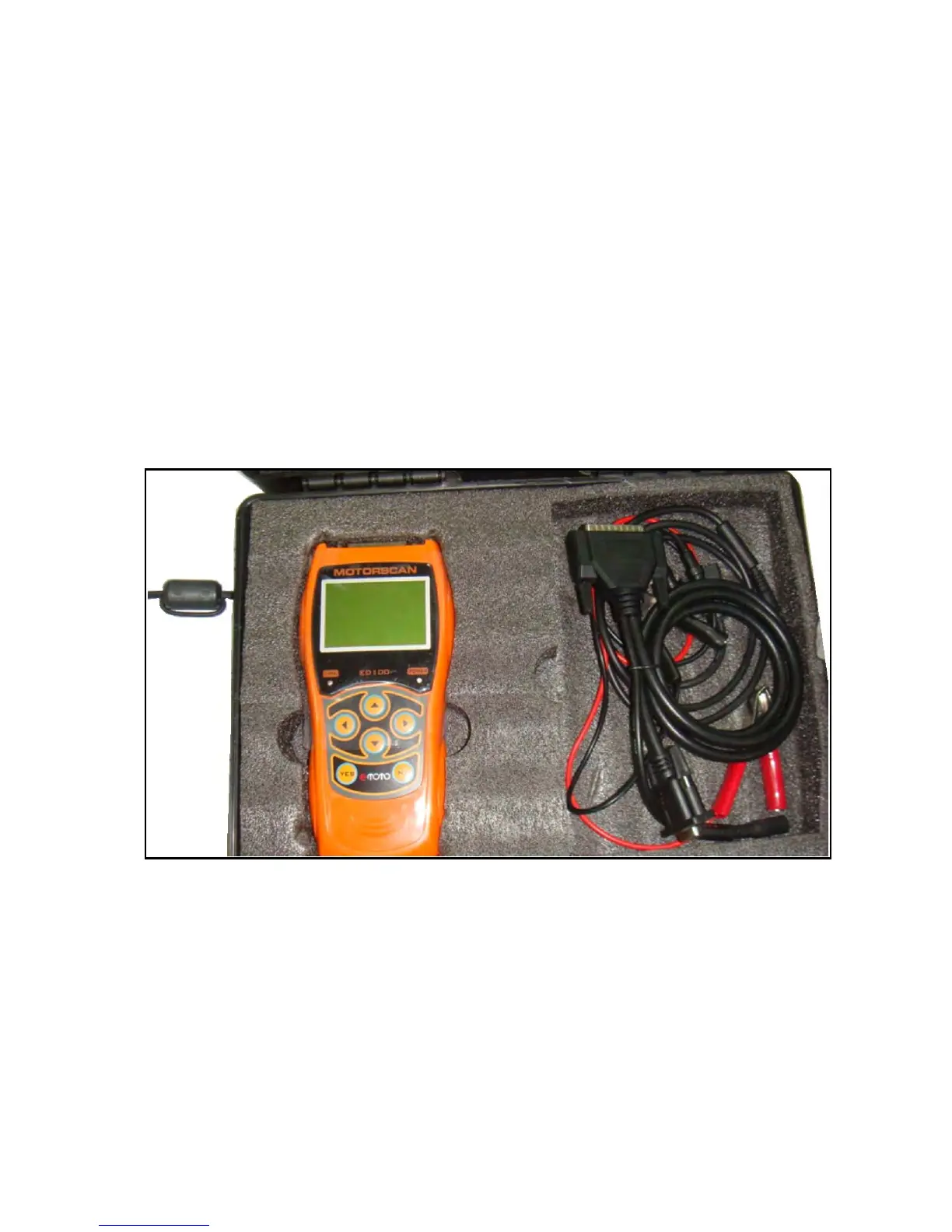

Electronic control system malfunction diagnostic apparatus (recommended)

Failure diagnostic software (PCHUD,) and interface connection wire (conditional use)
d)
Electronic control system failure fault code table (emergency use)
e)
Fuel pressure gauge, range 0 ~ 300kPa
16.4.2 Diagnostic apparatus displays engine operating data stream
Use the engine operational data stream the diagnostic apparatus displays to analyze and determine the engine
failure.
16.4.2.1 Step 1
a) Engine wiring harness and vacuum tube - may affect the system to control air flow and fuel supply
