- 64 -

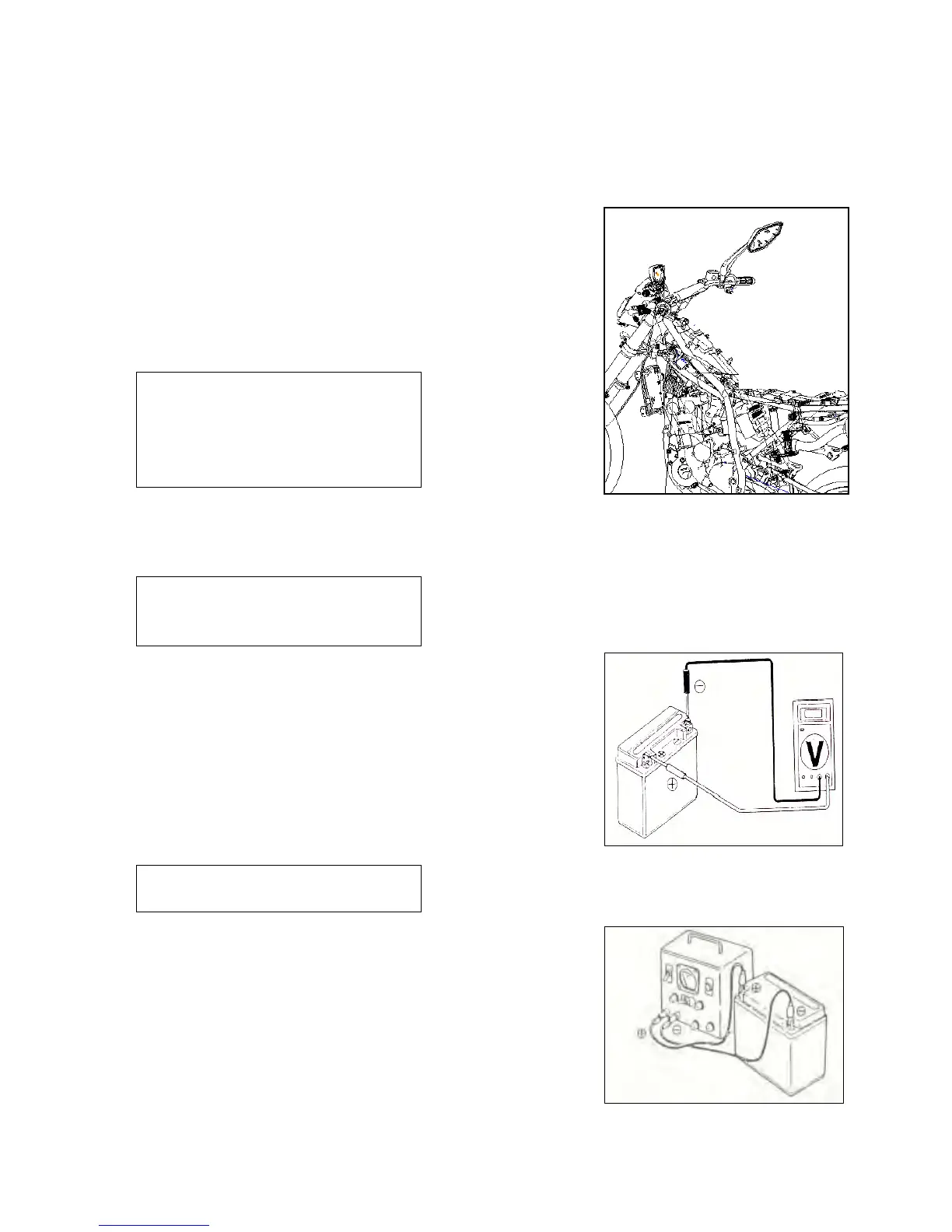

5.3 Storage Battery
5.3.1 Battery Removal
Open seat cushion
Disassemble left guard board
Disassemble negative guide line first and then the positive guide line
Take out storage battery
Warning!
During positive lead wire disconnection, be
sure to prevent the tools being used from
touching the frame; or it will result in short
circuit sparks, which may ignite gasoline
and damage battery. It is dangerous!
Install the battery in the reverse order of removal.
*Attention
To avoid short circuit, please connect
positive (+) lead wire first, then the
negative (-) lead wire.
Check of charging situation (open-circuit voltage)
Open sear cushion
Open air filter’s cover and disassemble storage battery joint guide line
Measure voltage between terminals of the battery
Fully charged: 13.1V
Undercharged: 12.3V (battery does not work for 1hour)
* Attention
A voltmeter shall be employed to check
recharged battery.
5.3.2 Charging
Connection method:
Positive pole of battery charger is connected to battery positive lead
wire; Negative pole of battery charger is connected to battery negative
lead wire.
Storage battery
