4.3.3 Installation
Install the rear wheel in the reverse order of removal and tighten the nut.
Rear wheel shaft locknut
Tightening torque: 100-113N·m

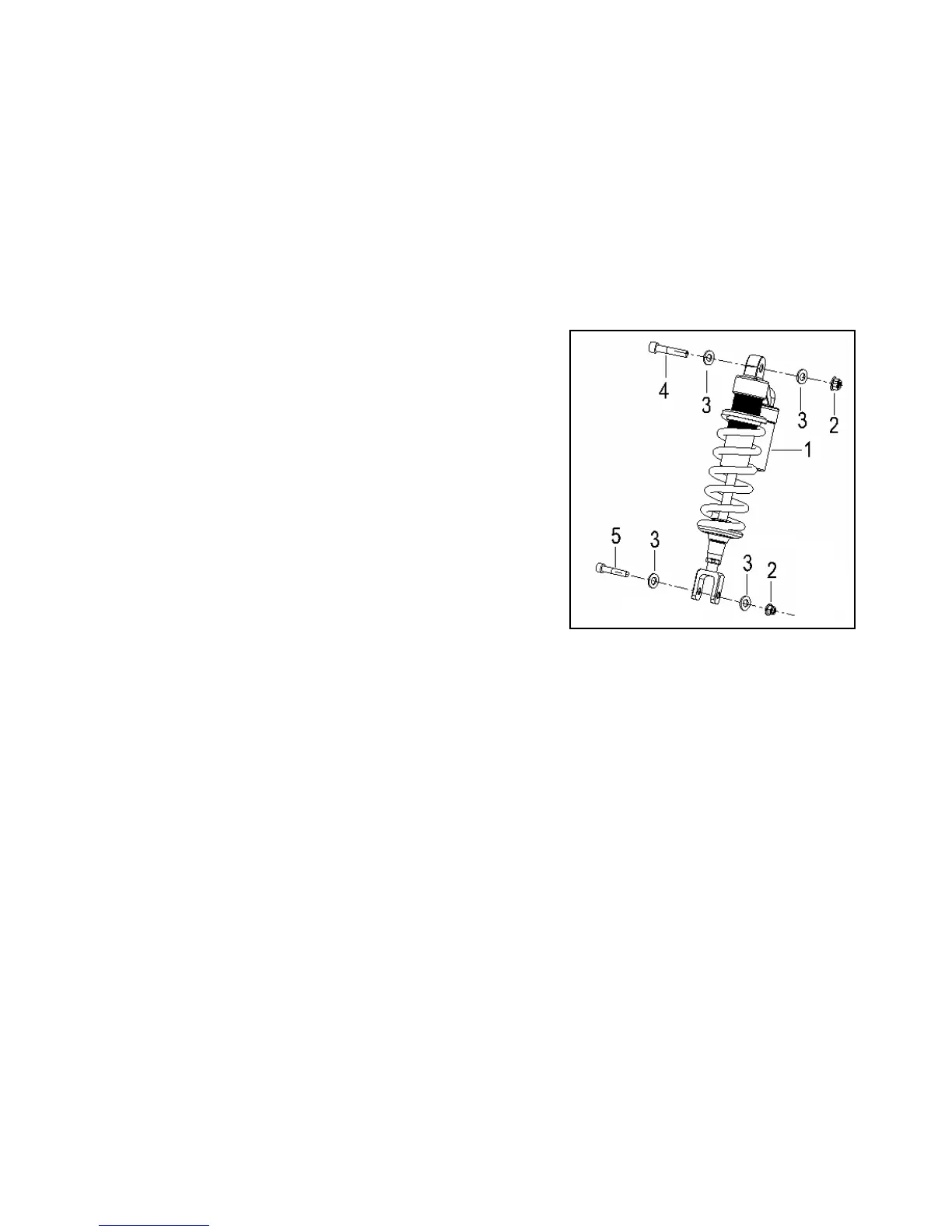

4.4 Rear Shock Absorber
4.4.1 Disassemble rear shock absorber
Disassemble body guard board
Disassemble rear splash guard
Disassemble tool box
Disassemble air filter
Disassemble rear wheel shock absorber fixed bolt
Take down rear shock absorber
4.4.2 Rear Shock Absorber Inspection
Visual inspection of shock absorber to check whether there is damage
Check the following items:
—bending or damage of shock absorber pipe
—out of shape or oil leakage of shock absorber
—abrasive wear or damage of block rubber
—damage of spring
Check damage or abrasive wear of other parts
Replace shock absorber if necessary
4.4.3 Install Rear Shock Absorber
Install the rear shock absorber in the reverse order of removal.
Install upper locknut and lower mounting bolt on the rear shock absorber
Tighten them to specified torque.
Tor sion force:
Upper hold-down nut: 37-44N·m
Bottom hold-down nut: 37-44N·m
