3.3 Front wheel
3.3.1 Disassembly
Support the bottom of body to float front wheel
Disassemble bolt and take down front splash guard and odometer guide line.
Disassemble front brake hose
Disassemble front axle jam nut
Disassemble front axle
Disassemble front wheel
Disassemble oil seal with oil seal stripping attachment and bearing with bearing stripping attachment.
*Note: dismounting picture is on page 41 of this manual
3.3.2 Inspection

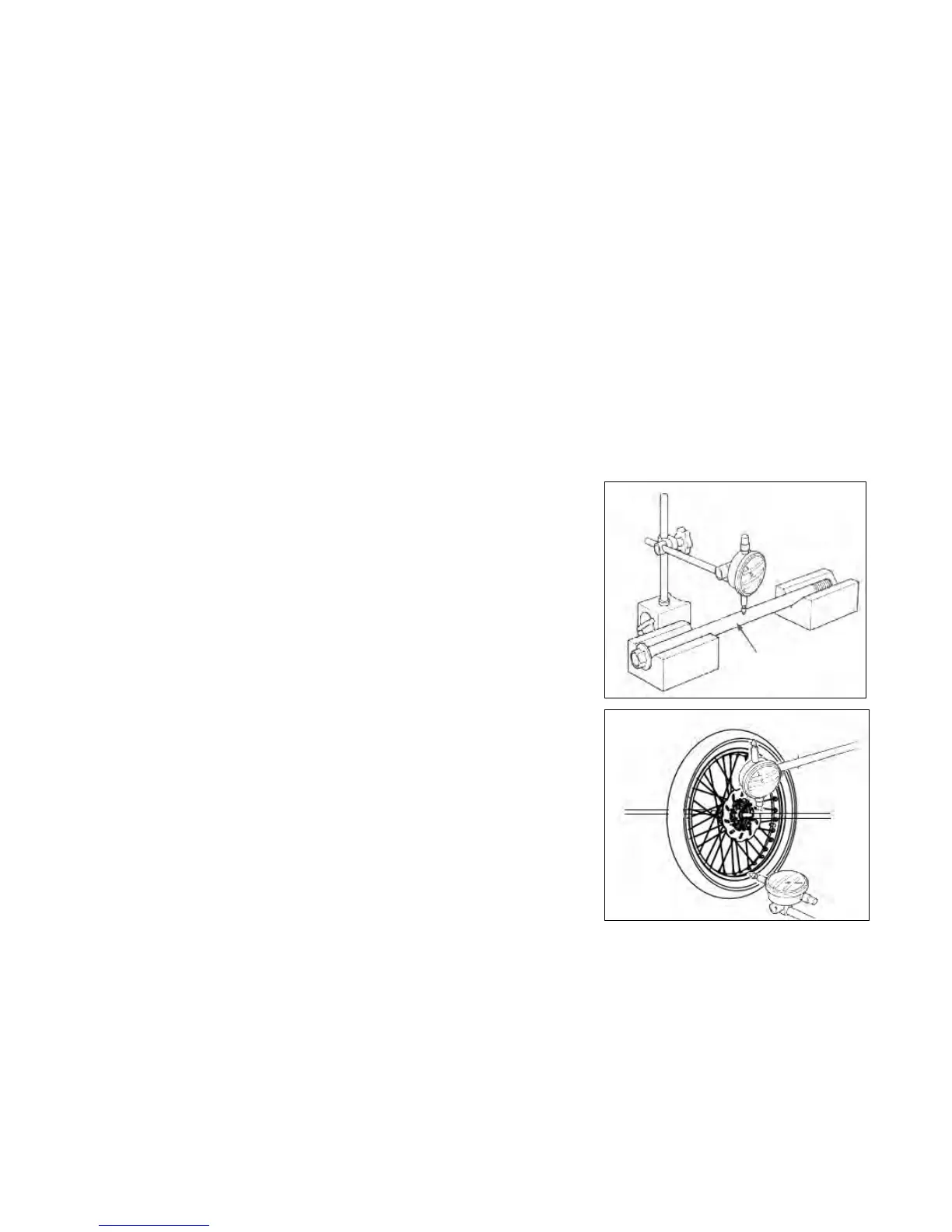

3.3.2.1 Shaft Bow Inspection
Place the shaft onto a V block and measure its eccentricity with a dial
gauge.
Service limit: When the measured value exceeds 0.2mm, replace it.
3.3.2.2 Wheel Shimmy Inspection
Service limit:
Longitudinal: replace it when it is over 2.0mm
Transversal: replace it when it is over 2.0mm.
Axle
