Generic TR 125 Service Manual

- 36 -
z Deviation of wheels
z Block or restriction in brake hose joints
z Bending/incompletion of braking plate
z Caliper slides abnormally
1.2.6 Brake drag
z Braking footstep/plate is dirty
z Deviation of wheels
z Abrasive wear of braking footstep/plate
z Bending/incompletion of braking plate
z Caliper slides abnormally
1.2.7Brake handle/footstep is hard
z Block or restriction of brake system
z Adhere/abrasive wear of caliper piston
z Caliper slides abnormally
z Block/restriction of brake fluid pipe
z Sealing gasket abrasive wear of caliper piston
z Adhere/abrasive wear of master cylinder piston
z Braking handle/footstep is curving
1.3 Front Hydraulic Brake
1.3.1 Removal
* Attention
• Replace braking shoe assembly.
• If a braking shoe assembly will be used
again, please mark it on the side before
removal so as to re-install it to its
original place.
Loosen brake cylinder units and fix bolts.
Disassemble brake cylinder units from front damper
Disassemble the following units from front damper:

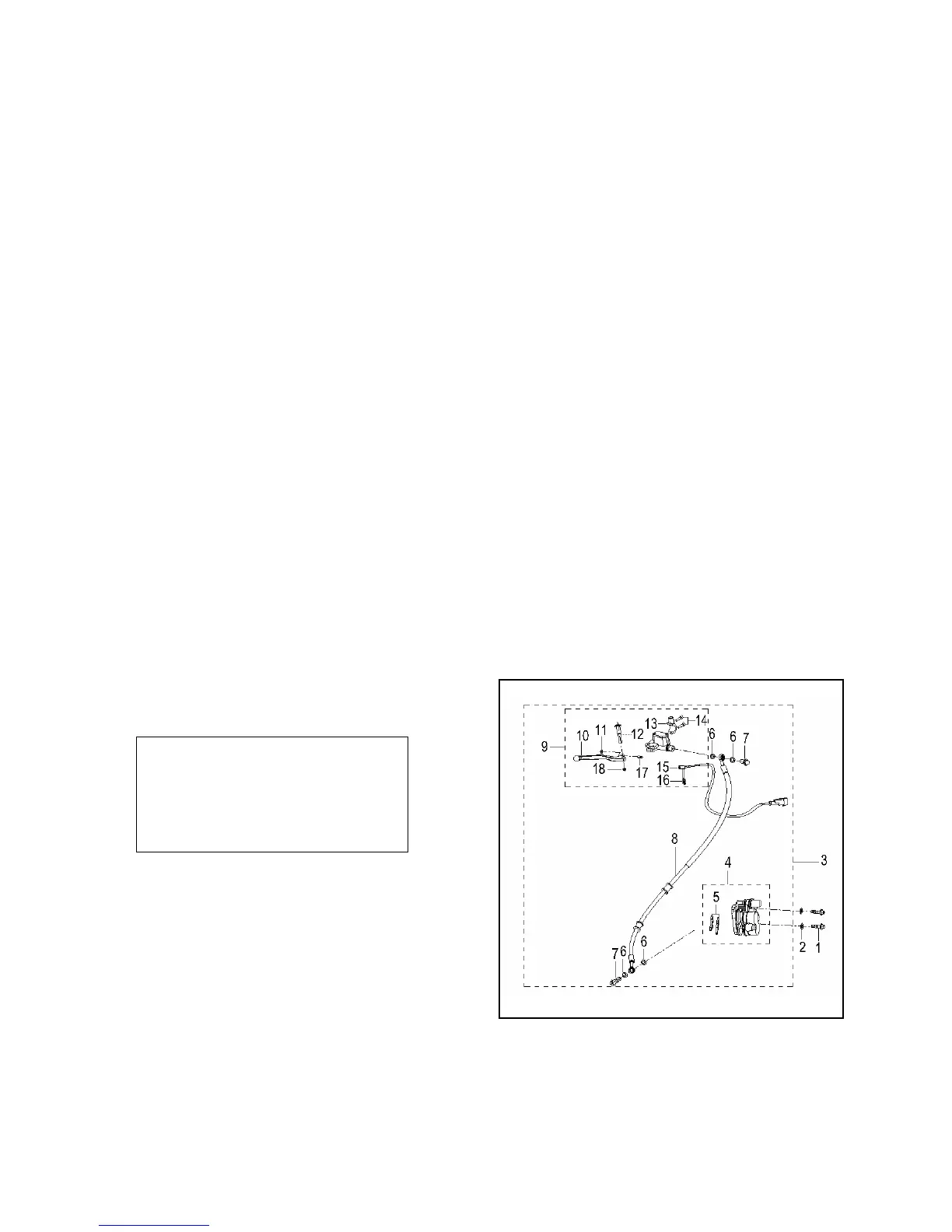

Front liquid brake block
1. Braking shoe
2. Front brake block oil pipe
3. Brake cylinder units
