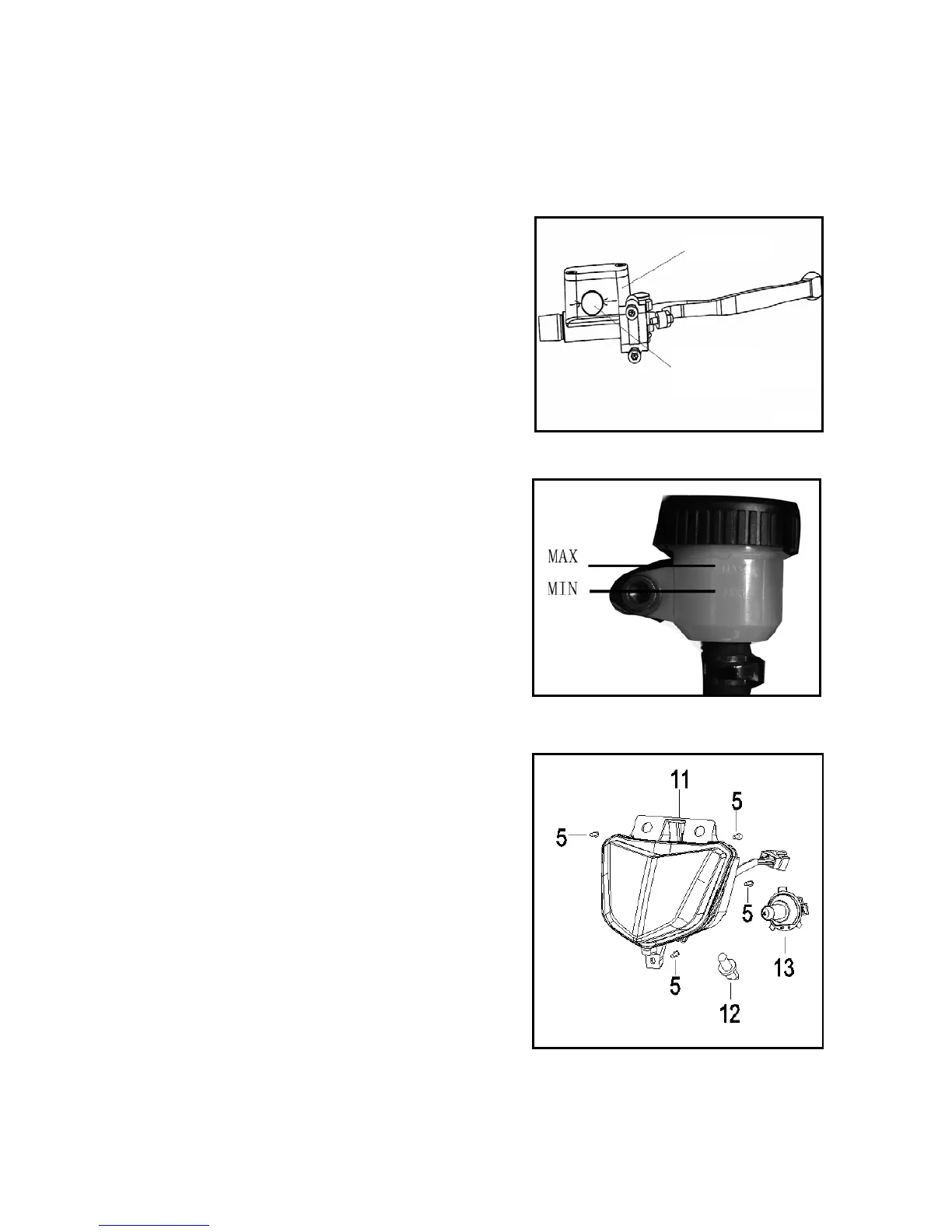

Front/back brake shoe’s abrasive wear
Front brake shoe’s abrasive wear
When braking exactly, check oil level from oil immersion
lens. If liquid level of brake fluid is below the arrow position
in the right picture, brake shoe should be replaced
immediately by a new one.
Back brake shoe’s abrasive wear
When braking exactly, look oil cup to check oil level of
brake fluid. If the level is below MIN, brake shoe should be
replaced as soon as possible.
Headlight
Adjustment
Optical axis adjustment of headlight is loosening headlight
spinning adjusting bolt and then rotating.
Oil pump
Oil immersion lens
