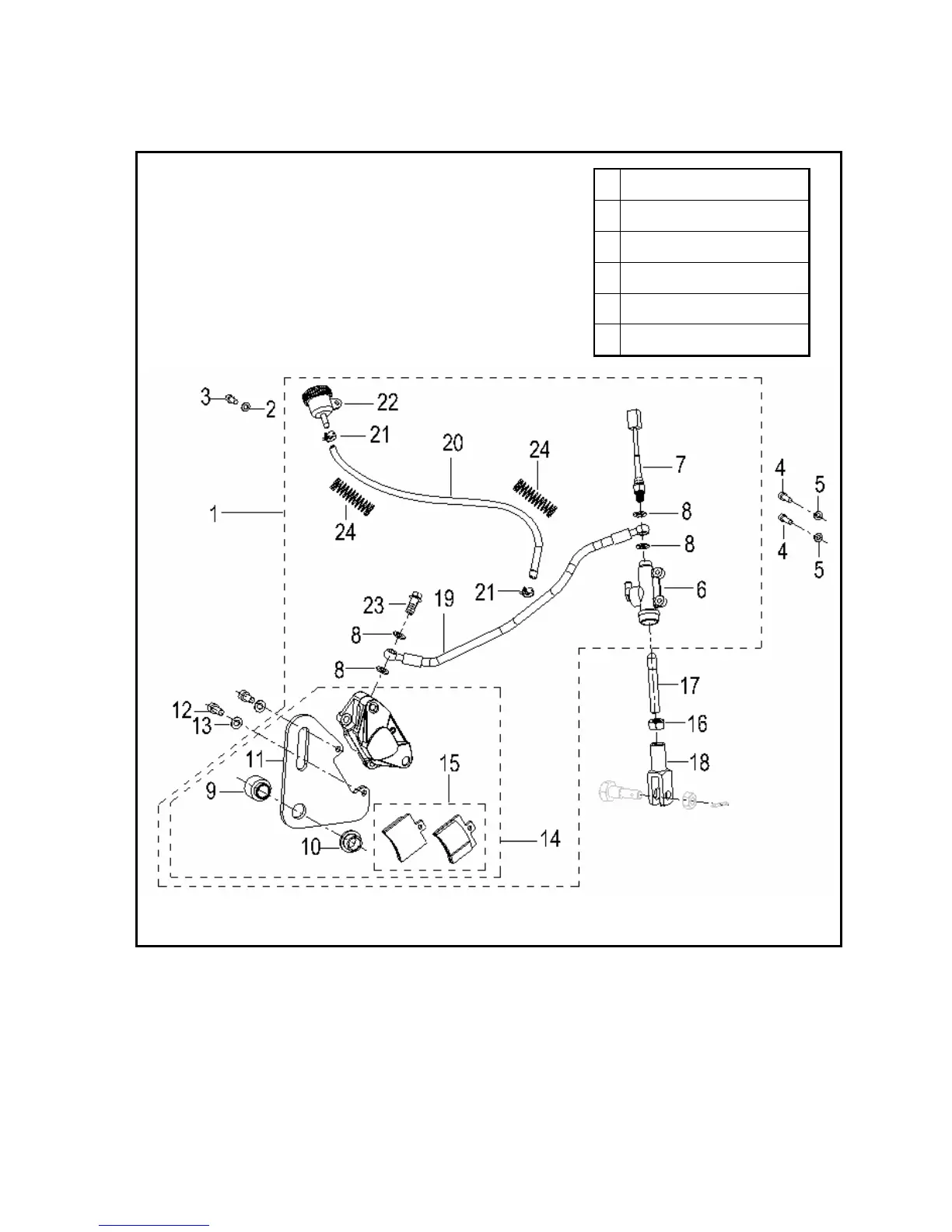

Back liquid brake block
 Rear liquid brake block units  Gasket 6  Inner hexagon screw M6*16  Inner hexagon screw
M6*16  Gasket 6  Oil pump assembly  Brake switch assembly  Seal ring  Lining I Lining II 
Connecting plate Inner hexagon screw M8*20 Gasket 8  Brake cylinder B  Friction plate units
 Nut M6  Draw bar  Draw handle  Brake hose unit  Oil tube (21) Hoop (22) Oil cup units
(23) Hexagon flange head tapping screw (24) Protecting spring
A
Thickness of brake shoe: 7.0mm
Use limits: 3.7mm
B
Torsion force to Install Bolt 3:
5-10N·m
C
Torsion force to Install Bolt 4:
5-10 N·m
D
Torsion force to Install Bolt 7:
30-35 N·m
E
Torsion force to Install Bolt 12:
22-34N·m
F
Torsion force to Install Bolt 23:
30-35 N·m
