- 41 -

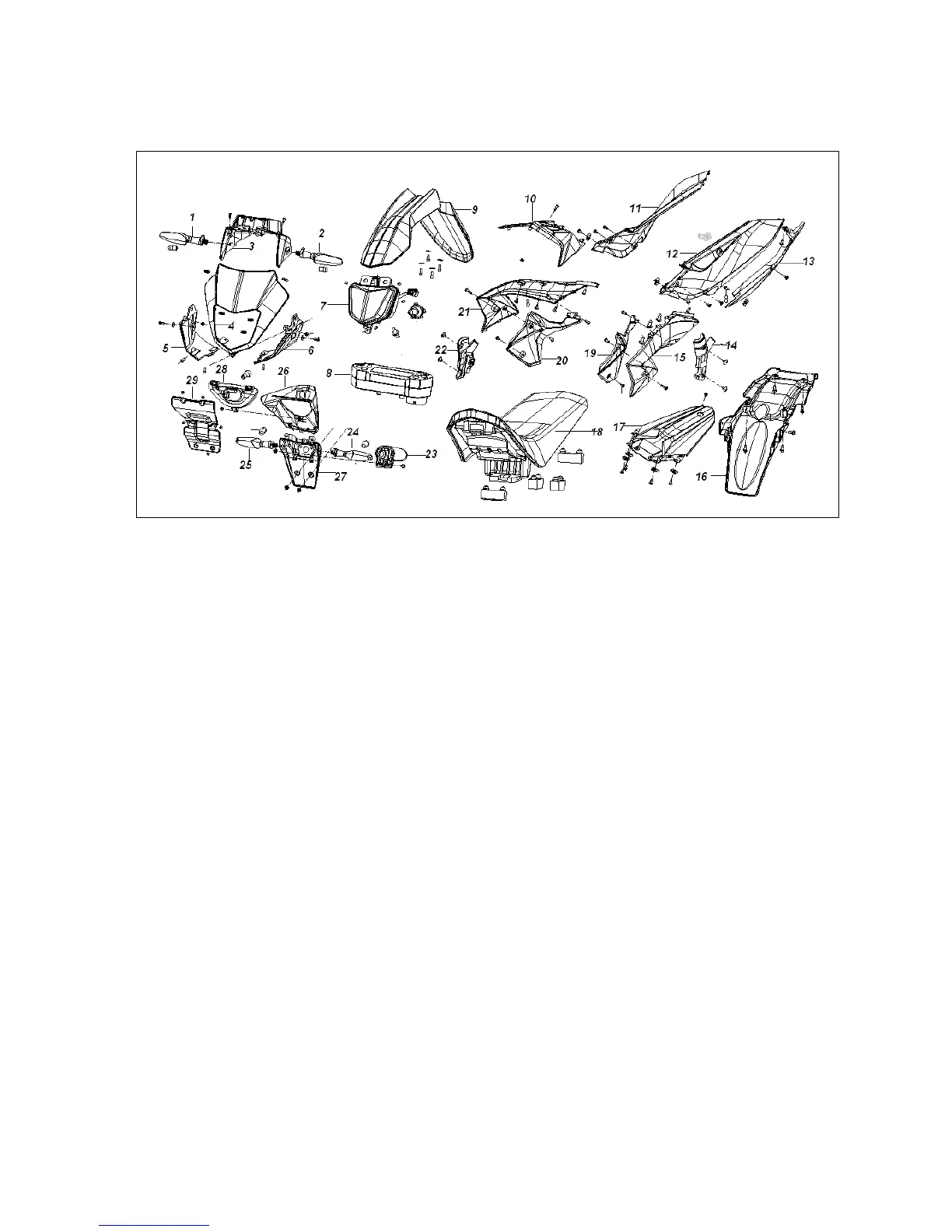

Body outer panels
1 Front and right turn light 2 Front and left turn light 3 Front night-light fixed position 4 Pod
5 Right mounting plate of pod 6 Left mounting plate of pod 7 Headlight 8 Instrument assembly
9 Front splash guard 10 Right and left oil tank guard plate gusset piece 11 Right back plate 12 Left
back plate 13 Right and left back plate 14 Left dale 15 Back plate of left oil tank 16 Front of back
splash guard 17 Right and left guard plate gusset piece 18 Seat cushion 19 Left kneelet 20 Right
kneelet 21 Back plate of right oil tank 22 Right decorative plate 23 Back license plate lamp 24 Back and
left turn light 25 Back and right turn light 26 Back splash guard 27 Back splash guard 28 Back taillight
29 Back of back splash guard
