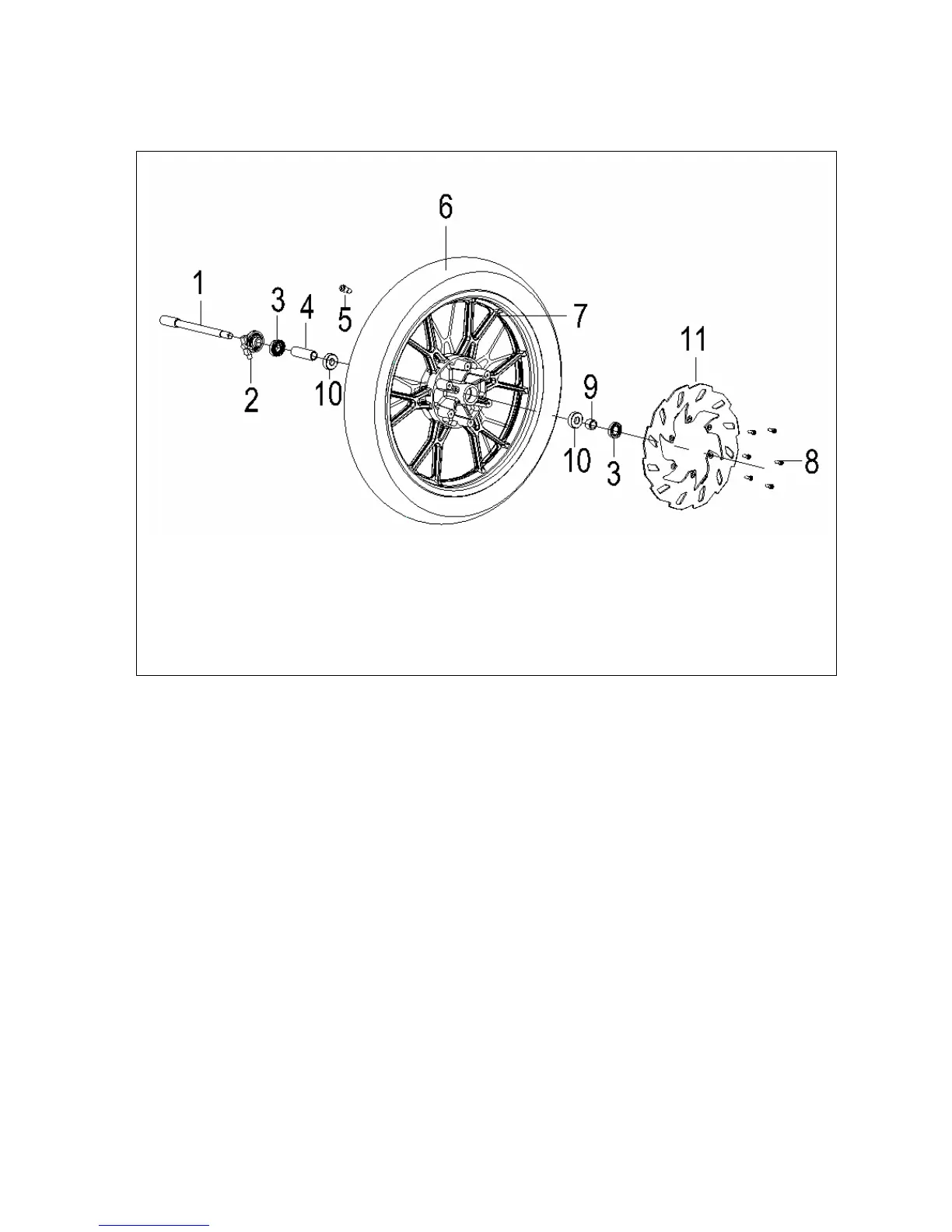

Front wheel
1 Front wheel axleM14*1.5*219 2 Odometer wheel gear units 3 Front wheel sealed units 4 Front wheel
middle shaft sleeve 5 Cycle valve6 vacuum tyre 100/80-17 7 Front wheel ring 8 Liquid brake plate
erection bolt
9 Front wheel left shaft sleeve 10 Antifriction bearing 6202-2RS 11 Front brake plate
