5.8.2 Installation

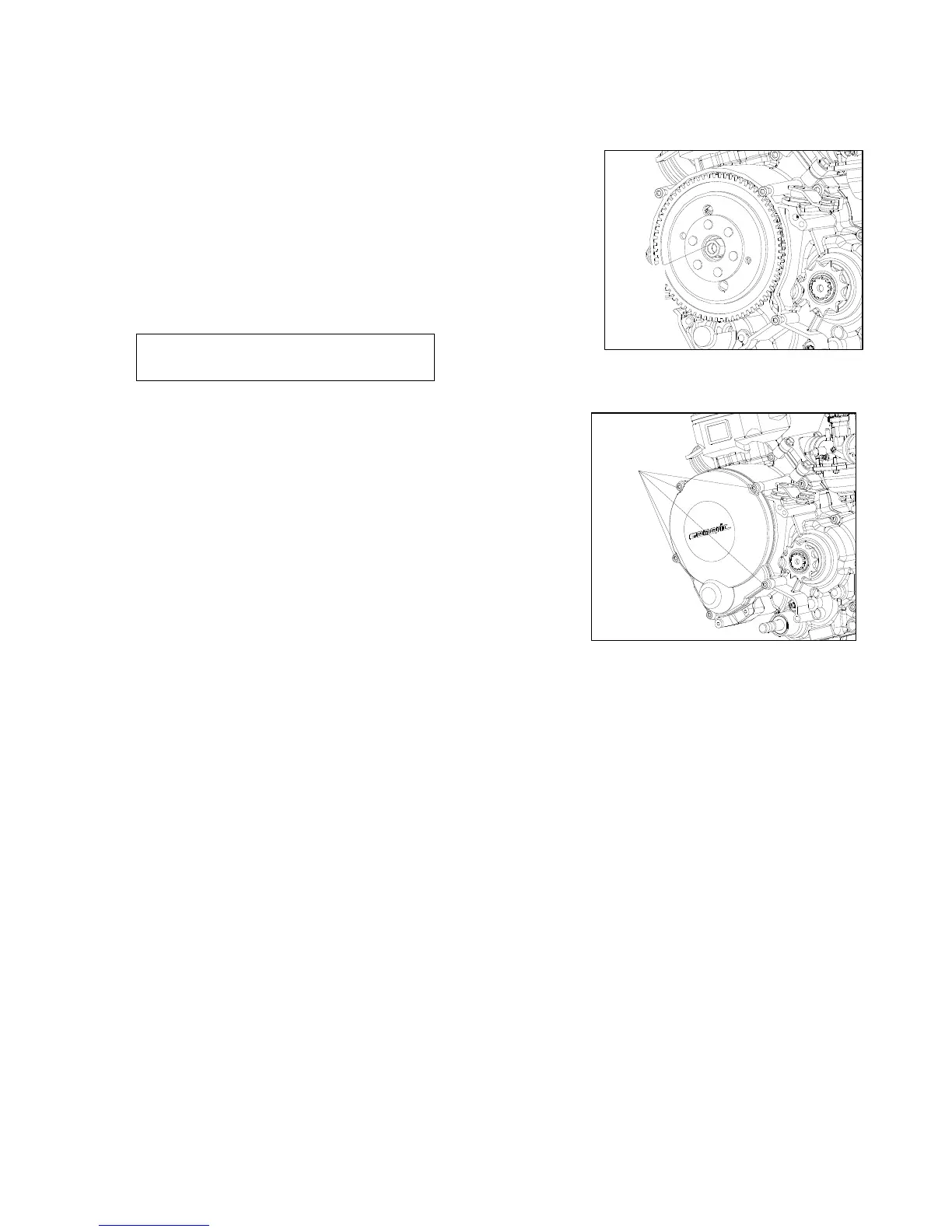

Install the alternator stator onto the engine box.
Connect lead-wire connector alternator.
Clean crankshaft and conical part of flywheel.
Make sure the fixation key is installed into the key slot on the crankshaft.
Align the groove on the flywheel to the fixation key on the crankshaft.
* Attention
There is magnetism on the inner surface of
flywheel, ensure there is no bolt on it.
Fix the flywheel using a universal non-adjustable spanner and then
tighten the locknut.
Torque value: 9.0 N·m
Install protecting plate on the left side.
固定
螺母
Fixed
Nut
螺栓
Bolt
