22

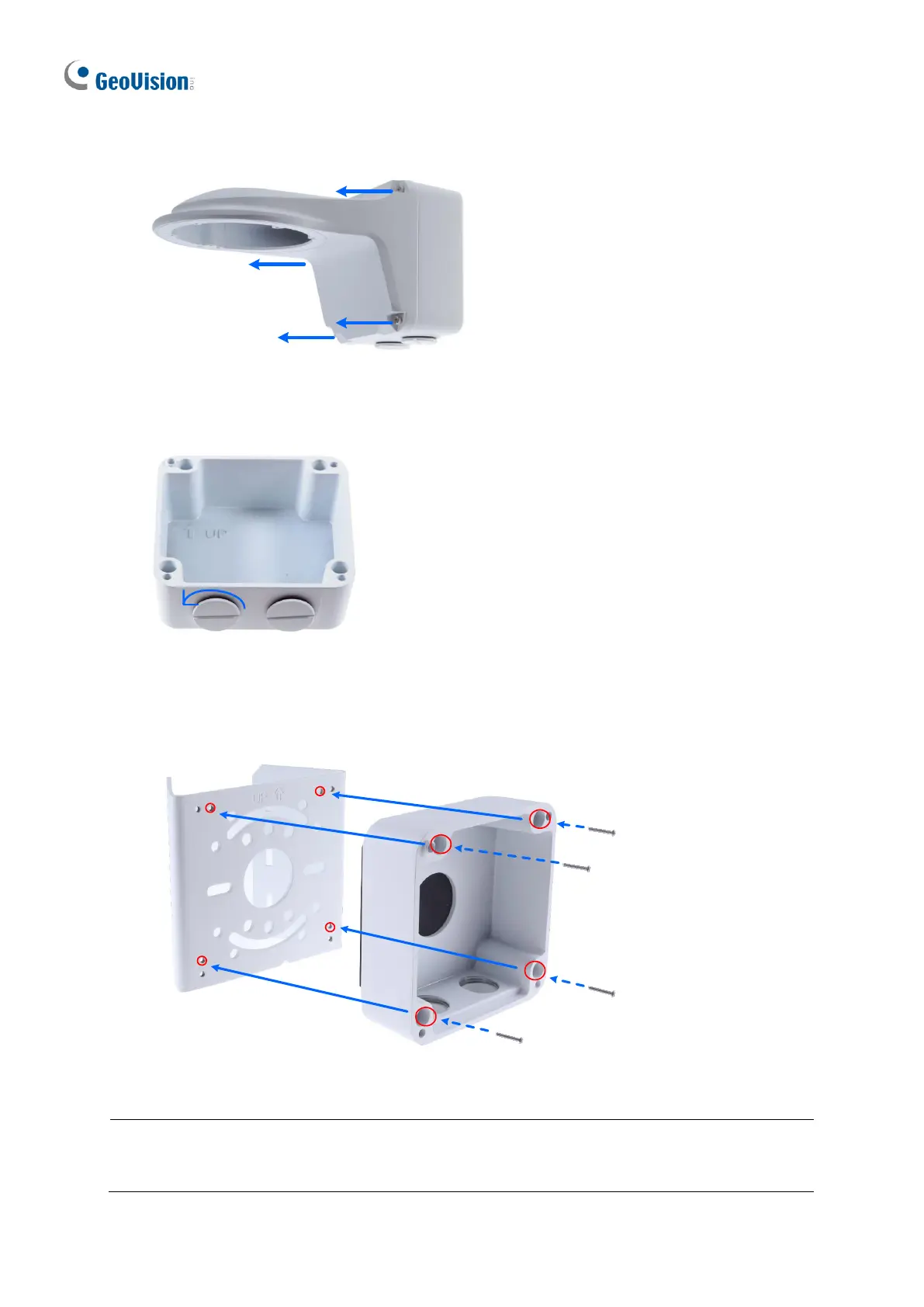

1. Unscrew the bracket.
Figure 1-36
2. Loosen the indicated area by turning it anticlockwise.
Power Box
Figure 1-37
3. Align and attach the power box to the back plate using the 4 supplied M4 screws as
indicated.
Figure 1-38
Note: Make sure the direction of the “up ” indicator on the back plate match that of the
power box.
