GeoVision GV-EBD4813 - GV-Mount420 + GV-Mount211-2

Introduction
73
1
1.4.5.3 GV-Mount420 + GV-Mount211-2
GV-Mount211-2
GV-Mount420

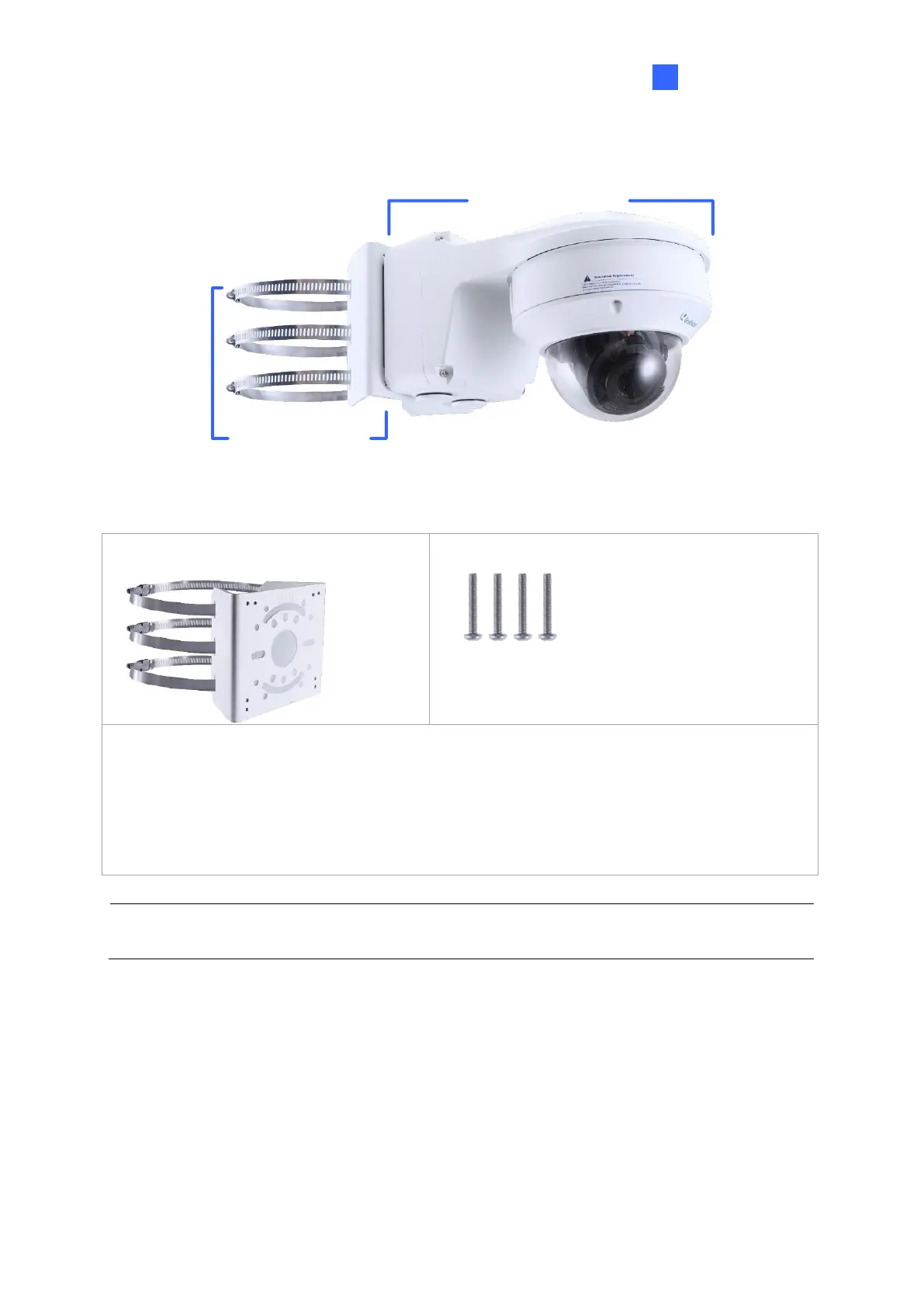

Figure 1-99
GV-Mount420 Packing List
• GV-Mount420
• M4 Screw x 4
• Additional Screw Kit
- M6 Screw x 4
- M6 Nut x 4
- M6 Plain Washer x 4
- M6 Split Washer x 4
Note: For GV-AVD Series, GV-Mount420 can only be used in conjunction with GV-
Mount211-2.
1. Follow Step 1 ~ 4 in 1.1.5.3 GV-Mount420 + GV-Mount211P.
2. Follow Step 2 ~ 8 in 1.4.5.1 GV-Mount211-2.
3. Secure the camera onto the desired pole by tightening the steel straps.
