Introduction
31
1
1.2.4 Installation
The Bullet IP Camera is designed for outdoors. With the standard package, you can install
the camera on the wall or ceiling. Or, you can purchase optional mounting accessories to
mount your camera on a wall.
Below are the instructions for Wall Mount. There are two kinds of Wall Mount: Concealed
Installation and Open Installation. In Concealed Installation, the cables are hidden in the
wall. In Open Installation, the cables are led out from the open slot on the base.
For Concealed Installation

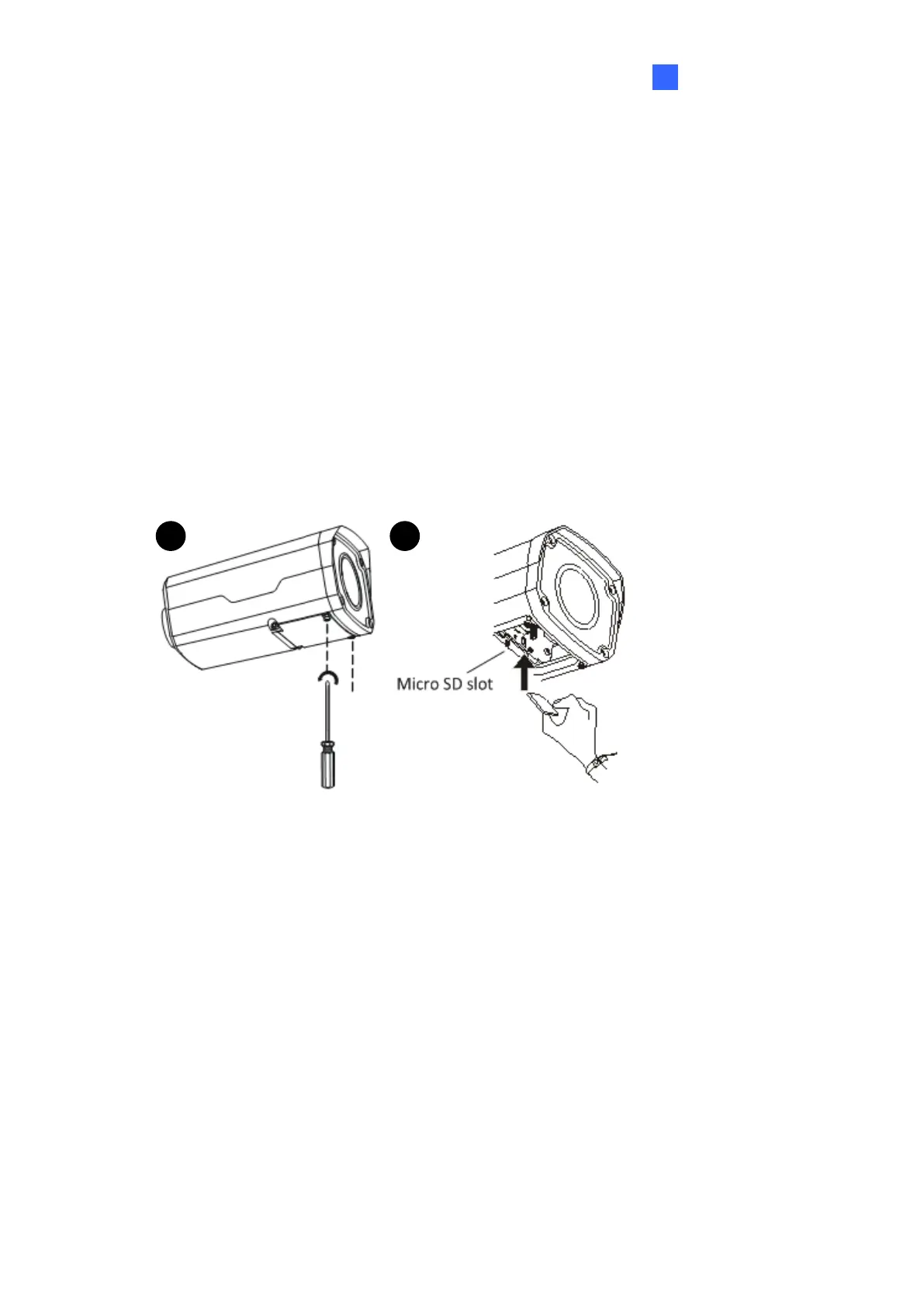

1. For GV-ABL2702 / 4711 / 4712 / 8712, TBL2705 / 4700 / 4705 / 4710 / 4711 / 4810 /
8710 / 8804 / 8810, and BLFC5800, optionally loosen the two screws at the bottom of
the camera to insert a SD card.
A B
Figure 1-46
2. Stick the drill template paster to the wall and align the cross center to the hole in the wall.
