Introduction
33
1

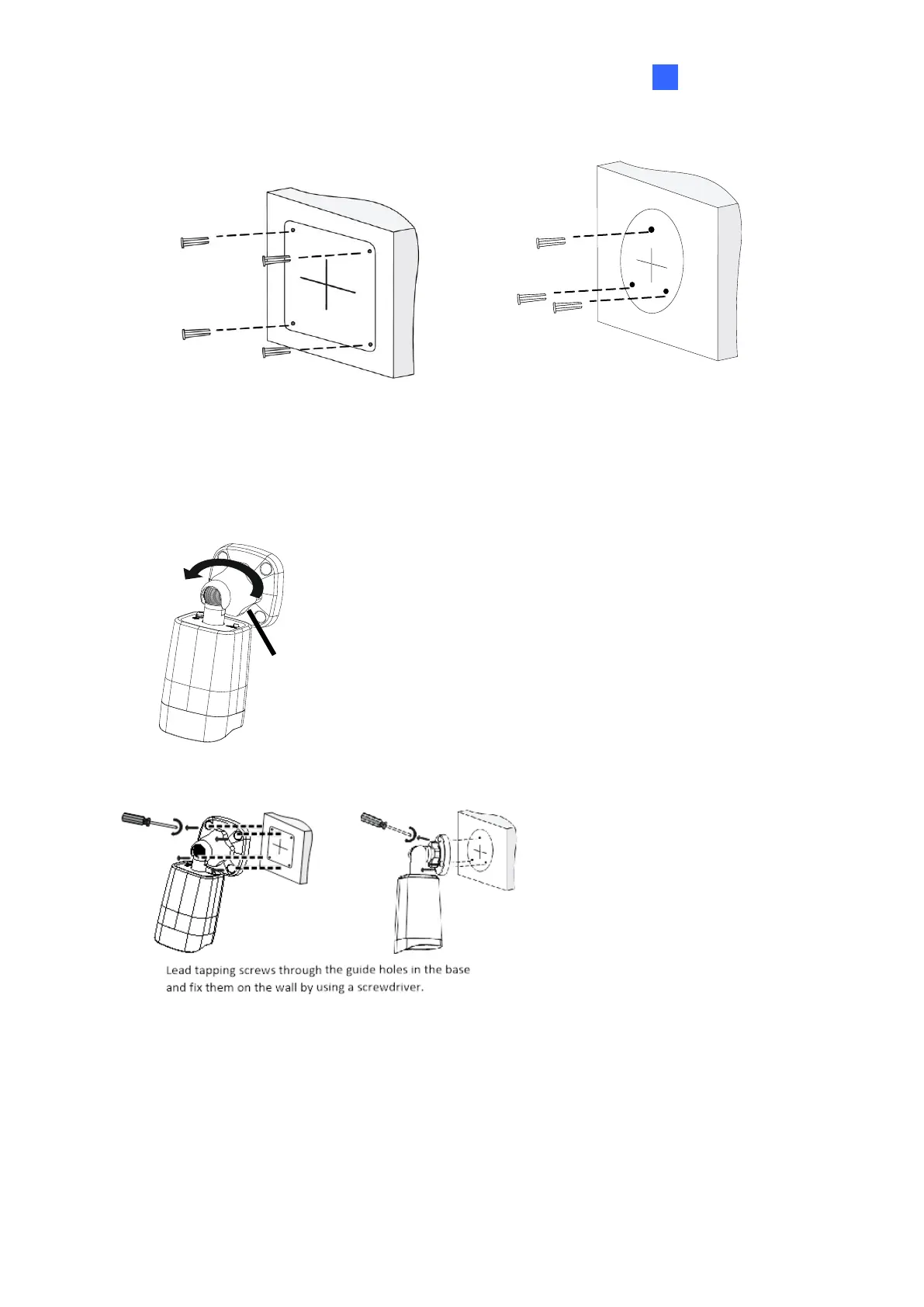

5. Insert the screw anchors.
GV-ABL2702 / 4711 / 4712 / 8712 GV-TBL2705 / 4705 / 8804
TBL4700 / 4710 / 4711 / 4810 / 8710 / 8810
BLFC5800
Figure 1-49
6. Screw the locknut and loosen the universal joint before attaching the camera to the wall.
Locknut
Figure 1-50
7. Secure the camera to the wall and connect all cables.
Figure 1-51
