600 Series Steam Sterilizers
INS 61301607027 Rev A US 4–29
To install the seismic anchoring brackets:
1. Remove the casters:
a. Remove the four bolts that secure the caster to the caster bracket.
b. Remove the mounting screws that secure the caster brackets to
the sterilizer frame.

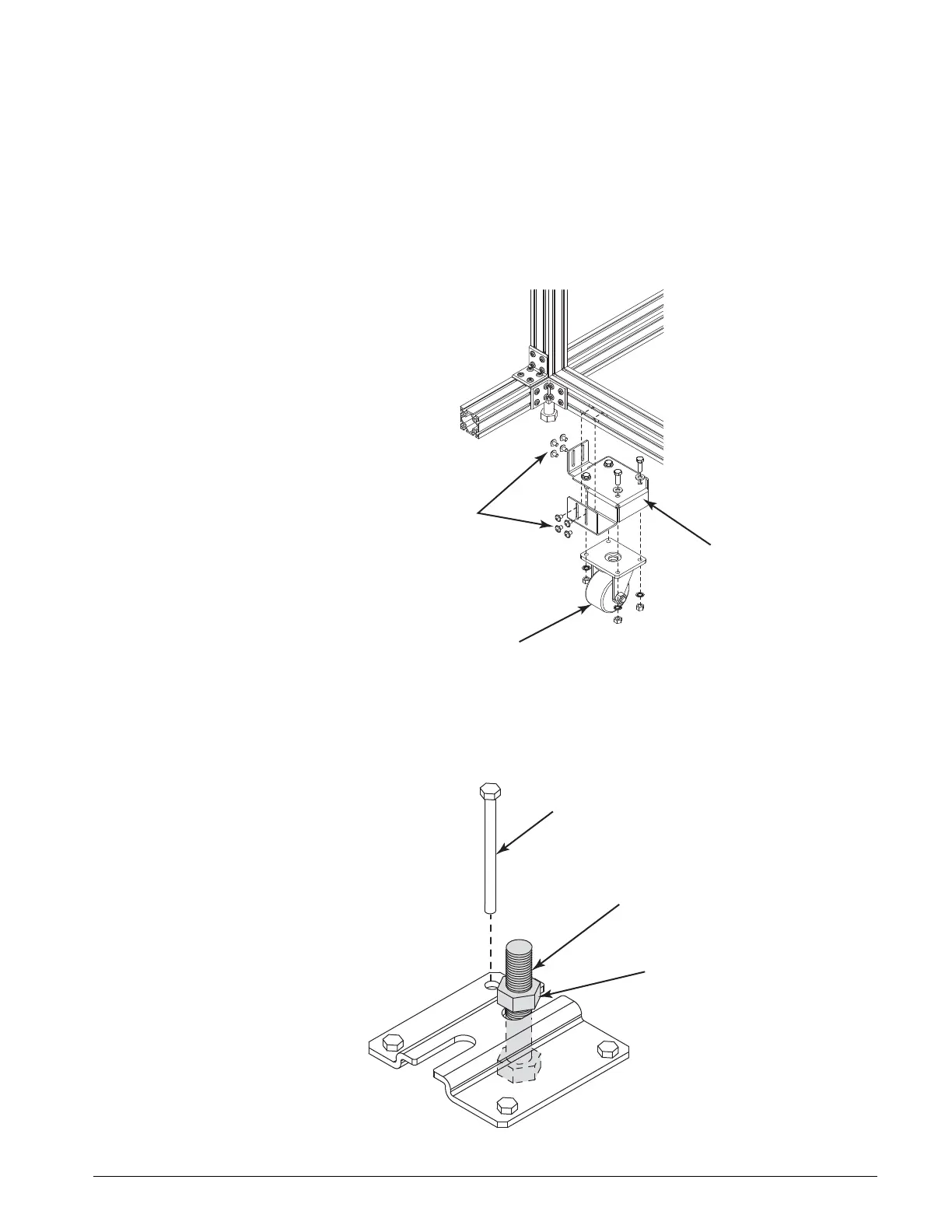

FIGURE 4–26. REMOVING THE CASTERS
2. Position the seismic anchoring bracket on the leveling feet as shown in
Figure 4–27.
FIGURE 4–27. SEISMIC ANCHORING BRACKET INSTALLATION
A07027-C
Caster
Bracket
Caster
Caster Bracket
Hardware
Leveling Bolt
Lock Nut
A07027-S
3/8 in Lag Bolt (16 places)
(see seismic anchorage drawing)
