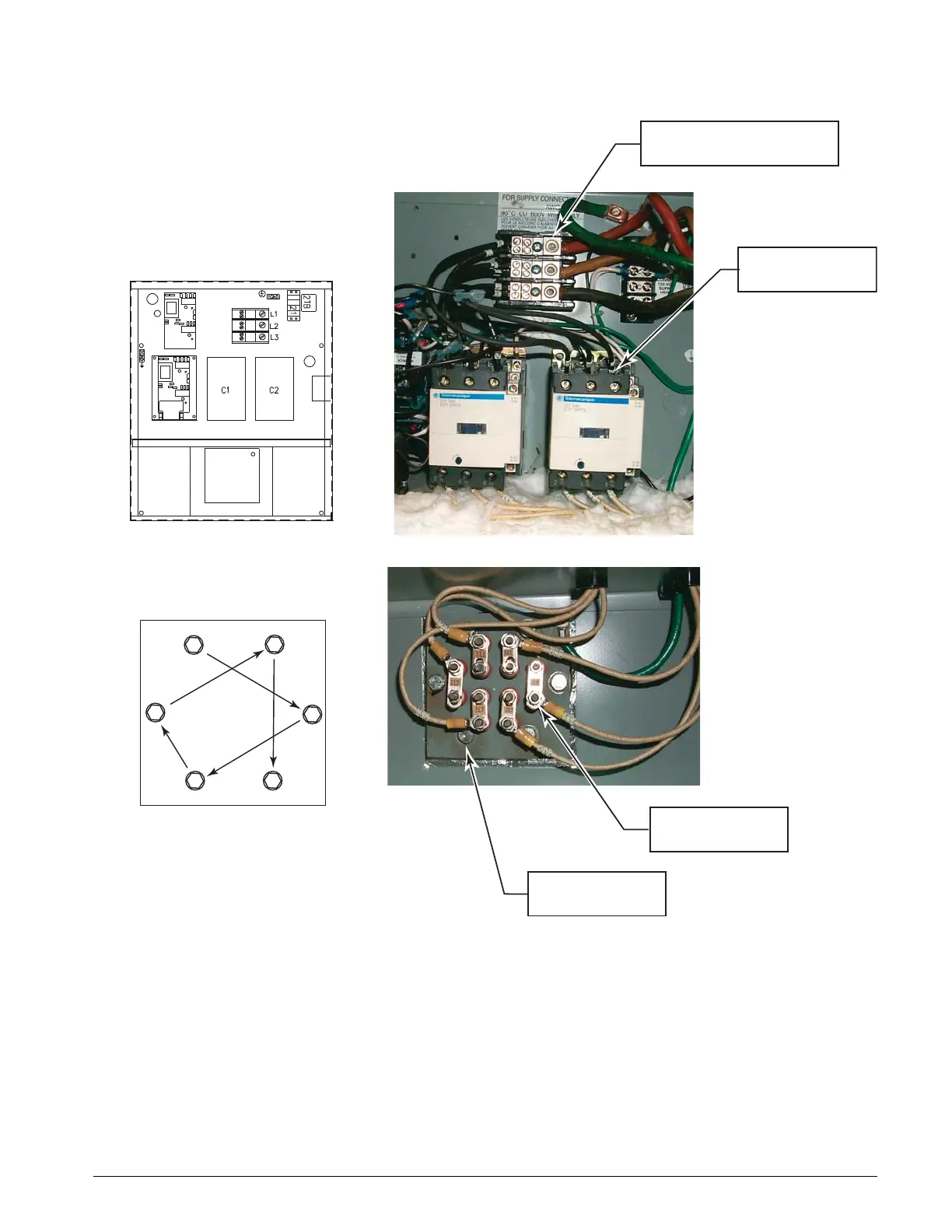

FIGURE 5–4. GTS-30A BOILER TORQUE SPECIFICATIONS
CB-19
Three-Phase Supply Terminals
To r que to 110 in-lbs
Contactor Terminals
To r que to 45 in-lbs
Element Terminals
To r que to 20 in-lbs
Element Flange Bolts
To r que to 22 ft-lbs
1
2
3
4
5
6
FLANGE BOLT TIGHTENING SEQUENCE
(Heating elements not shown for clarity)
ELECTRICAL CABINET
